Checking the load hook

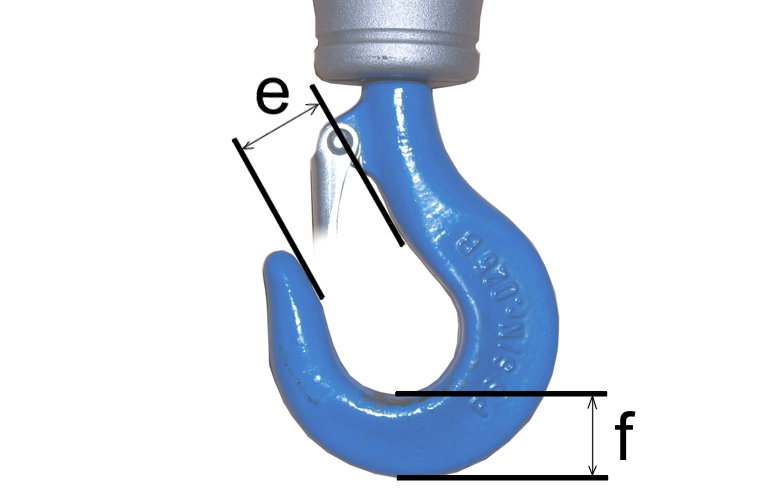

*   Measure the opening width 'e' of the load hook.

*   Measure the base height 'f' of the load hook.

*   The measured values should neither exceed nor fall short of the values in the table.



Size of load hook

Type of load hook

Max. opening width 'e' [mm]

Min. base height 'f' [mm]

Material

05

single

37.4

29.9

34 CrMo 4



*   If the load hook has been widened to a greater degree than is allowed or if the base height is below the permissible limit, replace the load hook.

*   If the load hook is deformed (even if within the measurements given above): Inspect the surface for cracks.
