Compare the operating
voltage and frequency range on the type plate with the mains voltage and
frequency of the local grid. Compare the operating
voltage and frequency range on the type plate with the mains voltage and
frequency of the local grid.
|

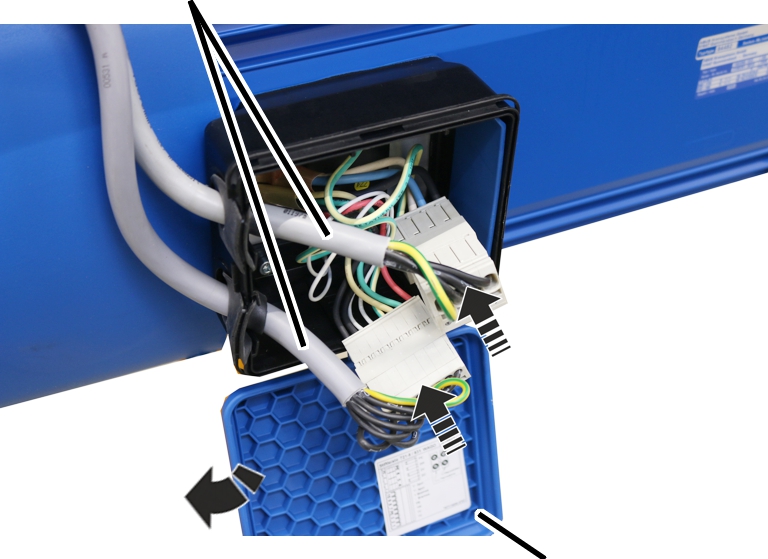

Connection cables of hoist drive |
|
|
| |
|
|
Housing cover |
Open the housing
cover.
Insert the connection
cables for the hoist drive into the pin multipoint connectors on the hoist
drive.
Depending on size and options, the plug-in connections are of different sizes and differently assigned.
Lay the plug-in
connections and connection cable in the connector housing.
Close the housing
cover.
|
Connection cables |
Plug-in connections |
|
| |
|
Screening clamp connection |
|
Open the housing
cover.
Insert the connection
cables for the hoist drive into the pin multipoint connectors on the hoist
drive.
Depending on size and options, the plug-in connections are of different sizes and differently assigned.
Lay the plug-in
connections and connection cable in the connector housing.
Push the front end of the
connection cable into the screening clamp connection.
Fasten the connection
cable to the screening clamp connection using cable ties.
Lay the plug-in
connections and connection cable in the connector housing.
Close the housing
cover.
