Loading and unloading the hoist drive



Observe the following points amongst others:



Only with direct slinging



With direct slinging, the hoist drive is not suspended horizontally. The ABUS assembly aid AN 103574 should be used for assembly on the wire rope hoist.



Eyebolt

Lifting tackle



Hoist drive

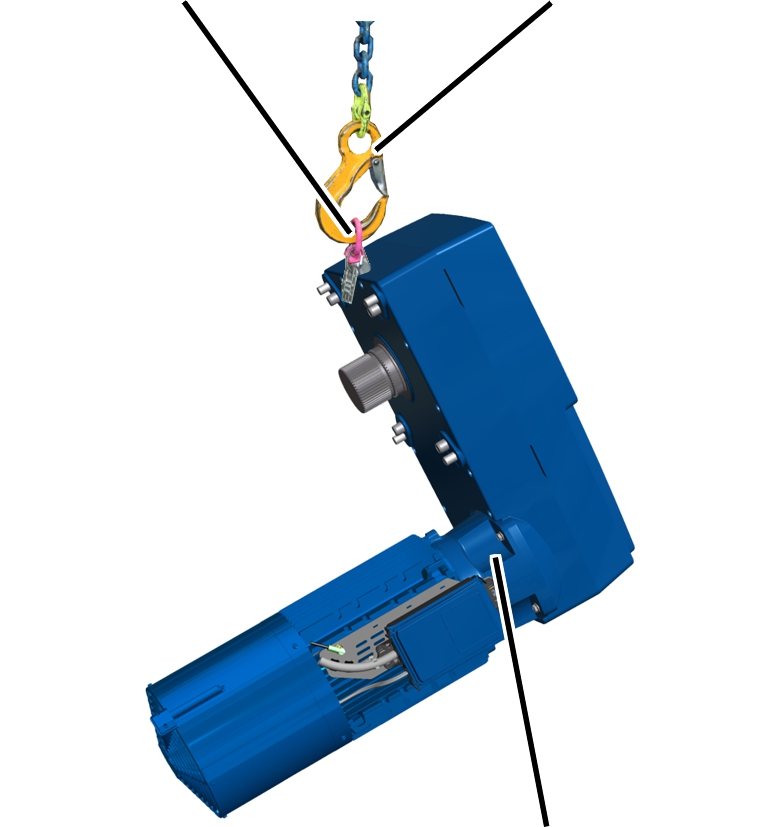

*   Screw suitable eyebolt into the hoist drive.

*   Sling suitable lifting tackle into the eyebolt and lift the hoist drive.

●   The hoist drive is not suspended horizontally.







Only for slinging with assembly aid



*   Screw assembly aid into the hoist drive.

*   Release anti-rotation device, push it against the hoisting gear and screw tight.

*   Sling suitable lifting tackle into the assembly aid and lift the hoist drive.

●   The hoist drive is suspended horizontally.
