Lubricants

Note:

Synthetic lubricants may not be mixed with mineral-based lubricants!

Chain

On-site lubrication with “Chainlife S”, ABUS item number 2717

Lubrication ex works with “Chainlife S”, ABUS item number 2718.

Alternatives:

─ Castrol “Viscogen KL 23”

─ Klüber “Grafloscon CA 901 Ultra Spray”

─ Optimol “KL 23”

─ Shell “Malleus GL 95”

Lubricate the chain during:

─ installation

─ Regular inspection

─ Exchanging the chain and chain sprocket

For details, see page 62.

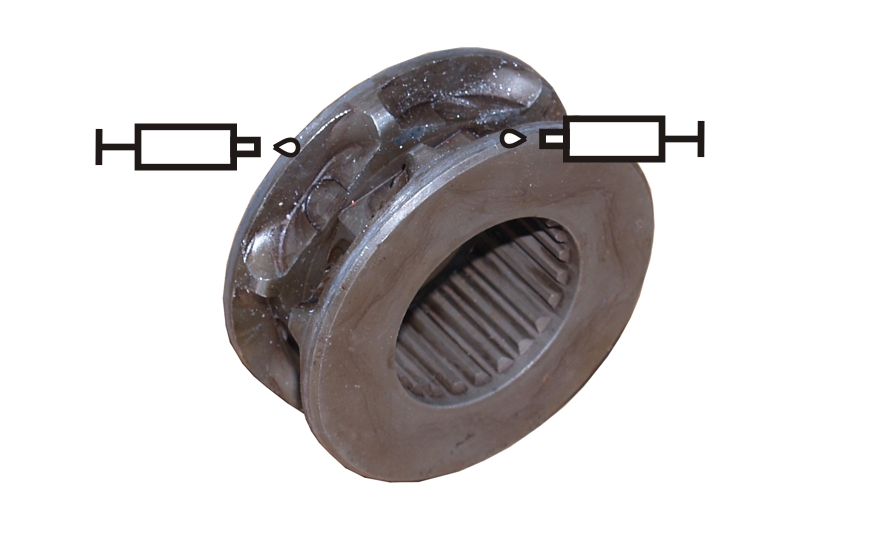

Chain sprocket

On-site lubrication with “High-Lub LT1 EP”, ABUS item number 318490.

Lubrication ex works with “High-Lub LT1 EP”, ABUS item number 317880.

Lubricate the chain sprocket during:

─ Exchanging the chain and chain sprocket

For details, see page 47.

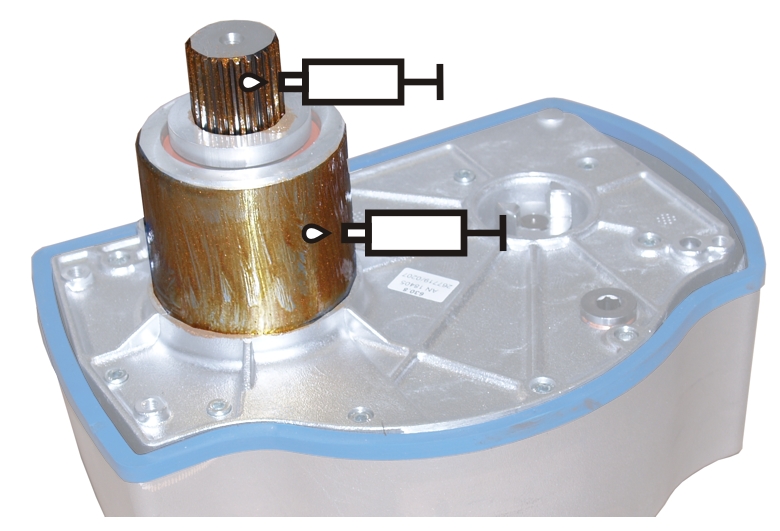

Output shaft on gear unit

On-site lubrication with “High temperature paste PBC 1574”, ABUS item number 6758.

Lubrication ex works with “High temperature paste PBC 1574”, ABUS item number 1571.

Lubricate the output shaft during:

─ Installation of the gear unit

For details, see page 77.

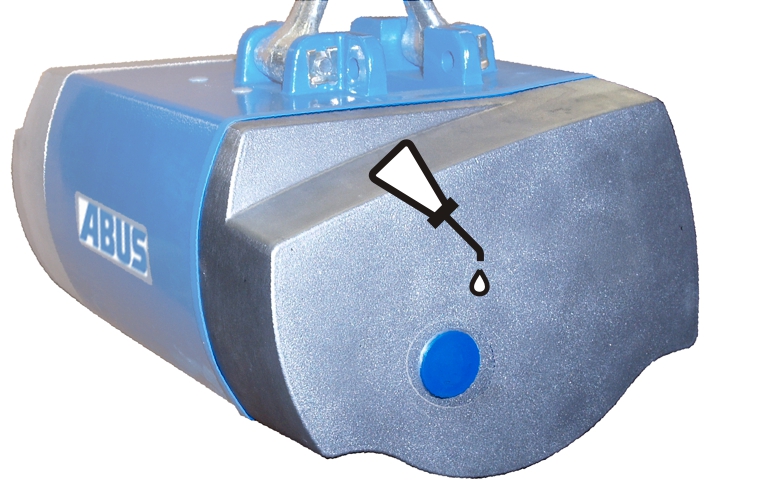

Gear units GM2 and GM4

Lubrication ex works using lubricant with the standard designation CLP ISO VG 460 DIN 51502.

Quantity, GM2: 200 cm³
Quantity, GM4: 350 cm³

The gear unit is lubricated for its entire service life.

Gear unit GM6

Lubrication ex works using lubricant with the standard designation CLP ISO VG 680 DIN 51502.

Quantity: 700 cm³

The gear unit is lubricated for its entire service life.

Gear unit GM8

Lubrication ex works using lubricant with the standard designation CLP ISO VG 680 DIN 51502.

Quantity: 1700 cm³

The gear unit is lubricated for its entire service life.

Only for twin-fall chain hoists

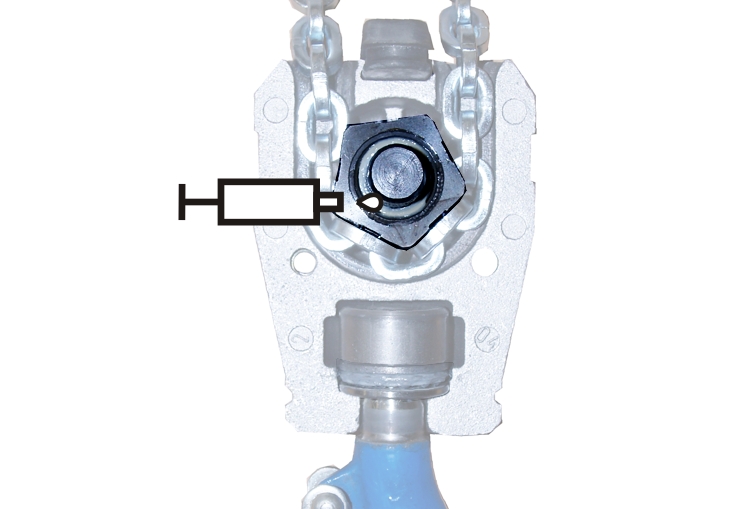

Deflection roller on the bottom block

Lubrication on-site/ex works with “Klüber Staburags NBU 12 Alltemp”, ABUS item number 14980.

Lubricate the deflection roller during:

─ Installation of the bottom block

For details, see page 63.

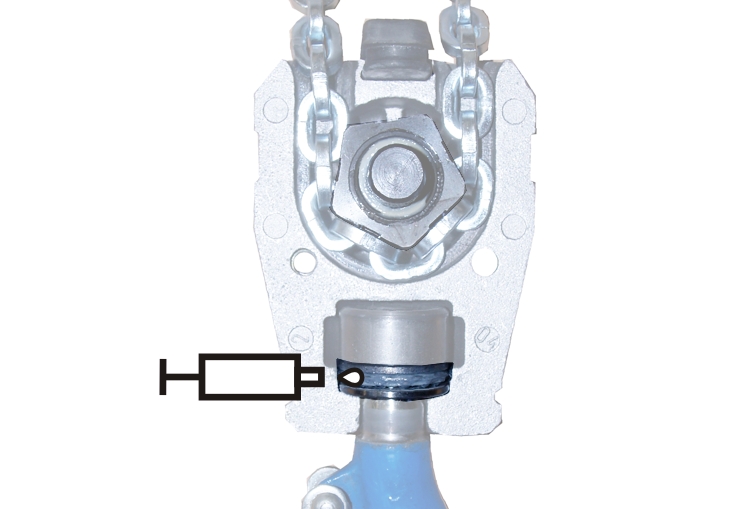

Load hook on the bottom block

On-site lubrication with “High-Lub LT1 EP”, ABUS item number 318490.

Lubrication ex works with “High-Lub LT1 EP”, ABUS item number 317880.

Lubricate the load hook during:

─ Installation of the bottom block

For details, see page 63.

Only for single-fall chain hoists

Hook assembly

On-site lubrication with “High-Lub LT1 EP”, ABUS item number 318490.

Lubrication ex works with “High-Lub LT1 EP”, ABUS item number 317880.

Lubricate the hook assembly during:

─ Exchanging the chain and chain sprocket

For details, see page 52.
