Only with a suspension hook or safety load hook
This step only applies if a suspension hook is used instead of a suspension bracket or if a safety load hook is used instead of a normal load hook.
|
|

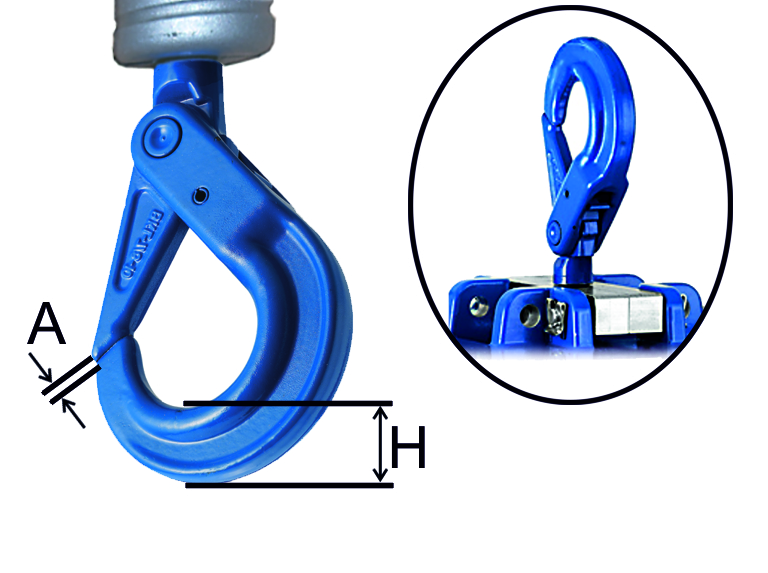

Safety load hooks (left) and suspension hooks (right) are tested according to the same procedure.
Measure the base height ‘H’ of the suspension hook or safety load
hook.
Measure the gap ‘A’ between the hook safety latch and the hook
body.
Measure the lateral displacement ‘B’ between the hook safety latch
and the hook body.
The measured values should neither exceed nor fall short of the
values in the table.
|
Size of load hook |
Maximum gap ‘A’ [mm] |
Maximum lateral displacement ‘B’ [mm] |
Minimum base height ‘H’ [mm] |
|
BKT 6-10 |
2.2 |
3.5 |
17.1 |
|
BKT 7-10/8 |
2.7 |
4.5 |
20.7 |
|
BKT 10-10 |
3 |
6 |
26.1 |
|
BKT 13-10 |
3.3 |
7 |
34.2 |
If the load hook has been widened to a greater degree than is allowed
or if the base height is below the permissible limit, replace the load hook.
