Remove the suspension bracket. See page 14.

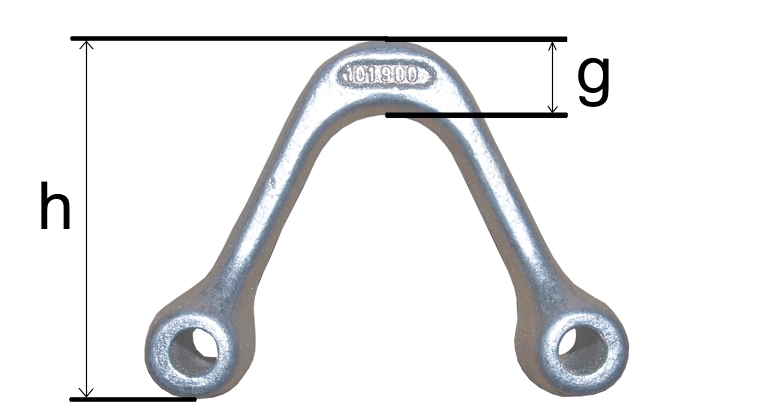

Measure the bracket height ‘h’ of the
suspension bracket.
Depending on the bracket height ‘h’, select the appropriate row in
the table.
Measure the bracket thickness ‘g’ of the suspension bracket.
The measured value ‘g’ must not be below the value ‘g’ in the
table.
|
Bracket height ‘h’ |
Min. bracket thickness ‘g’ |
Size |
|
87 mm |
18 mm |
GM2 |
|
97 mm |
18 mm |
GM4 |
|
90 mm |
22.8 mm |
GM6 |
|
132 mm |
22.8 mm |
GM6 |
|
138 mm |
26.6 mm |
GM8 |
|
173 mm |
31.3 mm |
GM8 |
If the bracket thickness is thinner than is allowed, replace the
suspension bracket.
