The sheath of the control cable serves to protect the wiring while also acting as a strain reliever. Therefore do not simply wind up the control cable and glue the ends together to shorten it. This would eliminate any function as a strain reliever.

   To shorten the control cable, use the kit for shortening the control cable sheath, AN 308859.

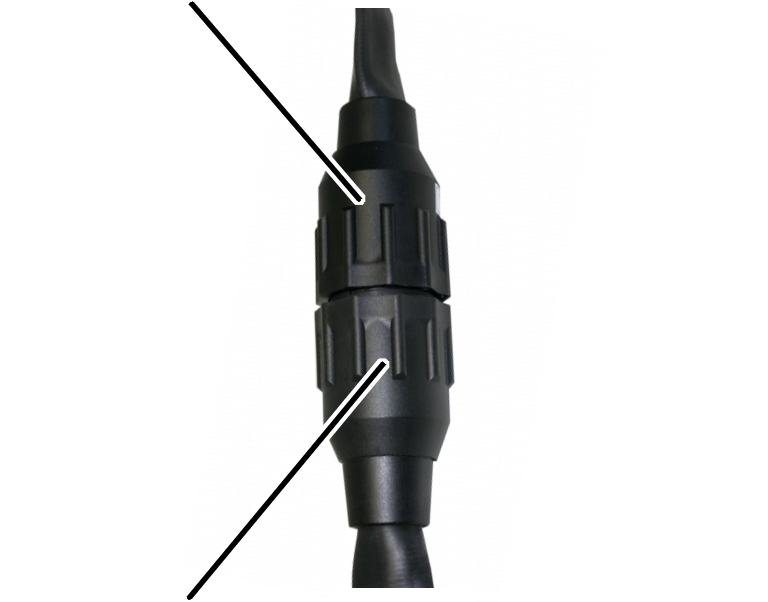

   To lengthen the control cable, use the kit for lengthening the control cable sheath, AN 102282.

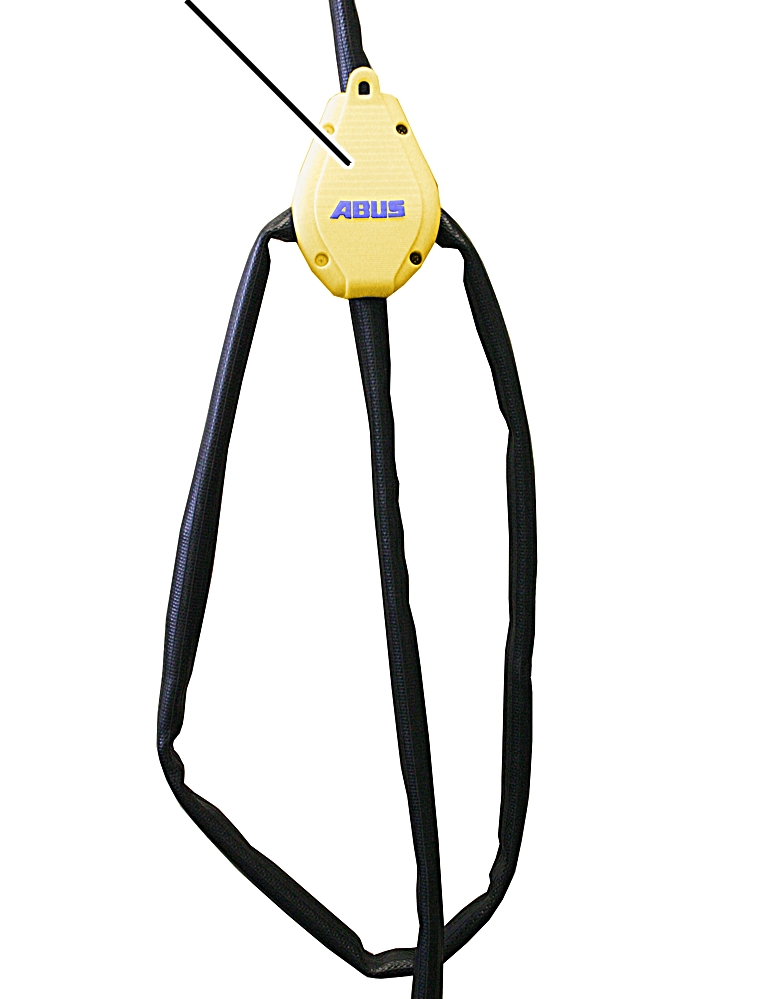

The sheath of the control cable serves to protect the wiring while also acting as a strain reliever. In some cases it can be useful to install an additional strain relief.

   Use the kit for strain relief, AN 109795 for additional strain relief.

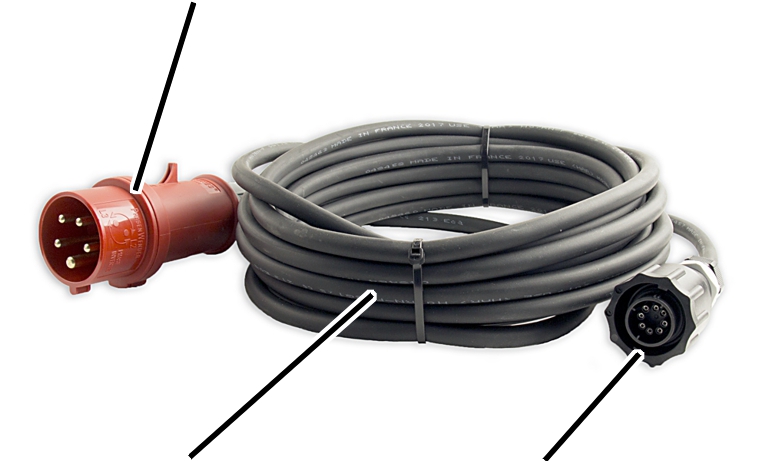

   To connect the chain hoist, for example, use the set “Chain hoist connection cable” AN 316482.

   If necessary, reverse the phases with the phase inverter in the CEE connector. See the subsection “Checking the rotary field” in the main section “Connecting the crane to the mains supply” of the “General Product Manual for ABUS Cranes”.
