Description of the device

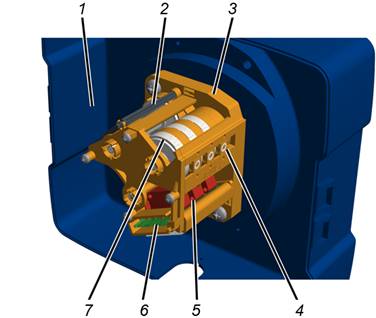

Gear limit switch



─     1: Hoist limit switch enclosure on the cable drum

─     2: Adjusting key

─     3: Gear limit switch

─     4: Adjusting screw

─     5: Microswitch

─     6: Connection to cam switch PCB

─     7: Cam ring

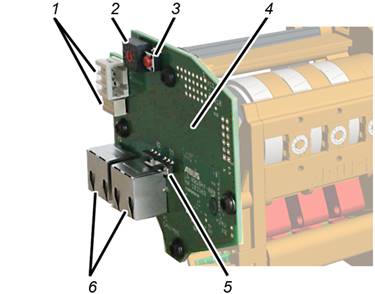

Absolute rotary encoder



─     1: Relay and pin multipoint connector for additional switching tasks (option)

─     2: Rotary switch for device address (option)

─     3: Button for resetting the device address

─     4: Circuit board

─     5: Switch for terminating resistor

─     6: Connection for CAN bus network and Modbus network
