Danger from falling components!
The crane can fall and kill or injure people if it is not correctly attached and lifted. Attachment and loading should only be carried out by trained persons.
|
|
Danger from falling components! The crane can fall and kill or injure people if it is not correctly attached and lifted. Attachment and loading should only be carried out by trained persons. |
Observe the following points amongst others:
|
| |
|

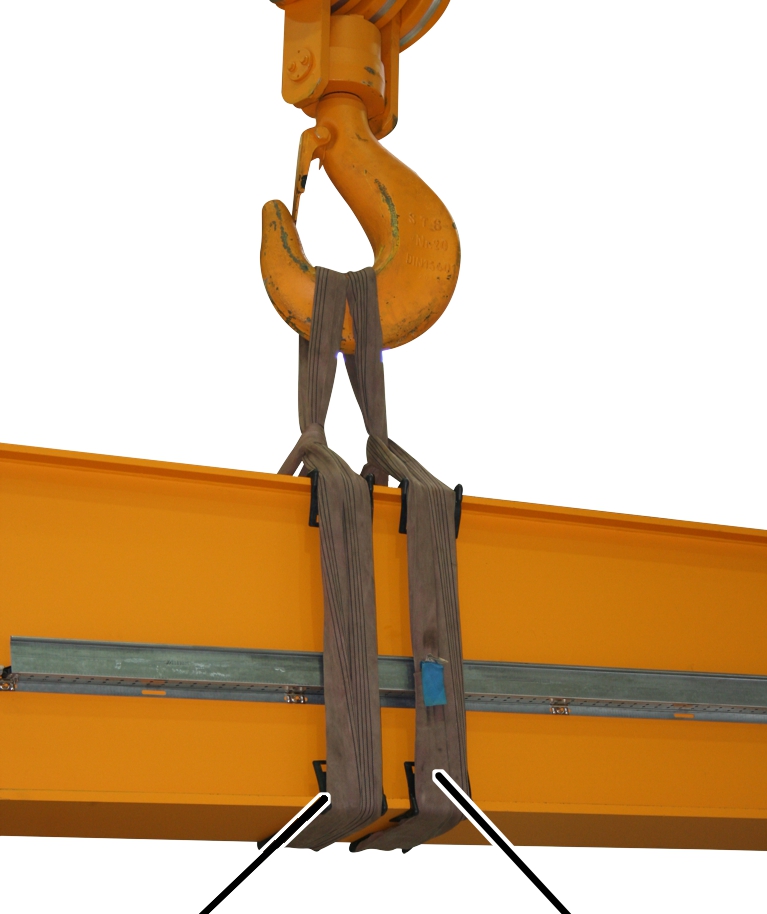

Edge protection |
Lifting tackle |
Place
suitable lifting tackle around the main girders.
Cover all edges of the main
girder with suitable edge protection.
|
|

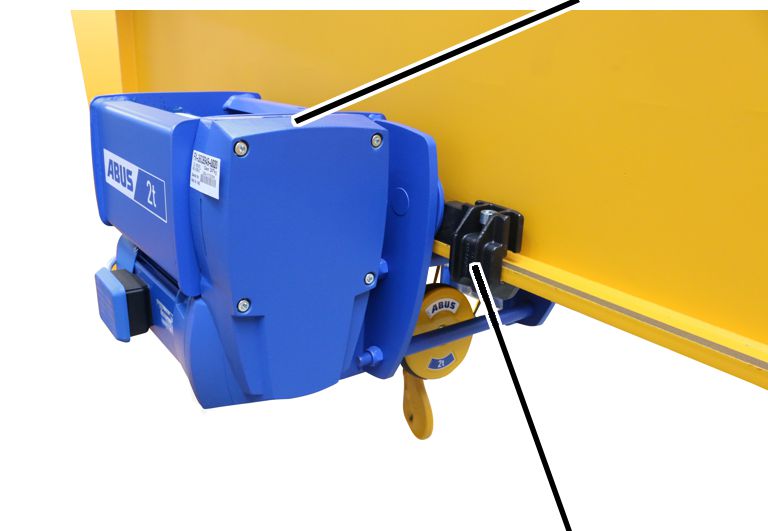

Trolley |
|
| |
|
|
Additional clamping buffer |
Adjust the trolley or lifting
tackle in such a way that the main girder hangs straight when it is lifted.
Secure the trolleys with
clamping buffers so that they do not slip on lifting.
If the profile rails (in which the energy chain is) protrude to the
side, lay wooden beams (wider than the profile rails) over the profile rails so
that they are not damaged on lifting.
Set down the main girders on
stands which have sufficient load capacity.
With the trolley installed underneath the main girder: The stands must be at least high enough that the rope is not buckled or pinched. Ideally, the stands should be high enough that the trolley load hook hangs freely.
