If the wheel is damaged or worn, it must be replaced by a new wheel.
The figures show the assembly of a size 130 wheel. The mounting of larger wheels does not essentially differ from this.
|
Bearing flange |
| |
Bearing bolt |
Wheel |
Clamp

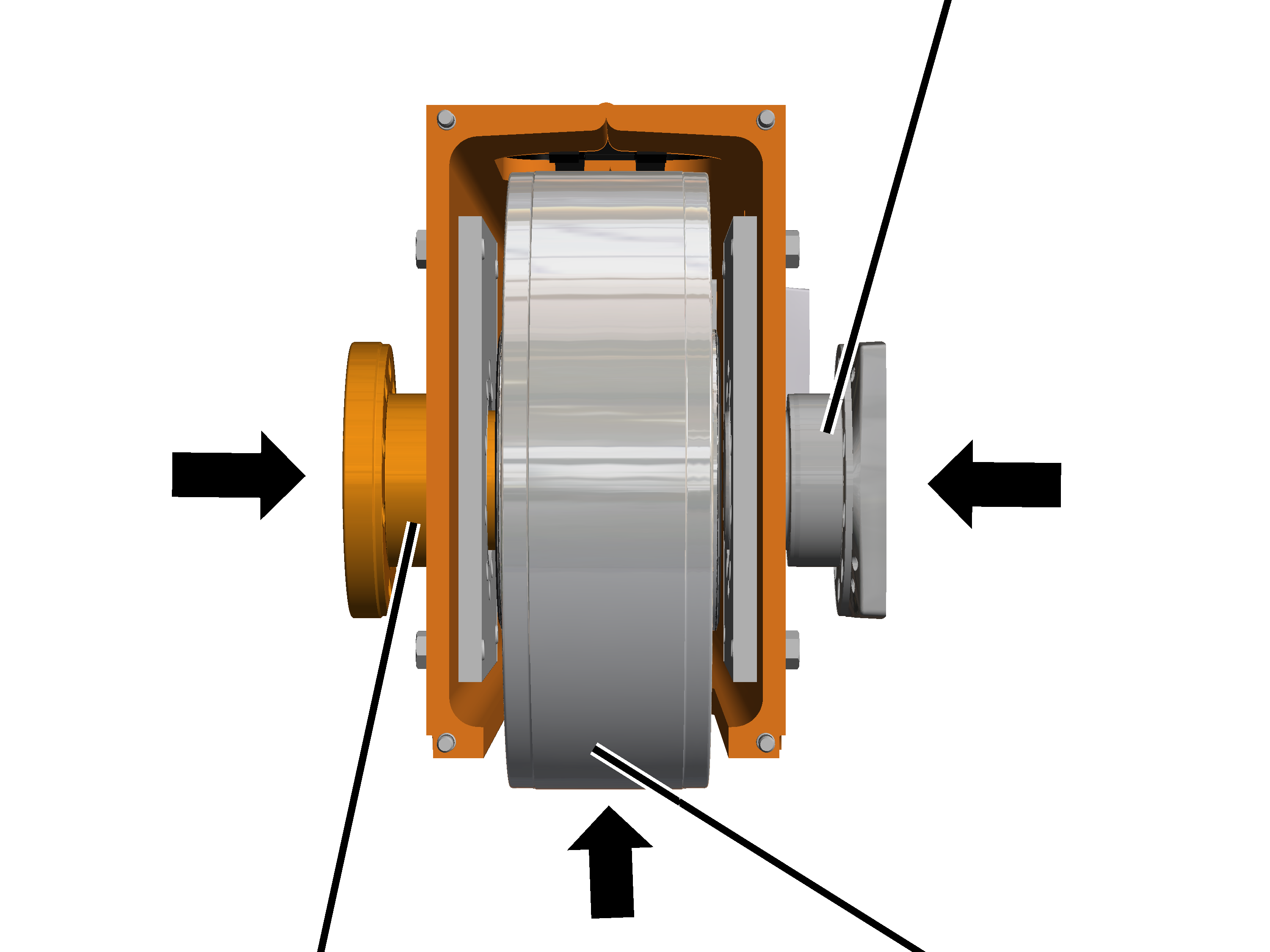

the wheel in the end carriage. It does not matter which side faces inwards or
outwards.
Insert the bearing bolt and
bearing flange. If necessary, lightly hammer the bearing bolt and bearing
flange.
Retaining screw |
| |
| ||
|
Rib screws |

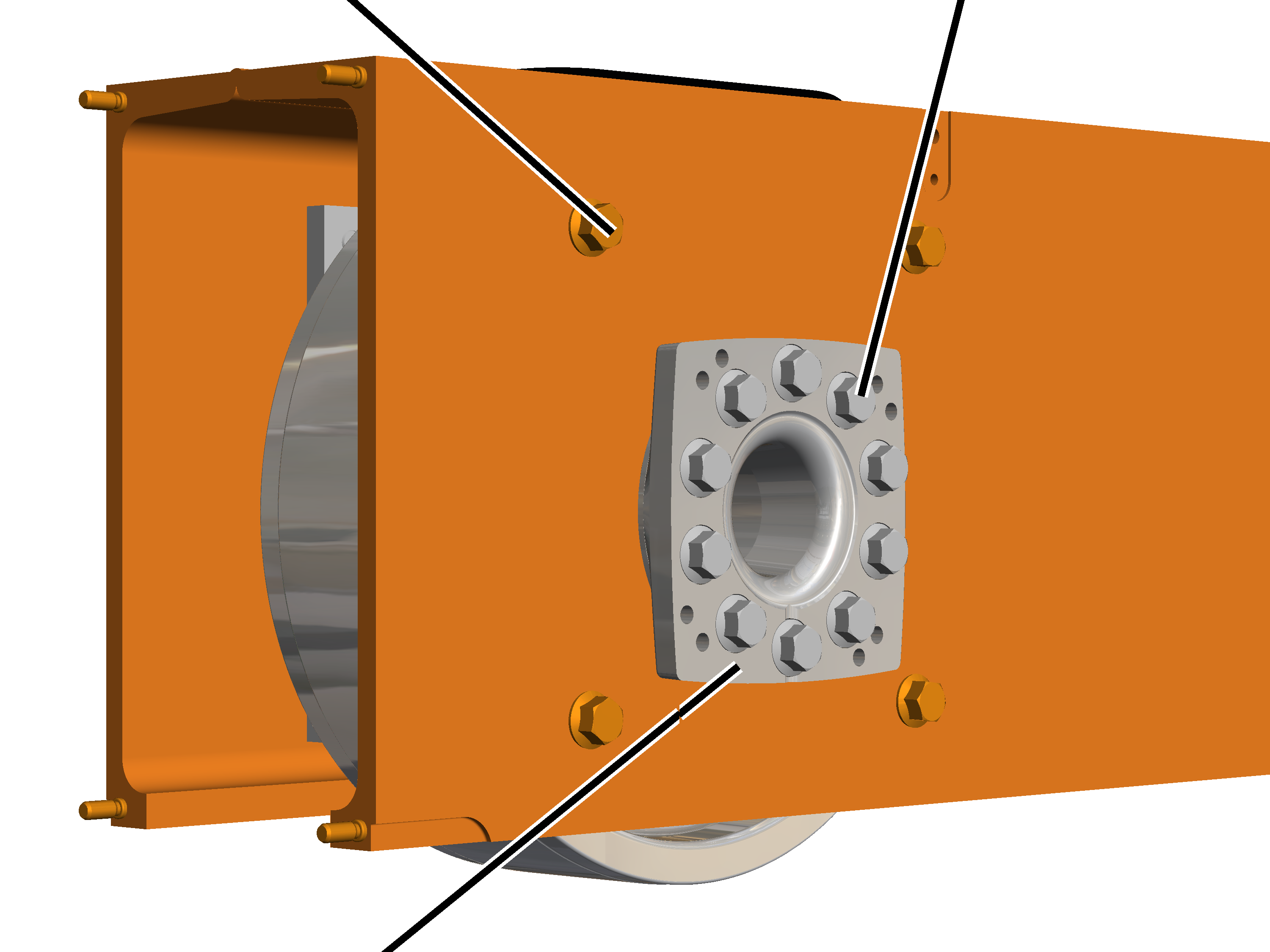

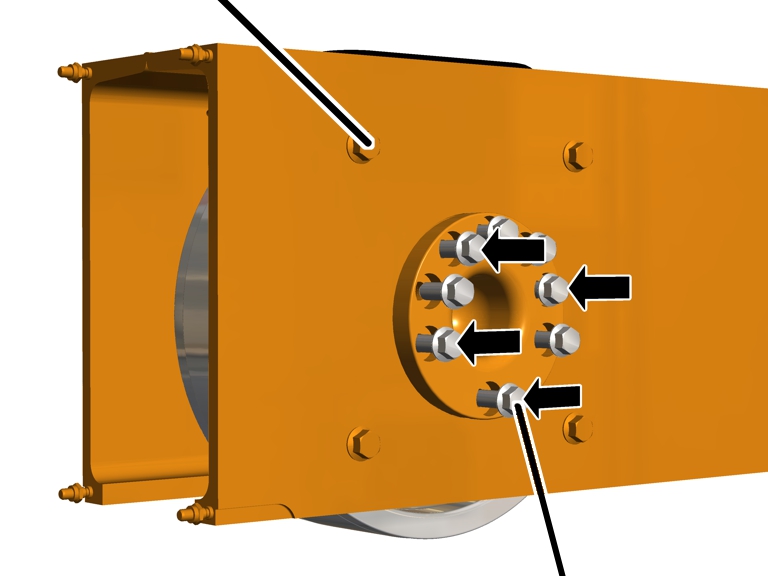

Tighten the rib screws in
stages.
Wheel Ø |
Strength category |
Number |
Type |
Tightening torque |
130 |
10.9 |
7x |
M8x25 |
42 Nm |
160 |
10.9 |
7x |
M8x25 |
42 Nm |
200 |
10.9 |
7x |
M10x30 |
85 Nm |
280 |
10.9 |
7x |
M12x40 |
130 Nm |
350 |
10.9 |
10x |
M12x40 |
130 Nm |
420 with crane travel drive 420 |
10.9 |
10x |
M16x40 |
330 Nm |
420 with crane travel drive 420 V |
10.9 |
10x |
M16x70 |
330 Nm |
This work step only applies if an end carriage size 420 is to be installed with a crane travel drive size 420 V.

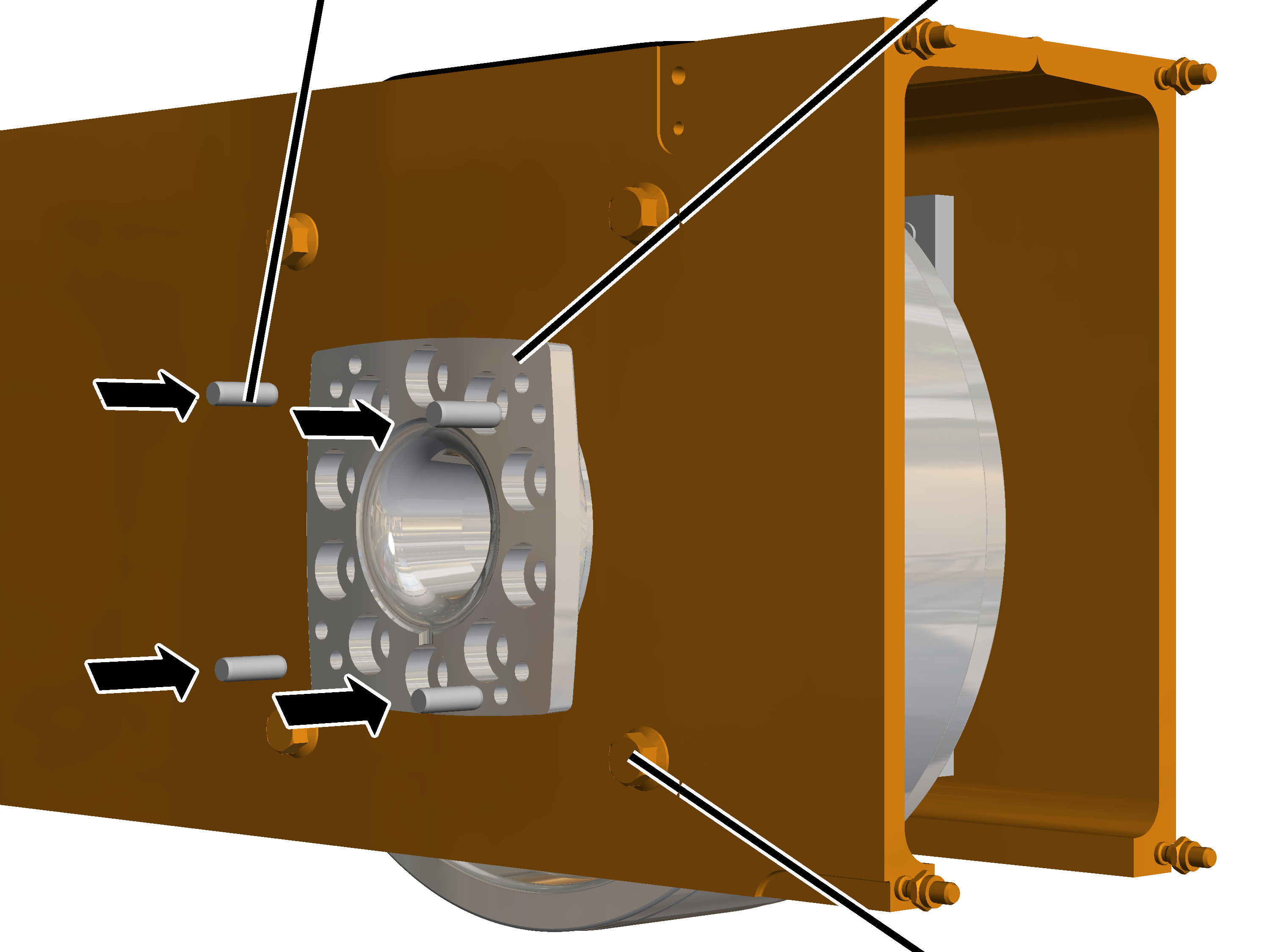

Pin |
Bearing flange | |
| ||
|
Retaining screw | |
If
necessary: Insert the pins (4x) in the bearing flange.
Retaining screw |
Bearing flange | |
| ||
Pin |
Adapter | |
Turn
the adapter to match the hole pattern.

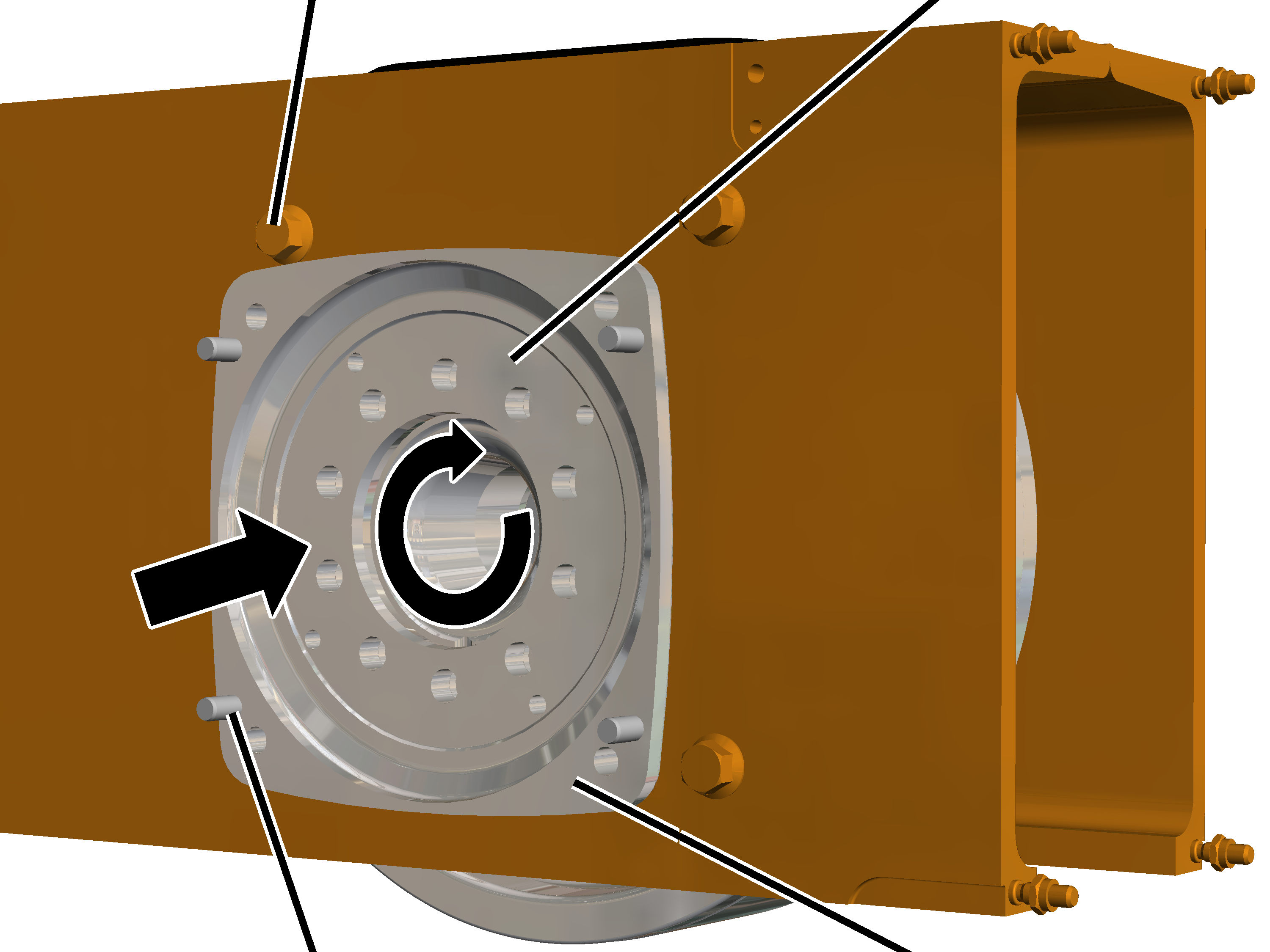

Place the adapter on the pins on
the bearing flange.

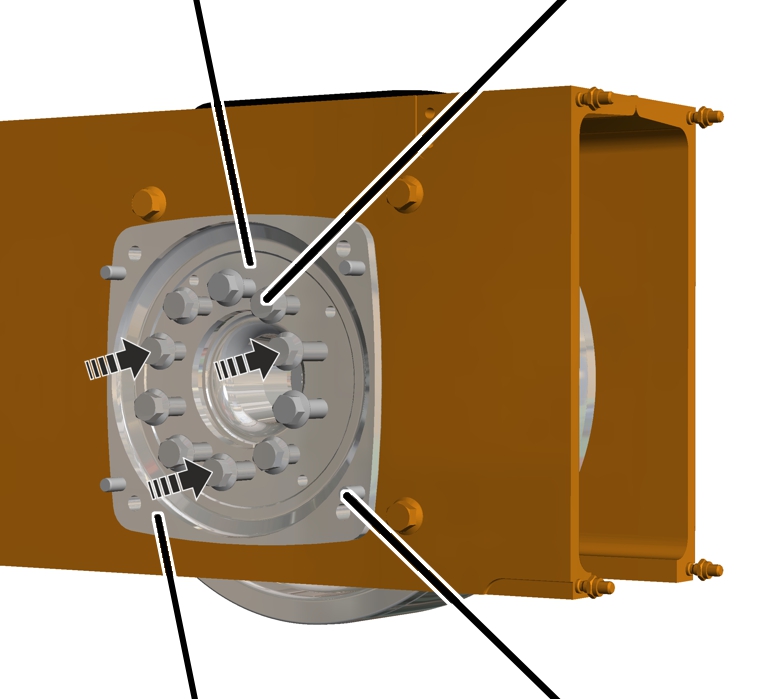

Bearing flange |
Rib screws | |
| ||
Adapter |
Pins | |
Insert the rib screws M16x70 (10x) through the adapter
and bearing flange.
Retaining screw |
Rib screws |
| |
Bearing flange |
|
Tighten the rib screws in stages.
Strength category |
Number |
Type |
Tightening torque | |
130 |
10.9 |
7x |
M8x25 |
42 Nm |
160 |
10.9 |
7x |
M8x25 |
42 Nm |
200 |
10.9 |
7x |
M10x30 |
85 Nm |
280 |
10.9 |
7x |
M12x40 |
130 Nm |
350 |
10.9 |
10x |
M12x40 |
130 Nm |
420 with crane travel drive 420 |
10.9 |
10x |
M16x40 |
330 Nm |
420 with crane travel drive 420 V |
10.9 |
10x |
M16x70 |
330 Nm |
Wheel |
Screw M20 | |
| ||
Clamping element |
Large side | |
Clean the joining surfaces.
The joining surfaces must be free of paint, grease and oil!
Insert the derailing protection
device.
Tighten screws (2x).
Wheel Ø |
Type |
Kind |
Tightening torque |
130 |
M8x45 |
Rib screw |
42 Nm |
160 |
M10x50 |
Rib screw |
85 Nm |
200 |
M10x50 |
Rib screw |
85 Nm |
M12x60 |
Hexagon head screw |
130 Nm | |
350 |
M20x75 |
Hexagon head screw |
300 Nm |
420 |
M20x75 |
Hexagon head screw |
300 Nm |
Wheel |
Screw M20 | |
| ||
Clamping element |
Large side | |
Clean the joining surfaces.
The joining surfaces must be free of paint, grease and oil!
Tighten screws (2x).
Wheel Ø |
Type |
Kind |
Tightening torque |
130 |
M8x45 |
Rib screw |
42 Nm |
160 |
M10x50 |
Rib screw |
85 Nm |
200 |
M10x50 |
Rib screw |
85 Nm |
280 |
M12x60 |
Hexagon head screw |
130 Nm |
350 |
M20x75 |
Hexagon head screw |
300 Nm |
420 |
M20x75 |
Hexagon head screw |
300 Nm |

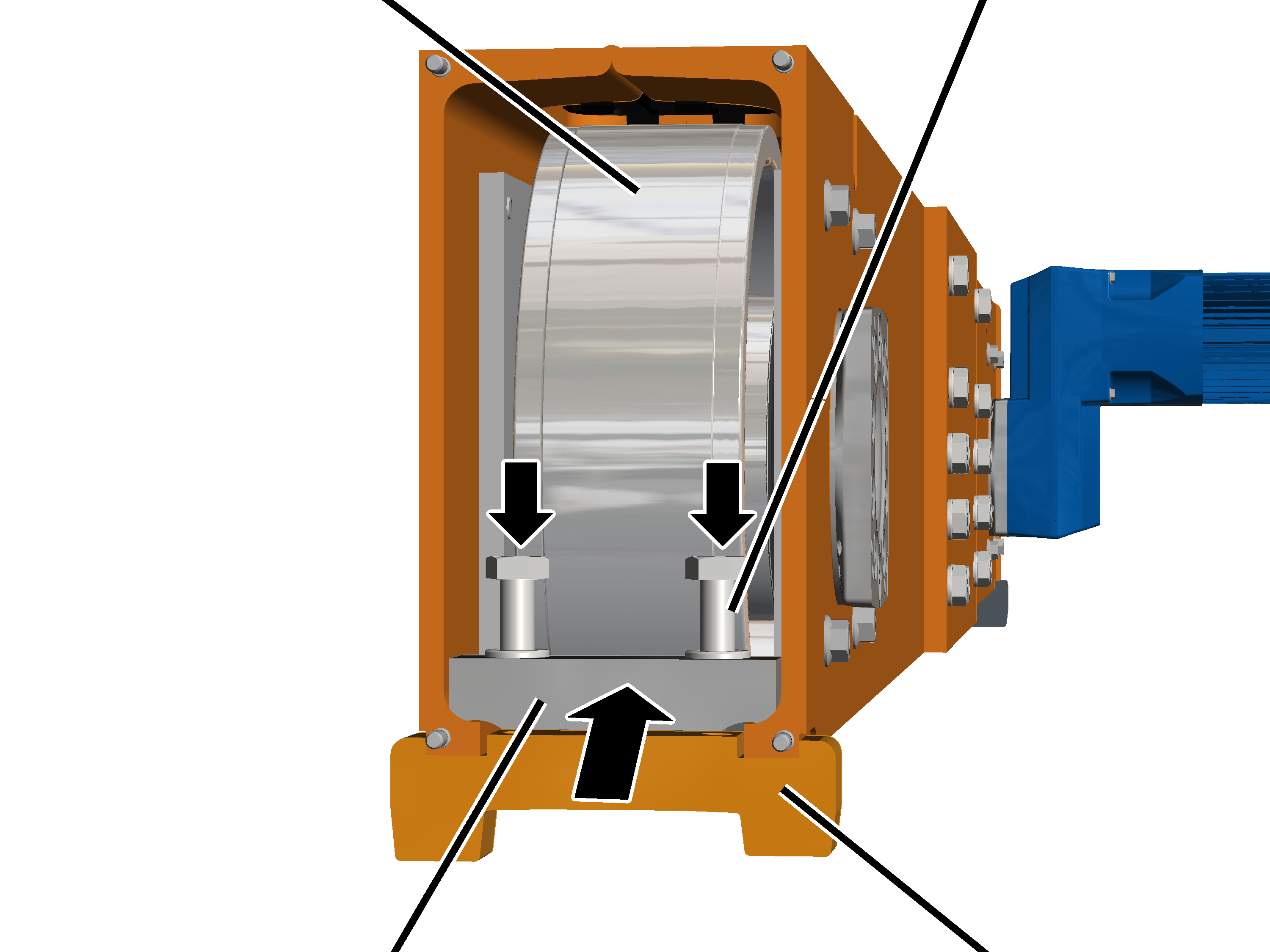

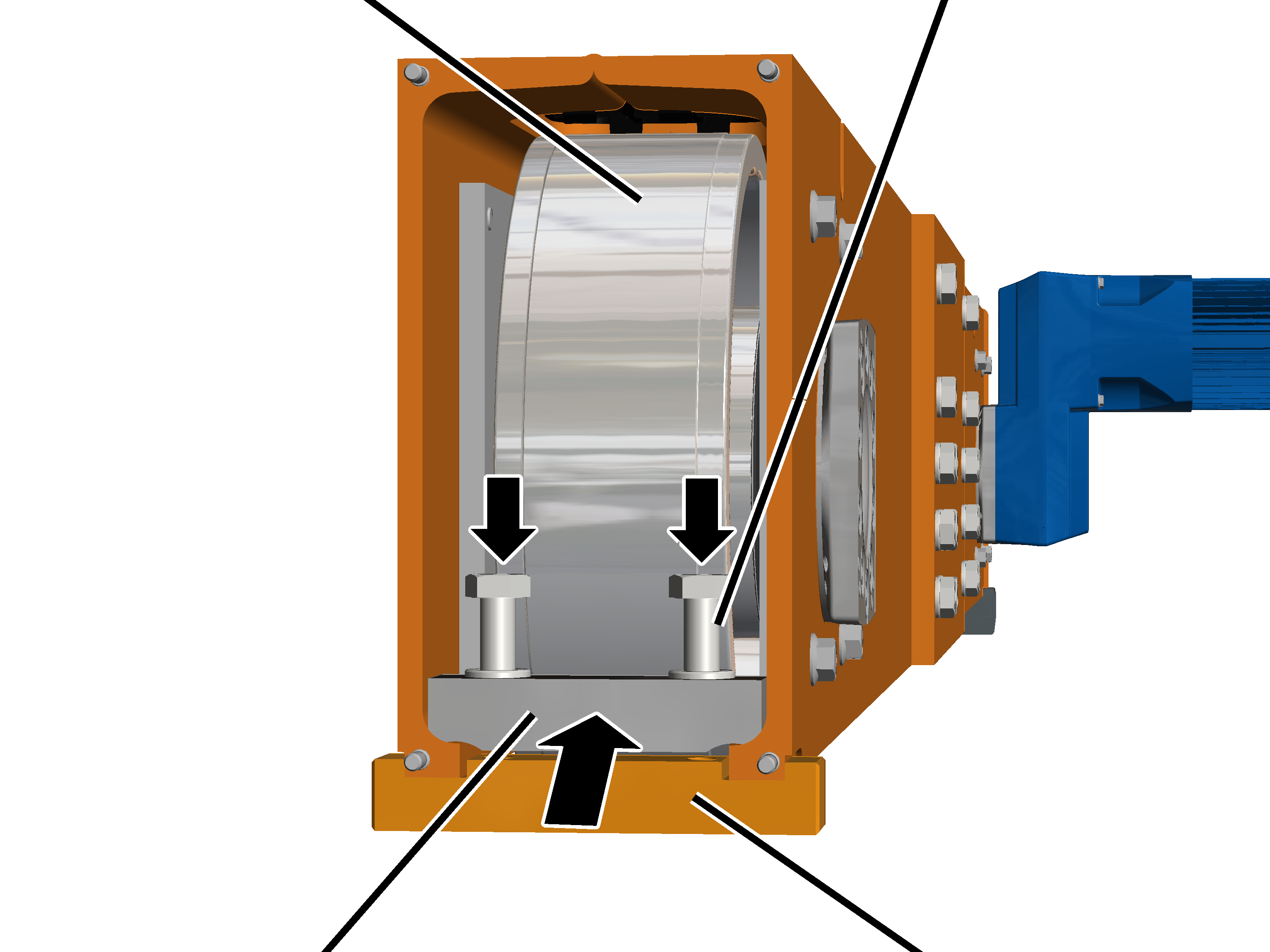

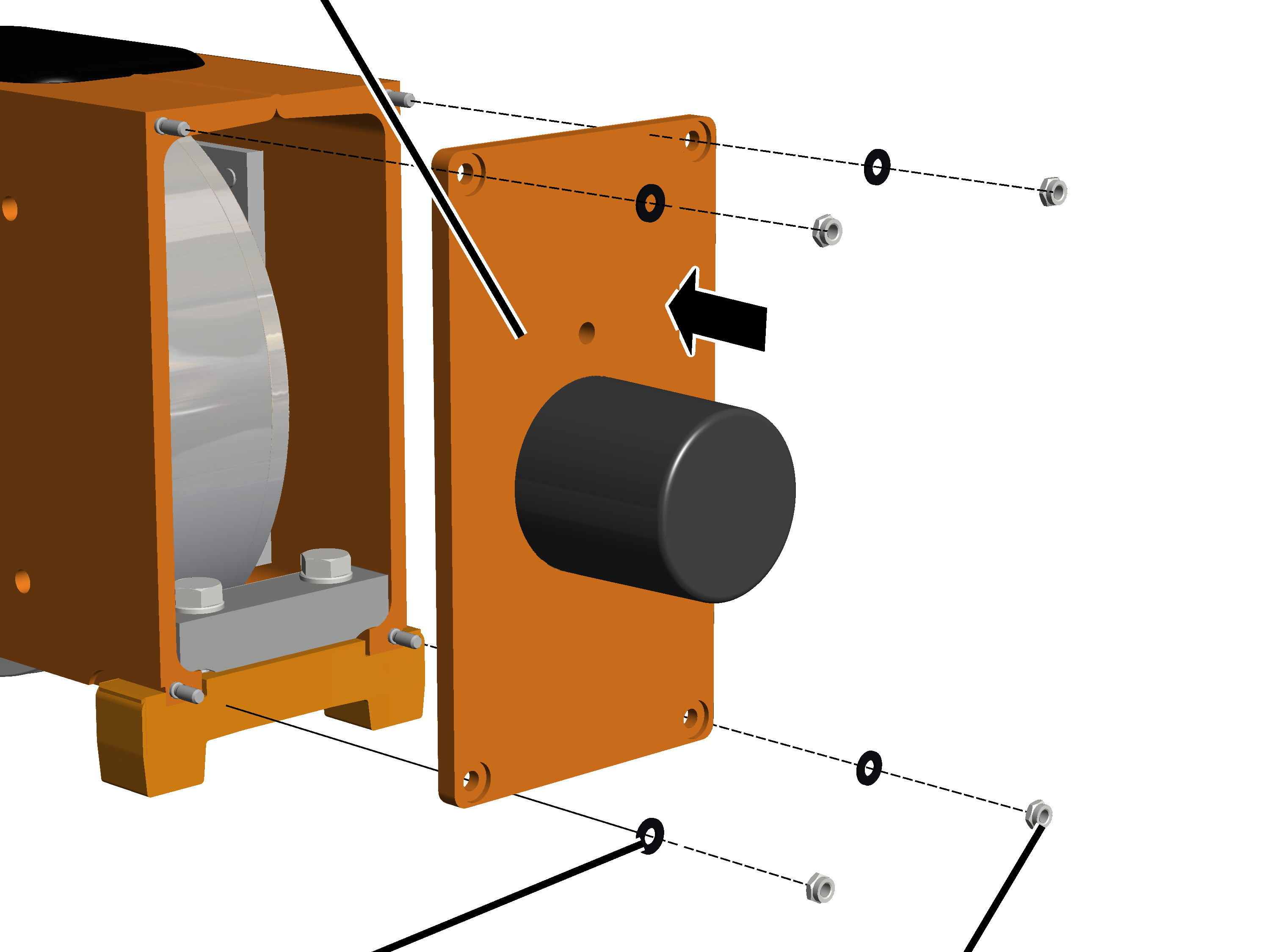

Buffer plate |
|
| |
Plastic washer |
Self-locking nut |
Slide the buffer plate onto the threaded
bolt.
From size 160: Fit the plastic
washers (4x) in place.
Tightly screw the self-locking
nuts M10 (4x). 6 Nm.
The self-locking nuts may only be reused maximally 3 times. After this, new self-locking nuts must be used.
Determine
the weight of the drive. See the ABUS Drive product manual.
|
Output shaft |
|

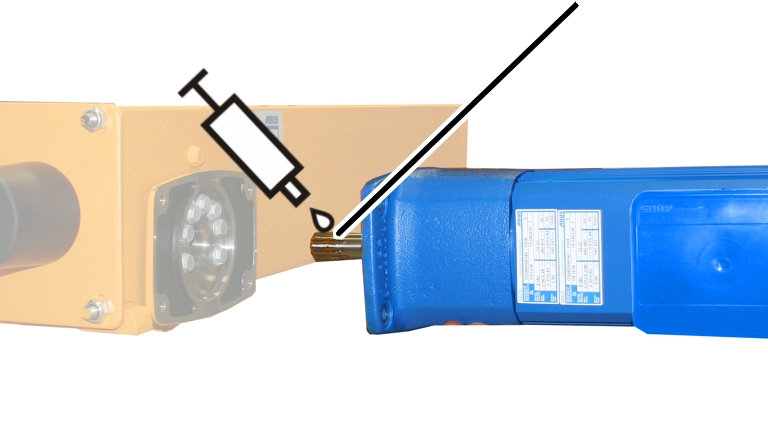

Lubricate the gearing on the output
shaft.
Lubricant - Fuchs Lubritech high temperature paste PBC 1574.
This work step only applies when an AZP drive is to be mounted on the end carriage.

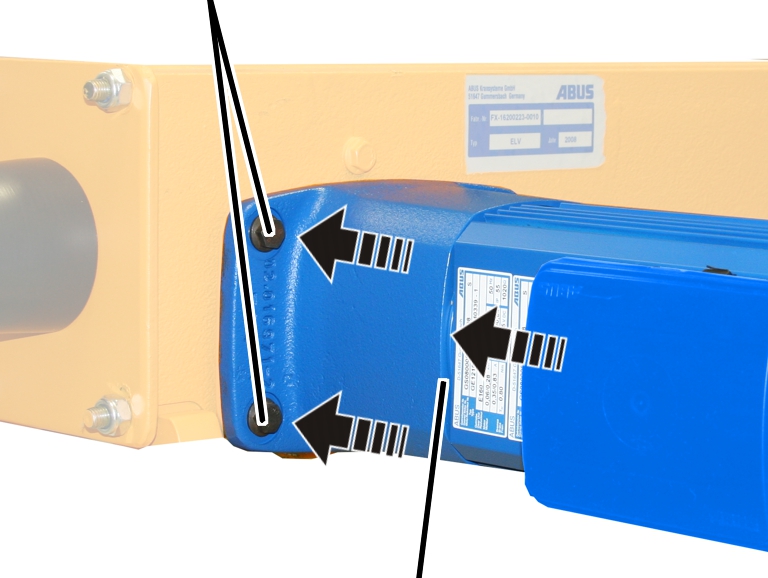

Rib screws |
|
AZP drive |

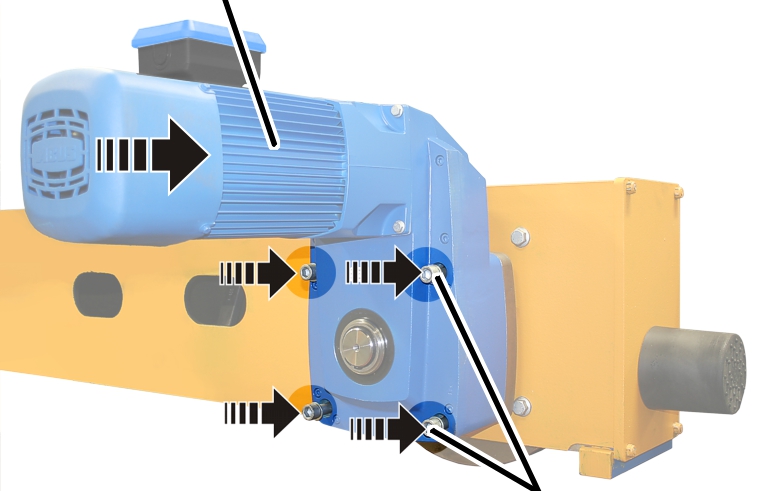

Push the drive in the wheel.
Bolt on the drive with the rib
screws (4x).
Size |
Type |
Tightening torque |
130 |
M8x25 |
35 Nm |
160 |
M10x30 |
75 Nm |
200 |
M12x30 |
115 Nm |
280 |
M16x40 |
300 Nm |
This work step only applies if an AZF crane travel drive is to be mounted on the end carriage.
Crane travel drive AZF | |
| |
|
Fillister-head screws |
Insert the crane travel drive in
the wheel.
Bolt on the crane travel drive
with the fillister-head screws and washers (4x).
Size |
Type |
Tightening torque |
350 |
M12x100 |
30 Nm |
420 |
M12x100 |
30 Nm |
V420 |
M16x140 |
210 Nm |
V500 |
M16x140 |
210 Nm |
Pin
multipoint |
Pin
multipoint |
| |
Connection cable of drive |
Rectifier for brake |
Insert the connection cable for
the drive in the pin multipoint connector on the drive.
Insert the rectifier for the
brake in the pin multipoint connector on the drive.
Lay the plug-in connections and
connection cable in the connector housing.
Pin
multipoint |
Pin
multipoint |
| |
Bush multipoint connector for drive |
Bush multipoint connector for drive |
Insert the bush multipoint
connector for the drive on the pin multipoint connector on the drive.
Insert the bush multipoint
connector for the brake on the pin multipoint connector on the drive.
Plug-in connection |
Cable bushing |
| |
Screening clamp connection |
Connection cable |
Push the front end of the
connection cable (where the sheathing around the shield has been removed) into
the screening clamp connection.
Fasten the connection cable to
the screening clamp connection using cable ties.
Lay the plug-in connections and
connection cable in the connector housing.
|
Intermediate plate |
|
Press the intermediate plate
in.
Close the housing cover.
Replace the crane on the crane
track.
Put the crane into
operation.
Inspect the function of the
wheel.
