The following requirements must be met in order for the crane to be installed:

Checking the crane track

─     The tolerances of the crane track must correspond to the following criteria.

─     The tolerances of the crane track must correspond to the following criteria.

The tolerances specified correspond to DIN EN 1090 for Class 2 crane classifications.

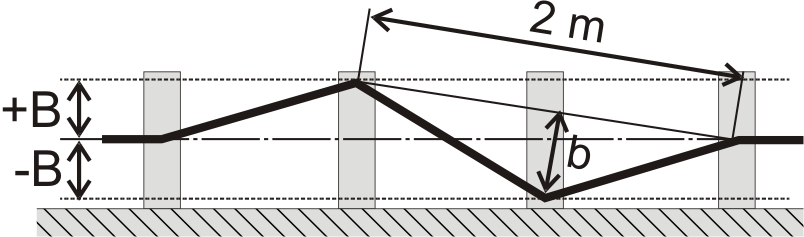

Site of a crane track in floor plan B:

View from above.

─     Deviation B across the entire length of the crane track: B = ± 10 mm.

─     Within 2 m, the deviation may not be greater than b = ± 1 mm.

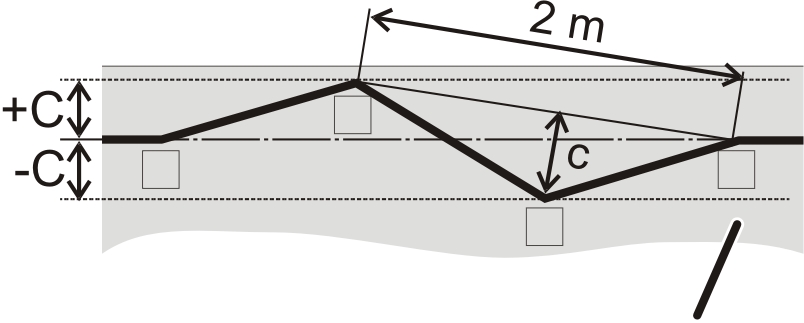

Height of crane track C:

View from the side.

─     Deviation C across the entire length of the crane track: C = ± 10 mm.

─     Deviation C across the entire length of the crane track must not be greater than C = ± crane track length L / 1000.

─     Within 2 m, the deviation may also not be greater than C = ± 2 mm.

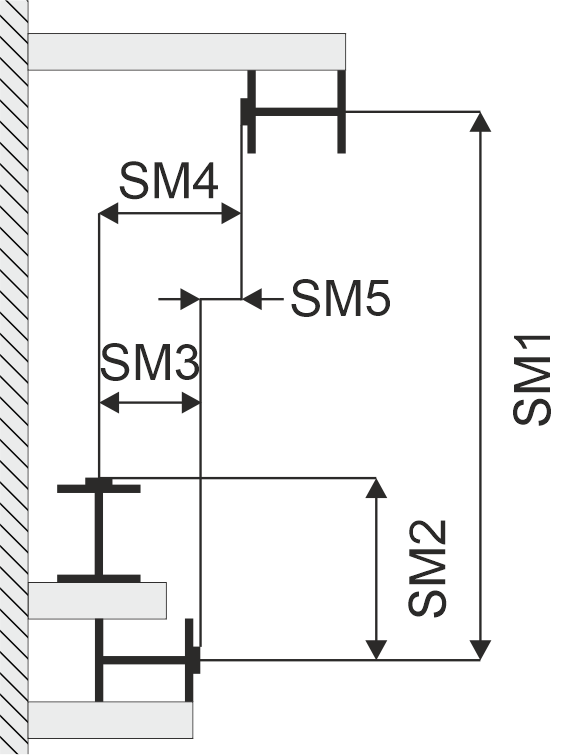

Height/horizontal position of the crane track in relation to each other:

Cross-sectional view.

─     Deviation SM1 along the height between the lower horizontal and the upper horizontal end carriage: SM1 = ±5 mm

─     Deviation SM2 along the height between the lower horizontal and the vertical end carriage: SM2 = ±3 mm

─     Where the height difference SM1 ≤ 3 m, the following also applies:
SM4 – SM3 ≥ 0 and SM5 = ±3 mm
SM4 – SM3 ≥ 0 (+2) and SM5 = ±3 mm

─     Where the height difference SM1 > 3 m, the following also applies:
SM4 – SM3 ≥ 0 and SM5 = -0.07 % of SM1
SM4 – SM3 < 0 (-0.07 % of SM1) and
SM5 = ±3 mm

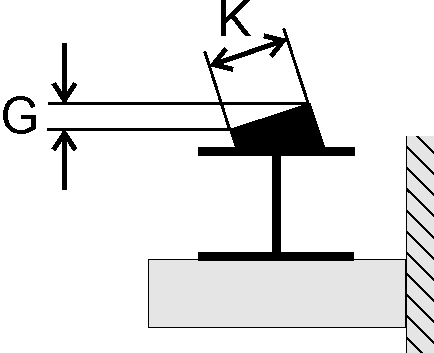

Incline of the crane track from the horizontal vertex G:

Cross-sectional view.

─     Deviation G = 0.8% of the width K.

─     The supplied overhead travelling crane must correspond to the overhead travelling crane that was provided for in the layout plan.
