Changing the fuses



Changing the main fuse F1

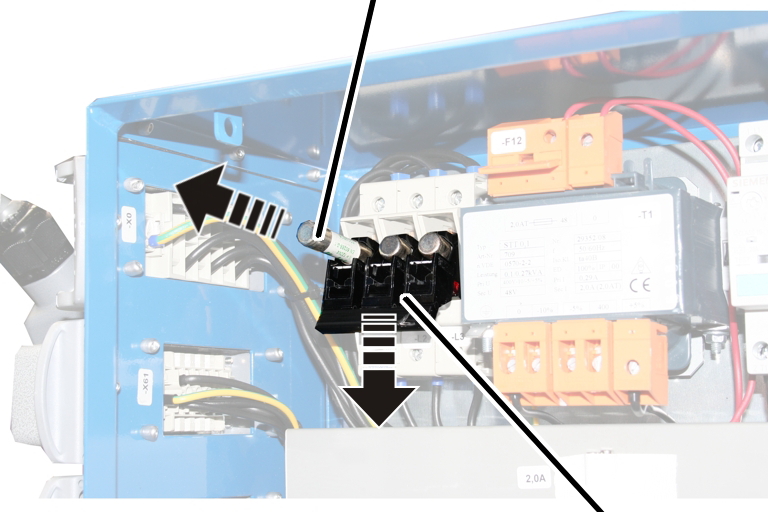

If the fuse is used in a circuit breaker:



Fuse link



Circuit breaker

*   Pull out the circuit breaker.

*   Replace the fuse link.

*   Click the circuit breaker back into place.

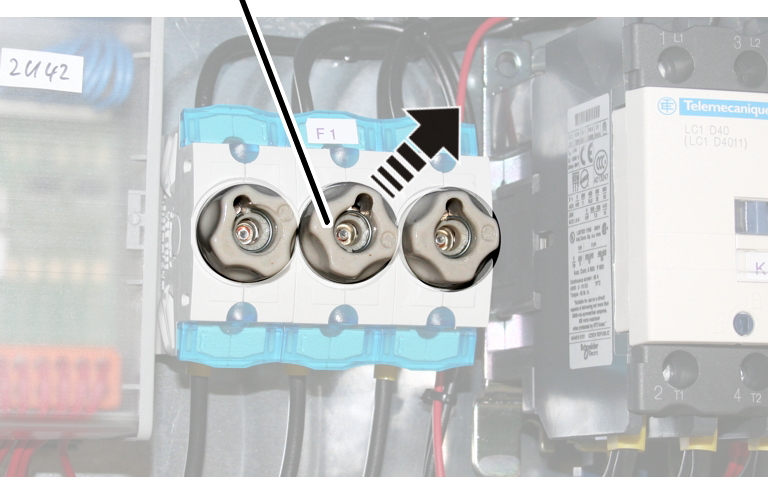

If the fuses are individually screwed in:

Screw cap



*   Unscrew the screw cap.

*   Replace the fuse link.

*   Screw the screw cap back on.

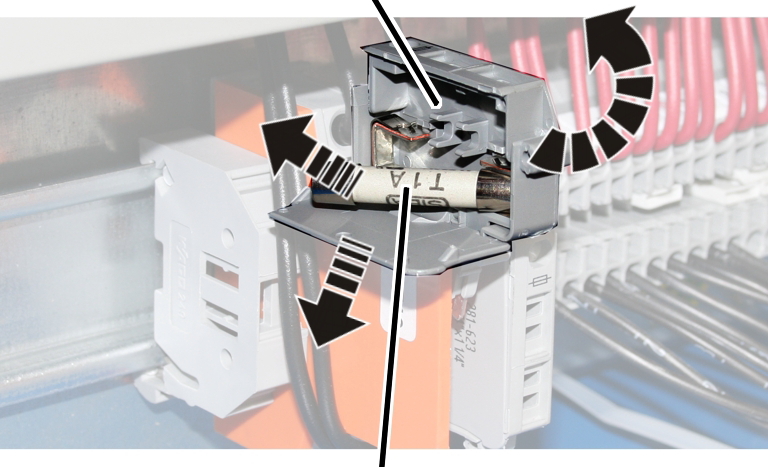

Changing the control current circuit input fuses F10 and F11



Fuse holder



Fuse link

*   Flip open the fuse holder.

*   Open the fuse holder.

*   Replace the fuse link.

*   Close the fuse holder.

*   Click the fuse holder back into place.

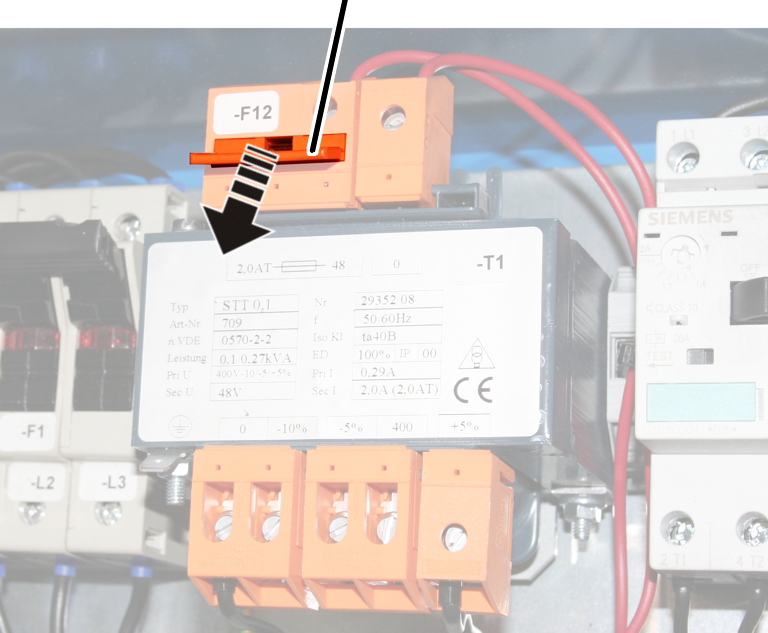

Changing the control current circuit output fuse F12

Fuse holder



*   Detach the fuse holder from the mount on the transformer.

*   Replace the fuse link.

*   Reinsert the fuse holder.
