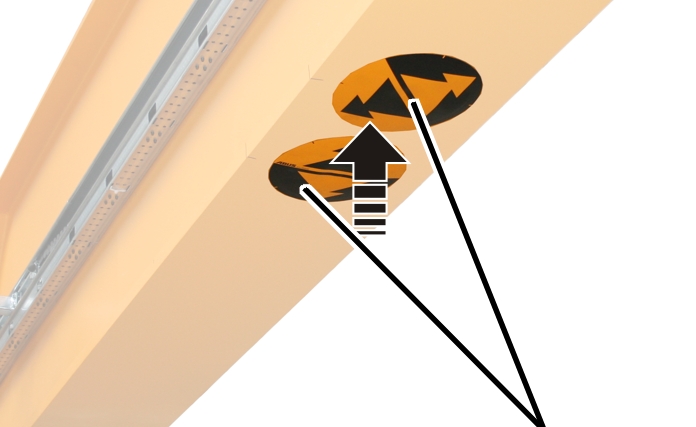

Operating direction signs |
Rotate the operating direction
signs to match how they are marked in the layout plan.
For spans under 10 m only:
Attach operating direction signs for the crane and trolley under the middle of
the main girder.
Only for spans greater than
10 m: Attach operating direction signs for the crane and trolley to the
left and right, in each case 2.5 m away from the end carriage and end of
the main girder.
