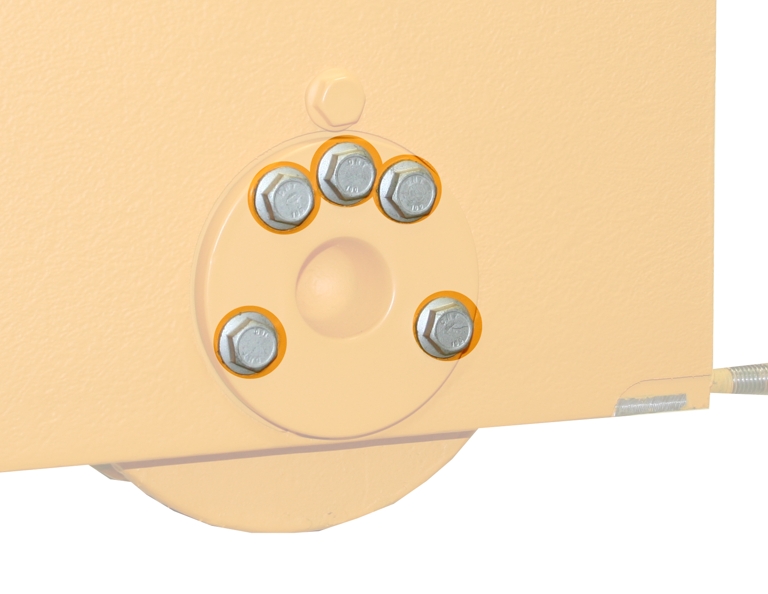

Size |
Type, size and length |
Number |
Tightening torque |
|
130 |
Rib screw M8x25 |
5x |
42 Nm |
|
160 |
Rib screw M8x25 |
5x |
42 Nm |
|
200 |
Rib screw M10x30 |
5x |
85 Nm |
|
280 |
Rib screw M12x40 |
5x |
130 Nm |
|
350 |
Rib screw M12x40 |
8x |
130 Nm |
|
420 |
Rib screw M16x40 |
8x |
330 Nm |
|
|
|

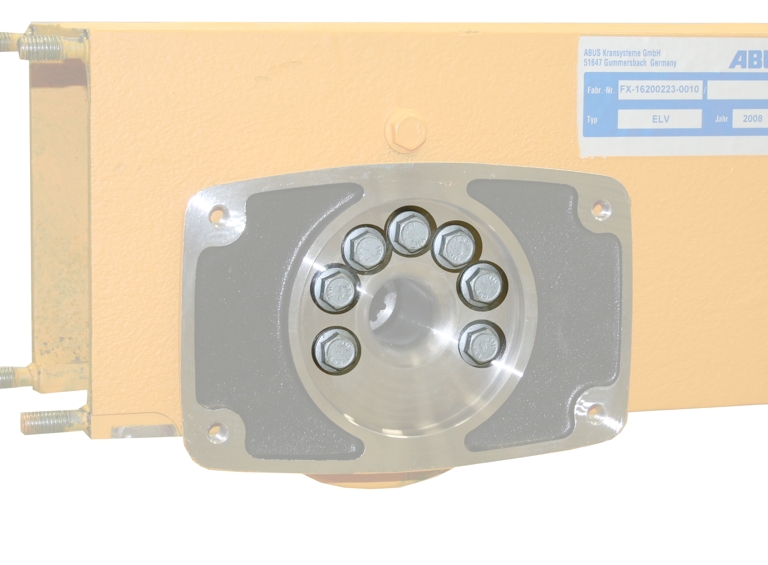

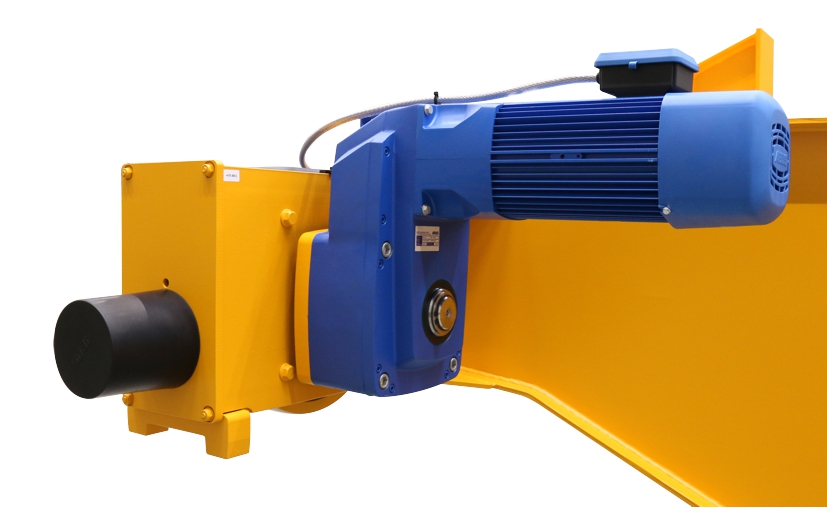

Size |
Type, size and length |
Number |
Tightening torque |
|
130 |
Rib screw M8x25 |
7x |
42 Nm |
|
160 |
Rib screw M8x25 |
7x |
42 Nm |
|
200 |
Rib screw M10x30 |
7x |
85 Nm |
|
280 |
Rib screw M12x40 |
7x |
130 Nm |
|
350 |
Rib screw M12x40 |
10x |
130 Nm |
|
420 with crane travel drive 420 |
Rib screw M16x40 |
10x |
330 Nm |
|
420 with crane travel drive 420 V |
Rib screw M16x70 |
10x |
330 Nm |
|
B |
|
Type, size and length |
Number |
Tightening torque | |
|
130 |
Rib screw M8x45 |
2x |
42 Nm |
|
160 |
Rib screw M10x50 |
2x |
85 Nm |
|
200 |
Rib screw M10x50 |
2x |
85 Nm |
|
280 |
Hexagon head screw M12x60 |
2x |
130 Nm |
|
350 |
Hexagon head screw M20x75 or M20x70 |
2x |
300 Nm |
|
420 |
Hexagon head screw M20x75 or M20x70 |
2x |
300 Nm |
|
|

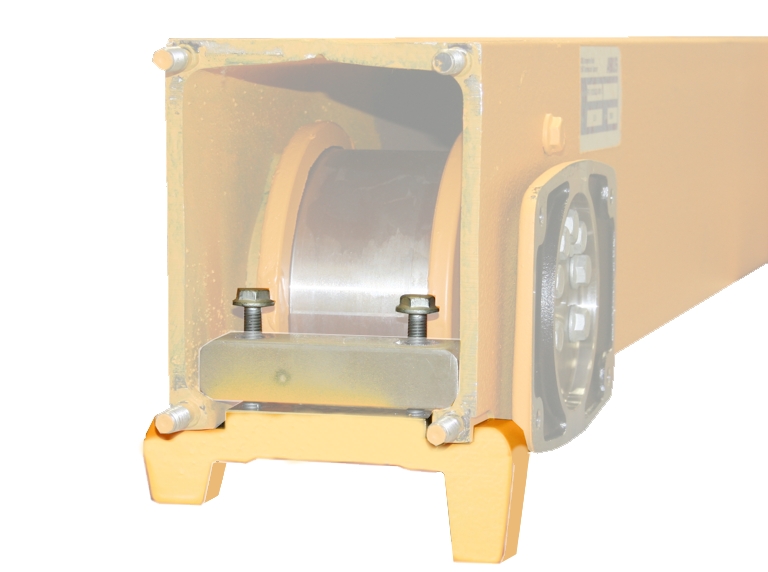

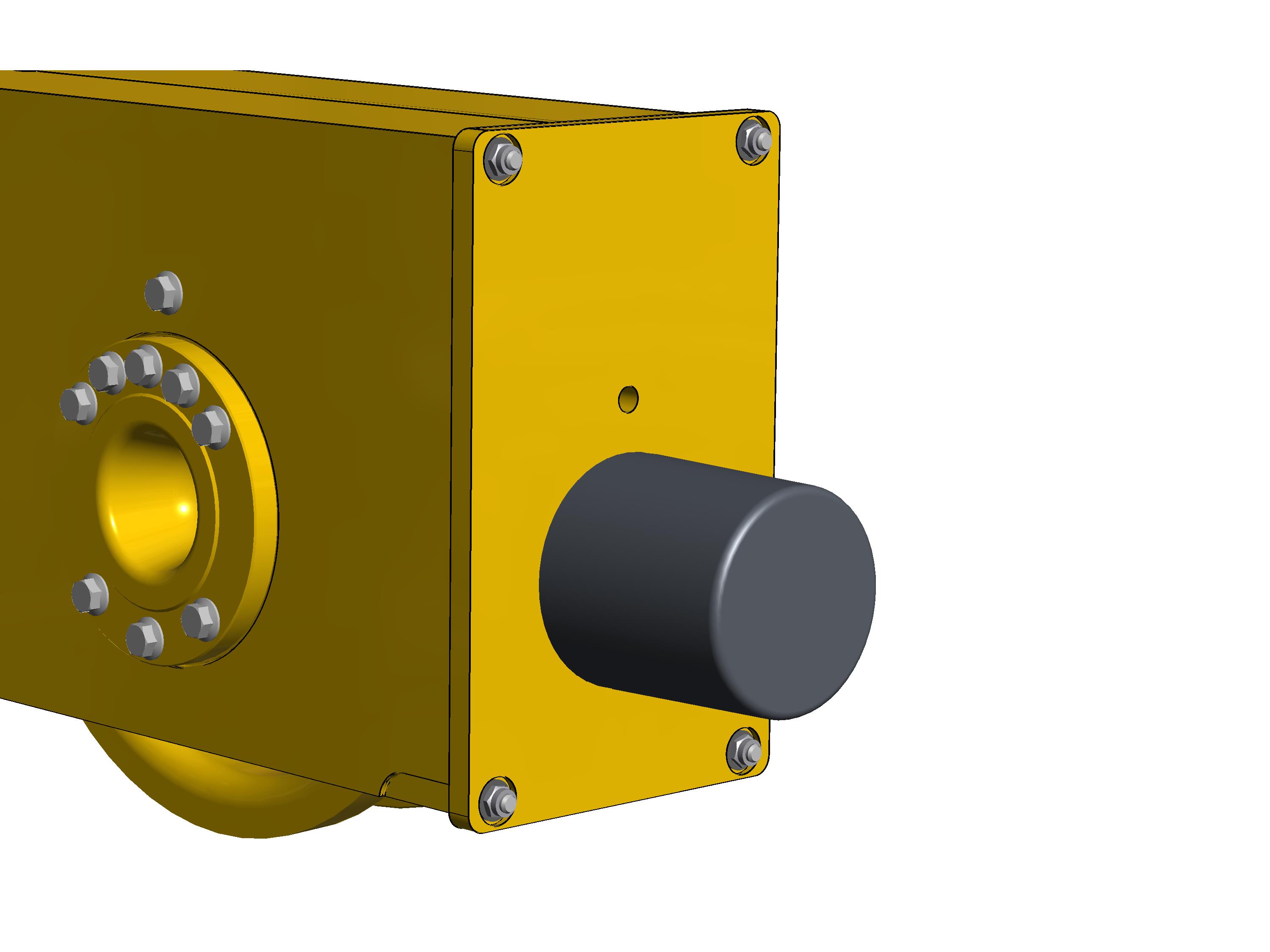

─ From size 160: Plastic washers
─ 4x per buffer plate
─ 6 Nm
|
|
|
Size |
Type, size and length |
Number |
Tightening torque |
|
130 |
Rib screw M8x25 |
4x |
35 Nm |
|
160 |
Rib screw M10x30 |
4x |
75 Nm |
|
200 |
Rib screw M12x30 |
4x |
115 Nm |
|
280 |
Rib screw M16x40 |
4x |
300 Nm |
|
|
|

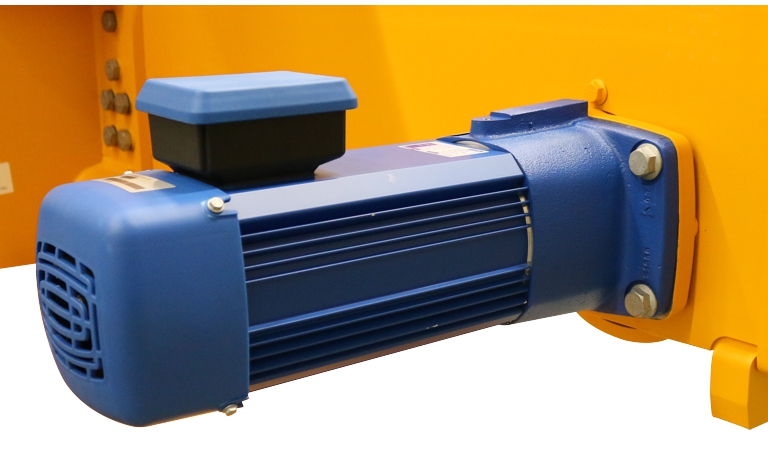

Size |
Type, size and length |
Number |
Tightening torque |
|
350 |
Fillister-head screw M12x100 |
4x |
85 Nm |
|
420 |
Fillister-head screw M12x100 |
4x |
85 Nm |
|
V420 |
Fillister-head screw M16x140 |
4x |
210 Nm |
|
V500 |
Fillister-head screw M16x140 |
4x |
210 Nm |
