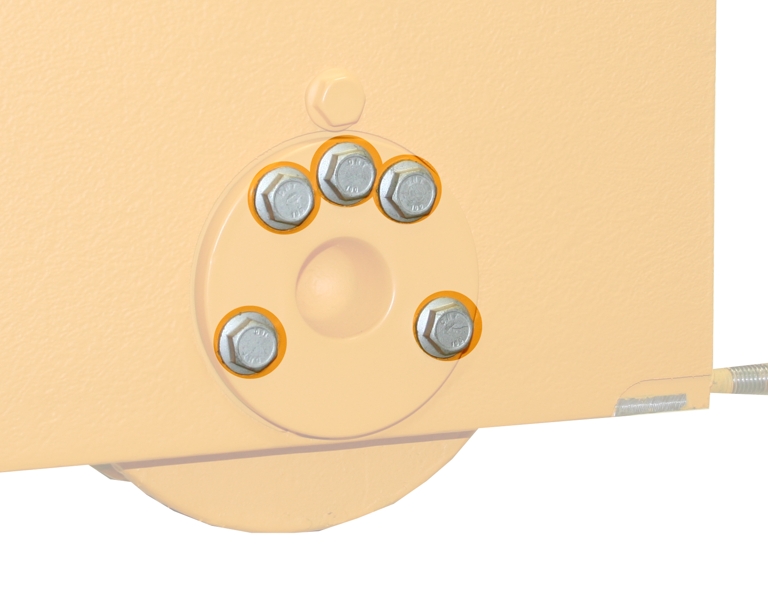

Size |
Type, size and length |
Number |
Tightening torque |
|
130 |
Rib screw M8x25 |
5x |
42 Nm |
|
160 |
Rib screw M8x25 |
5x |
42 Nm |
|
200 |
Rib screw M10x30 |
5x |
85 Nm |
|
280 |
Rib screw M12x40 |
5x |
130 Nm |
|
|
|

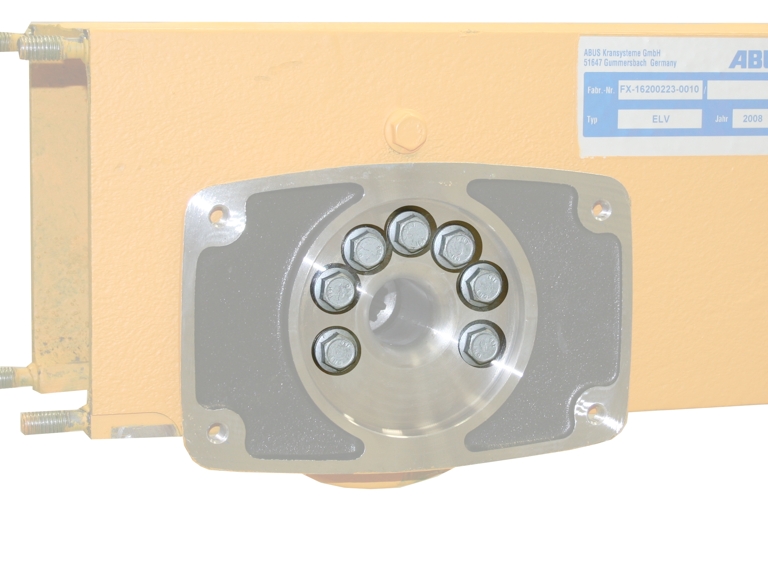

Size |
Type, size and length |
Number |
Tightening torque |
|
130 |
Rib screw M8x25 |
7x |
42 Nm |
|
160 |
Rib screw M8x25 |
7x |
42 Nm |
|
200 |
Rib screw M10x30 |
7x |
85 Nm |
|
280 |
Rib screw M12x40 |
7x |
130 Nm |
|
|
|

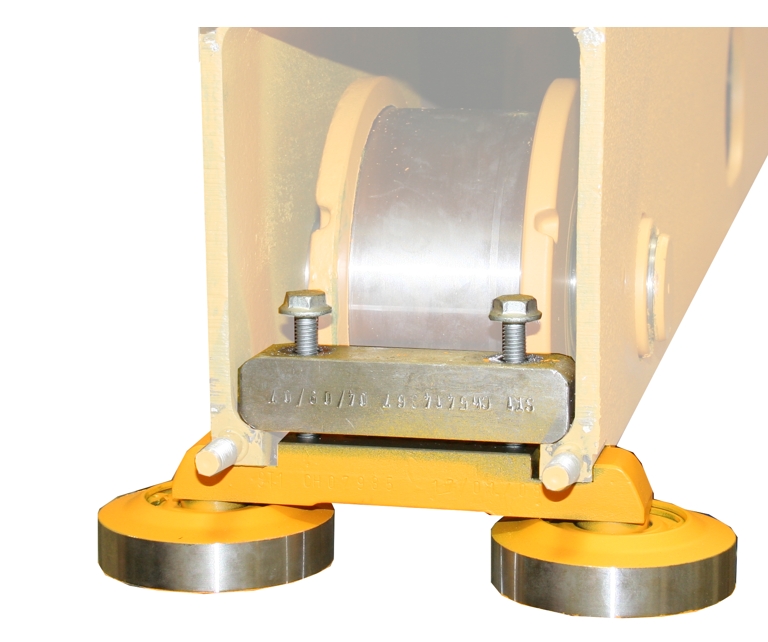

Size |
Type, size and length |
Number |
Tightening torque |
|
130 |
Rib screw M8x45 |
2x |
42 Nm |
|
160 |
Rib screw M10x50 |
2x |
85 Nm |
|
200 |
Rib screw M10x50 |
2x |
85 Nm |
|
280 |
Hexagon head screw M12x60 |
2x |
130 Nm |
|
|
─ From size 160: Plastic washers
─ 4x per buffer plate
─ 6 Nm
|
|
|

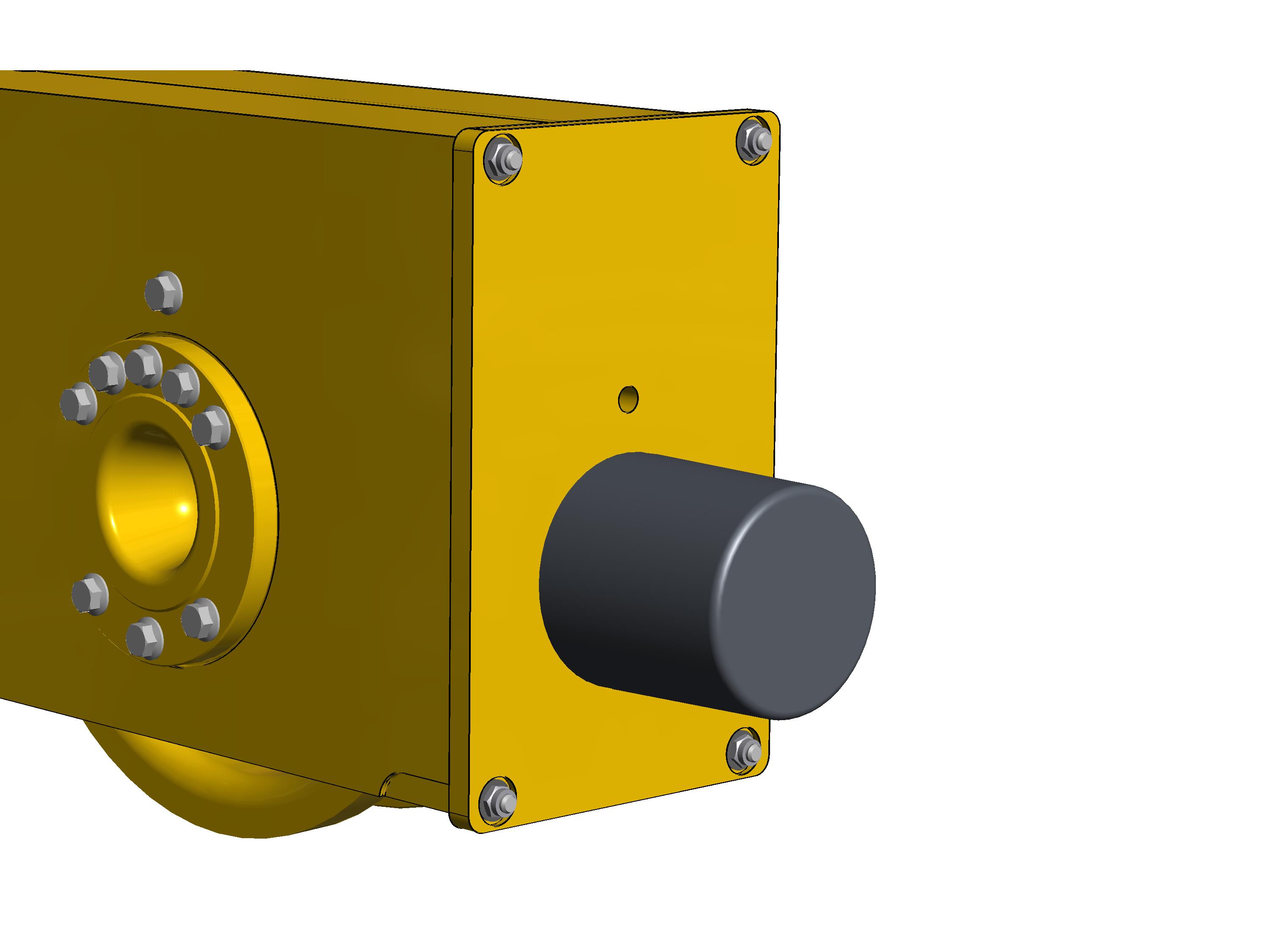

Size |
Type, size and length |
Number |
Tightening torque |
|
130 |
Rib screw M8x25 |
4x |
35 Nm |
|
160 |
Rib screw M10x30 |
4x |
75 Nm |
|
200 |
Rib screw M12x30 |
4x |
115 Nm |
|
280 |
Rib screw M16x40 |
4x |
300 Nm |
