Danger from falling components!
The crane can fall and kill or injure people if it is not correctly attached and lifted. Attachment and loading should only be carried out by trained persons.
|
|
Danger from falling components! The crane can fall and kill or injure people if it is not correctly attached and lifted. Attachment and loading should only be carried out by trained persons. |
Observe the following points amongst others:
|

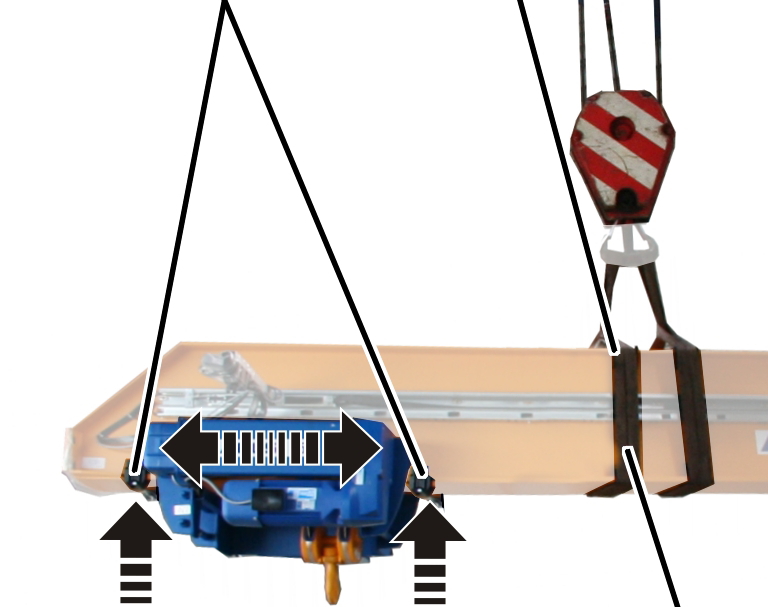

Clamping buffer |
Edge protection | |
|
| ||
|
|
Lifting tackle | |
Place
suitable lifting tackle around the main girders.
Cover all edges of the
main girder with suitable edge protection.
If
the profile rails (in which the energy chain is) protrude to the side, lay
wooden beams (wider than the profile rails) over the profile rails so that they
are not damaged on lifting.
Secure the trolleys with
clamping buffers so that they do not slip on lifting.
Set down the main girders
on stands which have sufficient load capacity.
With the trolley installed underneath the main girder: The stands must be at least high enough that the rope is not buckled or pinched. Ideally, the stands should be high enough that the trolley load hook hangs freely.
|
| |
|

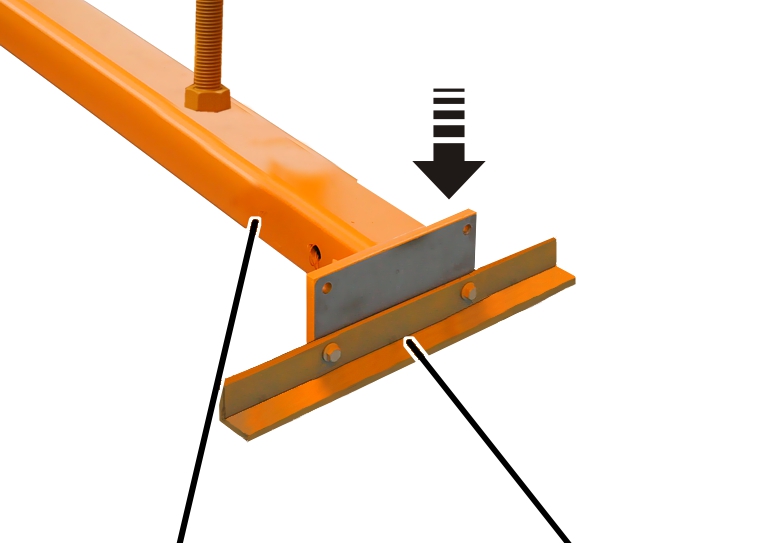

A-frame |
Support retaining element |
Unload the portal supports
and set them on the support retaining element.
