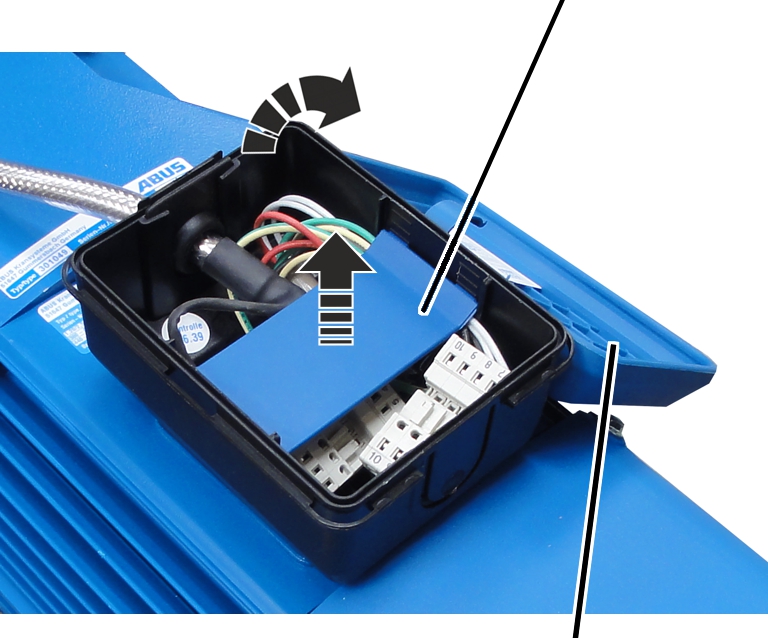

Intermediate plate
Housing cover
|
|
Intermediate plate |
|
| |
|
|
Housing cover |
Open the housing
cover.
Take out the intermediate
plate.
|
|

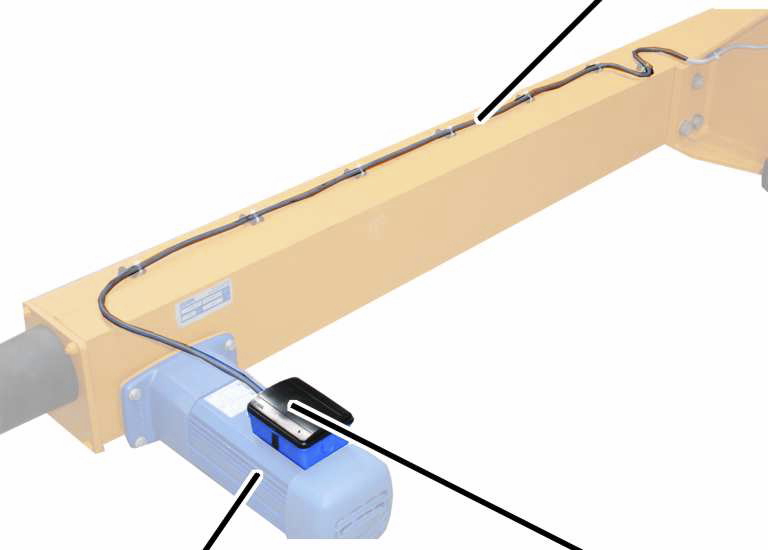

Connection cable |
|
| |
|
Crane travel drive |
Connector housing |
Lay the connection cable
for the drive.
Lay the connection cable
in the connector housing.
|
Pin multipoint connector on the drive |
Pin multipoint connector on the drive |
|
| |
|
Connection cable of drive |
Rectifier for brake |
Insert the connection cable for the drive in
the pin multipoint connector on the drive.
Insert the rectifier for
the brake in the pin multipoint connector on the drive.
Lay the plug-in
connections and connection cable in the connector housing.
|
Pin multipoint connector on the drive |
Pin multipoint connector on the drive |
|
| |
|
Bush multipoint connector for drive |
Bush multipoint connector for drive |
Insert the bush multipoint
connector for the drive on the pin multipoint connector on the drive.
Insert the bush multipoint
connector for the brake on the pin multipoint connector on the drive.
|
Plug-in connection |
Cable bushing |
|
| |
|
Screening clamp connection |
Connection cable |
Push the front end of the
connection cable (where the sheathing around the shield has been removed) into
the screening clamp connection.
Fasten the connection
cable to the screening clamp connection using cable ties.
Lay the plug-in
connections and connection cable in the connector housing.
|
|

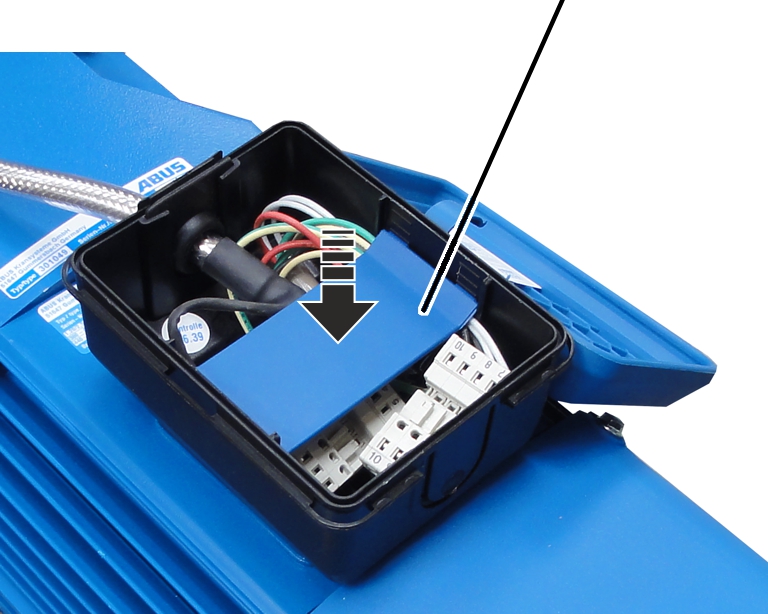

Intermediate plate |
|
| |
Press the intermediate
plate in.
Close the housing
cover.
|
| ||
|
| ||
|
|
Installation channel | |
Push the installation
channel on the crane panel onto the bolt on the end carriage.
Fasten the installation
channel with cable fasteners.
|

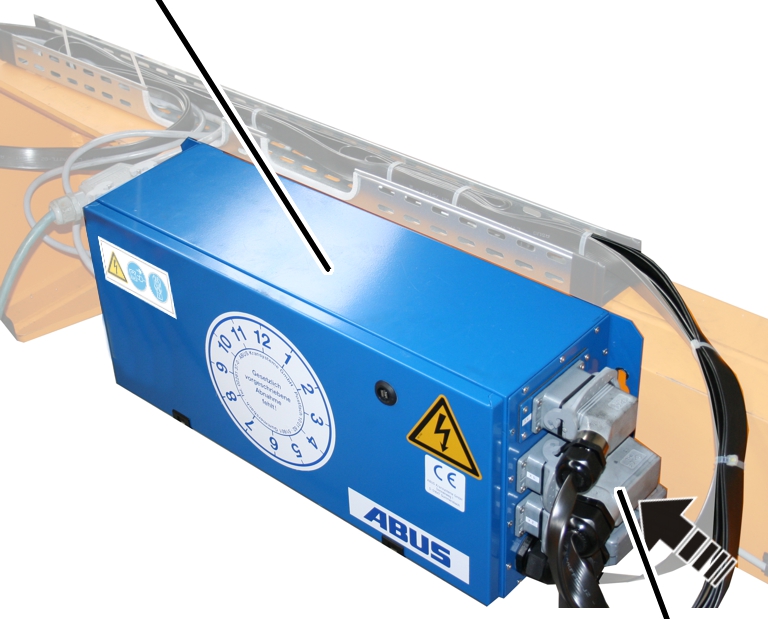

Crane panel |
| |
|
| ||
|
|
Connectors and coupler plugs | |
Insert connectors and
coupler plugs in the socket on the crane panel.
Lay the connection cables
in the cable duct.
Secure the connection
cables with cable clips.
In case the safety buffers are not installed:
|

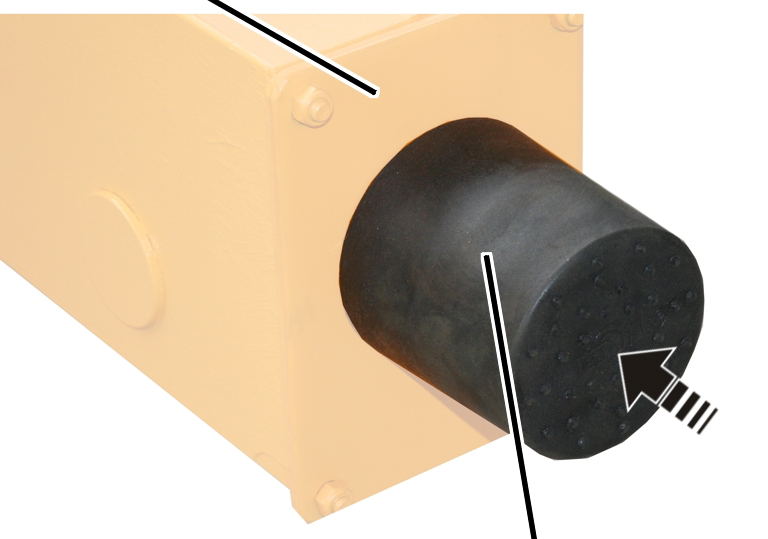

Buffer plate |
| |
|
| ||
|
|
Safety buffer | |
Screw safety buffers into
the buffer plates. Approx. 30 Nm.
The safety buffer must be in contact with the buffer plate and there must be no gap between them, otherwise the impact will be absorbed by the screw and not by the safety buffer.
The lift-off prevention device must first be disassembled so that the crane can later be easily raised onto the crane track.
|

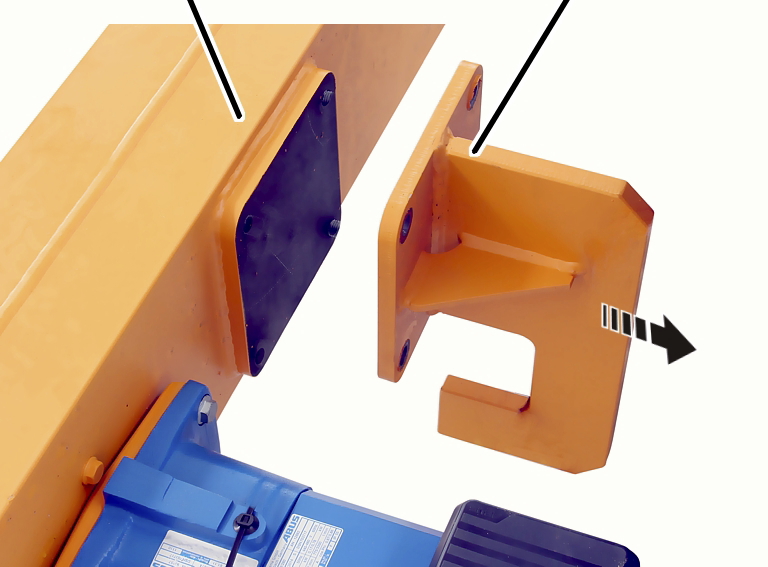

Upper end carriage |
Lift-off prevention device |
|
| |
Disassemble the lift-off
prevention device from the upper end carriage.
