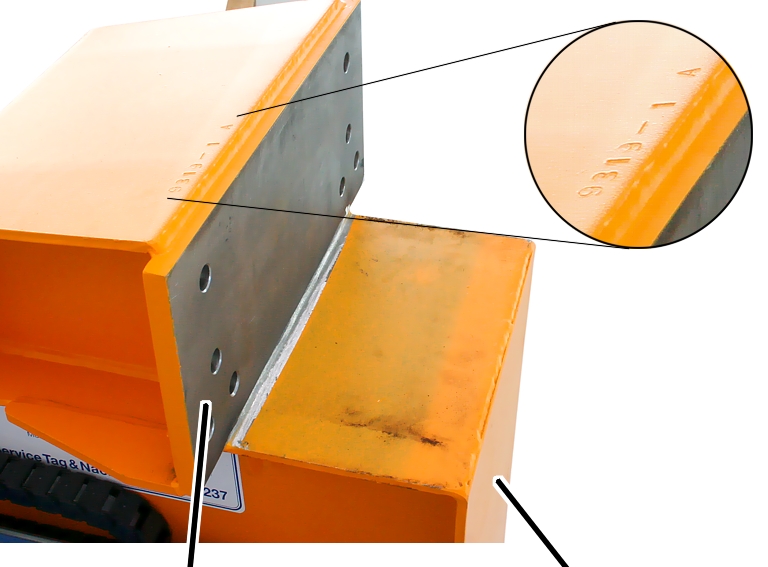

Outer connection console
End of main girder
|
| |
|
Outer connection console |
End of main girder |
Note the letter position
marker A or B and find the cross head beam for the outer connection console.
The cross head beam will not yet be bolted to the connection console, but rather to the A-frames (in the next work step).
|
|

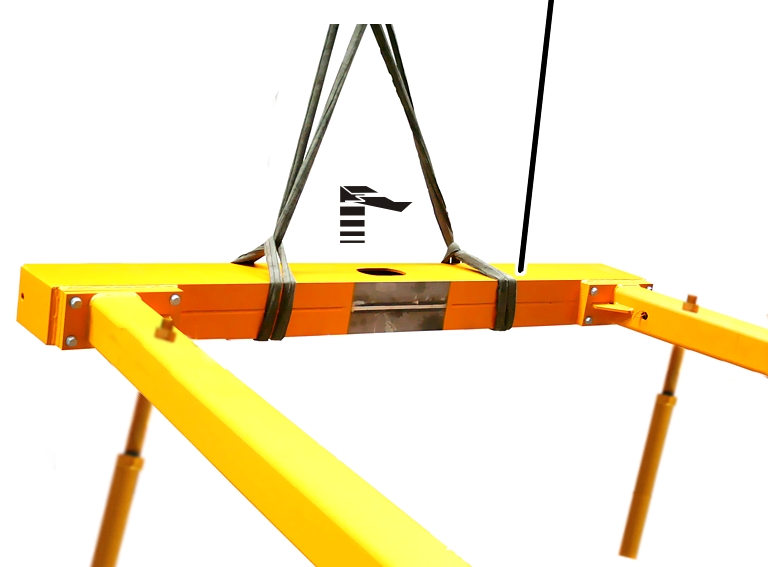

Outer cross head beam |
|
| |
Insert the cross head beam
you located into a crane in a horizontal position and join it to the upper end
of the A-frames.
Bolt on the cross head
beam with M16x40 rib screws (4 on each). 300 Nm.
─ Only tighten rib screws with a suitable torque wrench.
─ Do not use an impact wrench.
─ Do not tighten rib screws using turn-of-nut tightening.
