Whether and where the components are to be installed is specified in the planning documents.
The circuit isolator or a housing with fuses is now installed.
|
|
Whether and where the components are to be installed is specified in the planning documents. |
Fuses for the crane line are located in the blue-black housing. Depending on the crane control, the housing also contains a circuit isolator, with which the entire crane can be isolated from the power supply.
The figures show the installation of the housing laterally on the HB profile rail. Depending on the on-site conditions in the building, the housing can also be installed lying on top of the HB profile rail.
|
|
The figures show the installation of a housing with circuit isolator. The installation of a housing with fuses does not essentially differ. |
|
Mounting bracket |
|
|
| |
|
Housing |
|

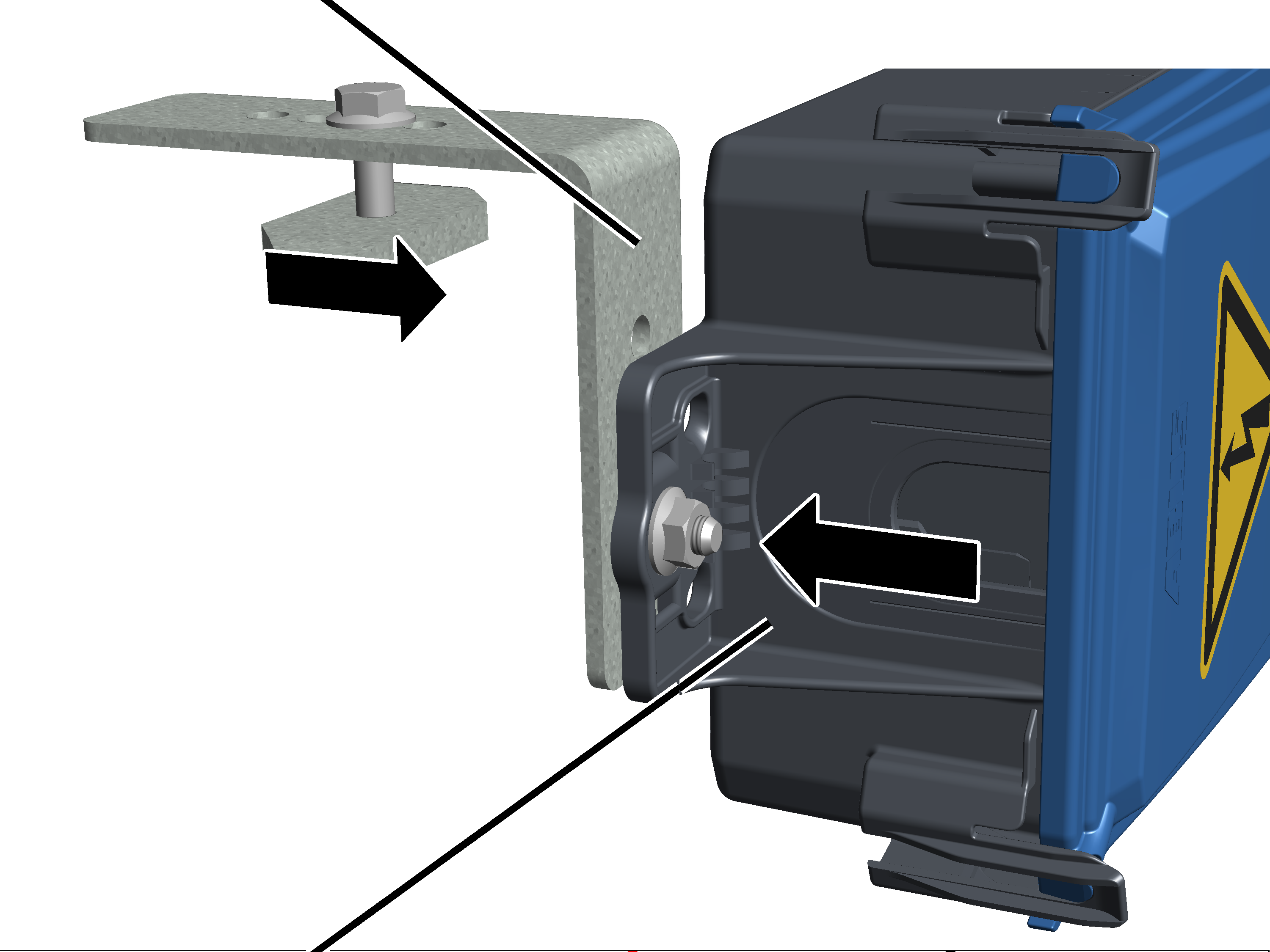

Bolt the mounting brackets
(2x) to the housing with the M8 rib screw and M8 rib nut. 12 Nm.
|
Head nut |
Circuit isolator |
|
| |

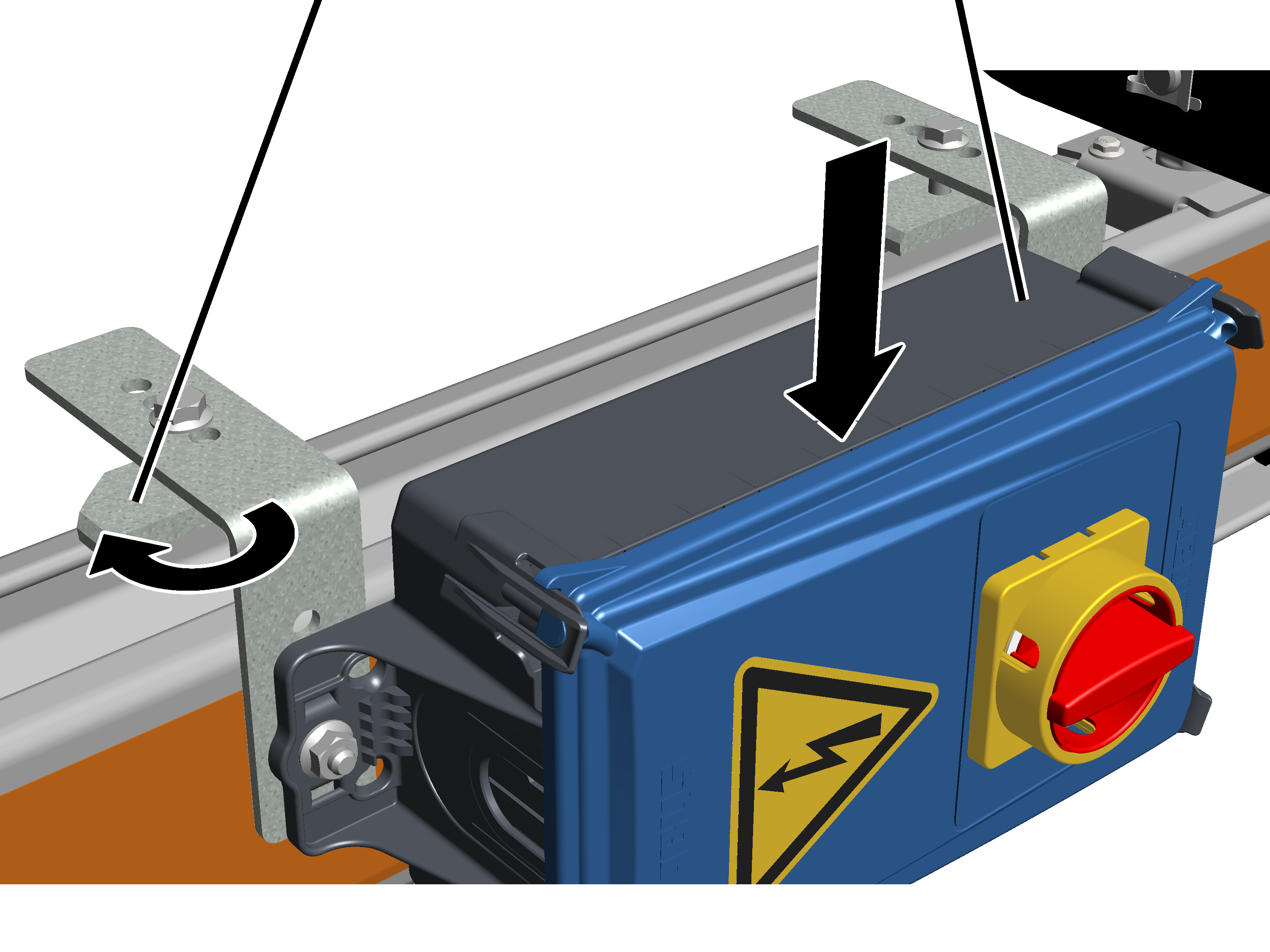

Insert the mounting
bracket from above in the profile head. In doing so, bring the head nuts into
the profile head.
Turn the head nuts so that
they lay crosswise in the profile head.
Tighten the rib screws on
the head nuts. 25 Nm.
