Support
On the entire conductor system:
|
Support |
|
|
| |

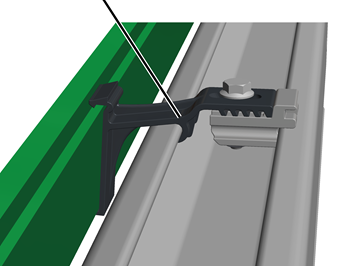

Inspect the brackets. They
should not be broken or otherwise damaged and must clamp firmly in the profile
head.
If a bracket is damaged:
replace it.
If a bracket in the
profile head is loose: screw it tight.
|
|
The figures show the check of the current collector on the conductor system VKL. The check on the conductor system KBH does not differ significantly. |
On all current collectors:
|
Current collector |
|
|
| |

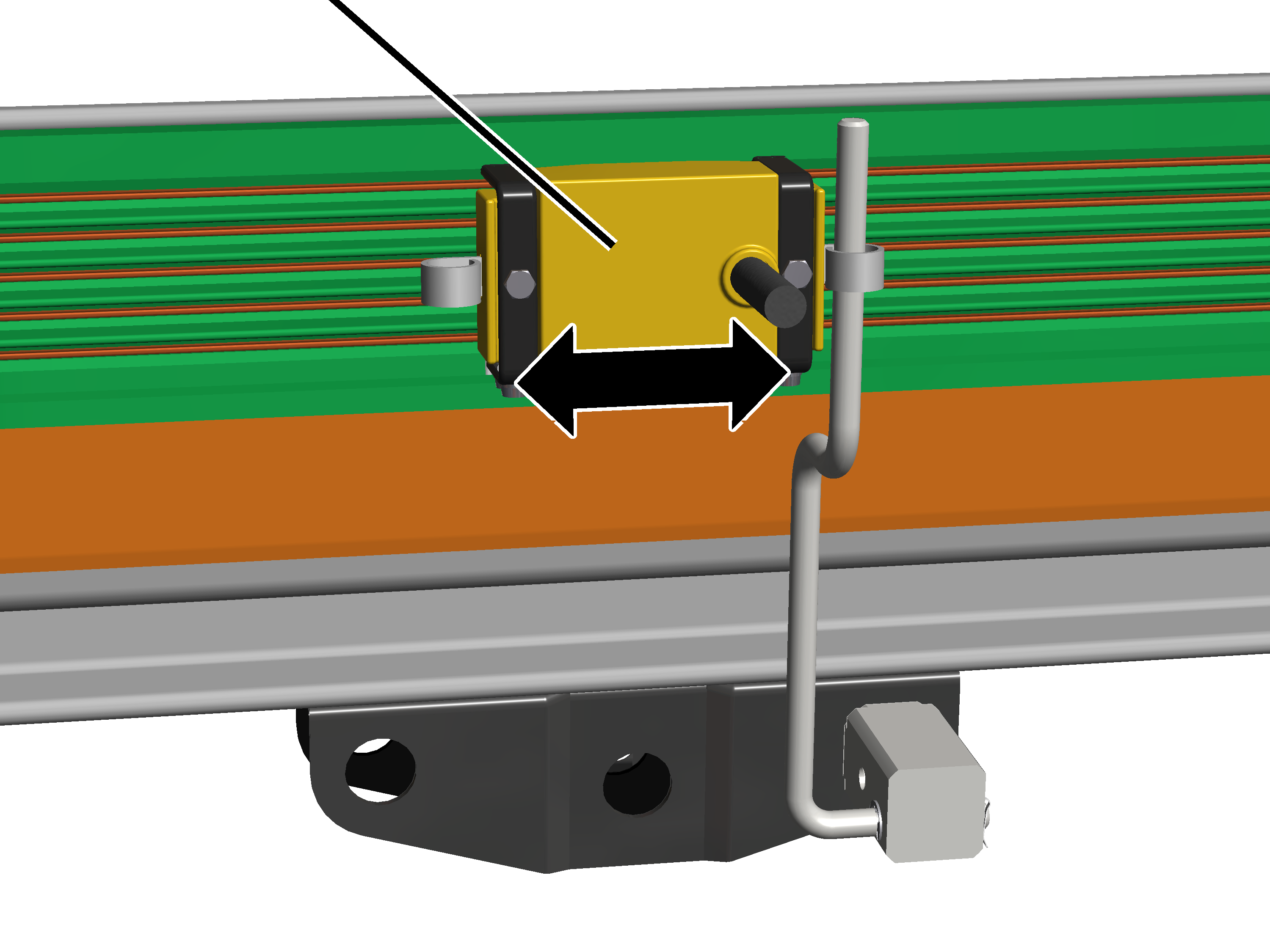

Inspect the current
collector. It must slide with ease in the conductor system.
If the current collector
catches or jerks: remove the current collector and repair it.
