The figures show the installation of the HB6, HB11 and HB22 trolleys on a steel HB profile rail of the size HB150S. The work step for larger or smaller HB profile rails and for aluminium profile rails does not differ significantly from this.
|
|
The figures show the installation of the HB6, HB11 and HB22 trolleys on a steel HB profile rail of the size HB150S. The work step for larger or smaller HB profile rails and for aluminium profile rails does not differ significantly from this. |
|
Trolley |
|
|
| |

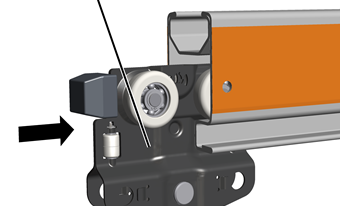

Slide a trolley HB5 / HB6
into the HB profile rail.
With trolley HB10 / HB11:
slide two trolleys (prefitted with cross bar HB10/HB11 if appropriate) into the
HB profile rail.
With trolley HB22: slide
four trolleys (prefitted with cross bar HB22 if appropriate) into the HB profile
rail.
A cross bar HB10/HB11 is now fitted to the trolleys.
|
Trolleys |
|
|
| |
|
Cross bar HB10/HB11 |
SL safety clip |

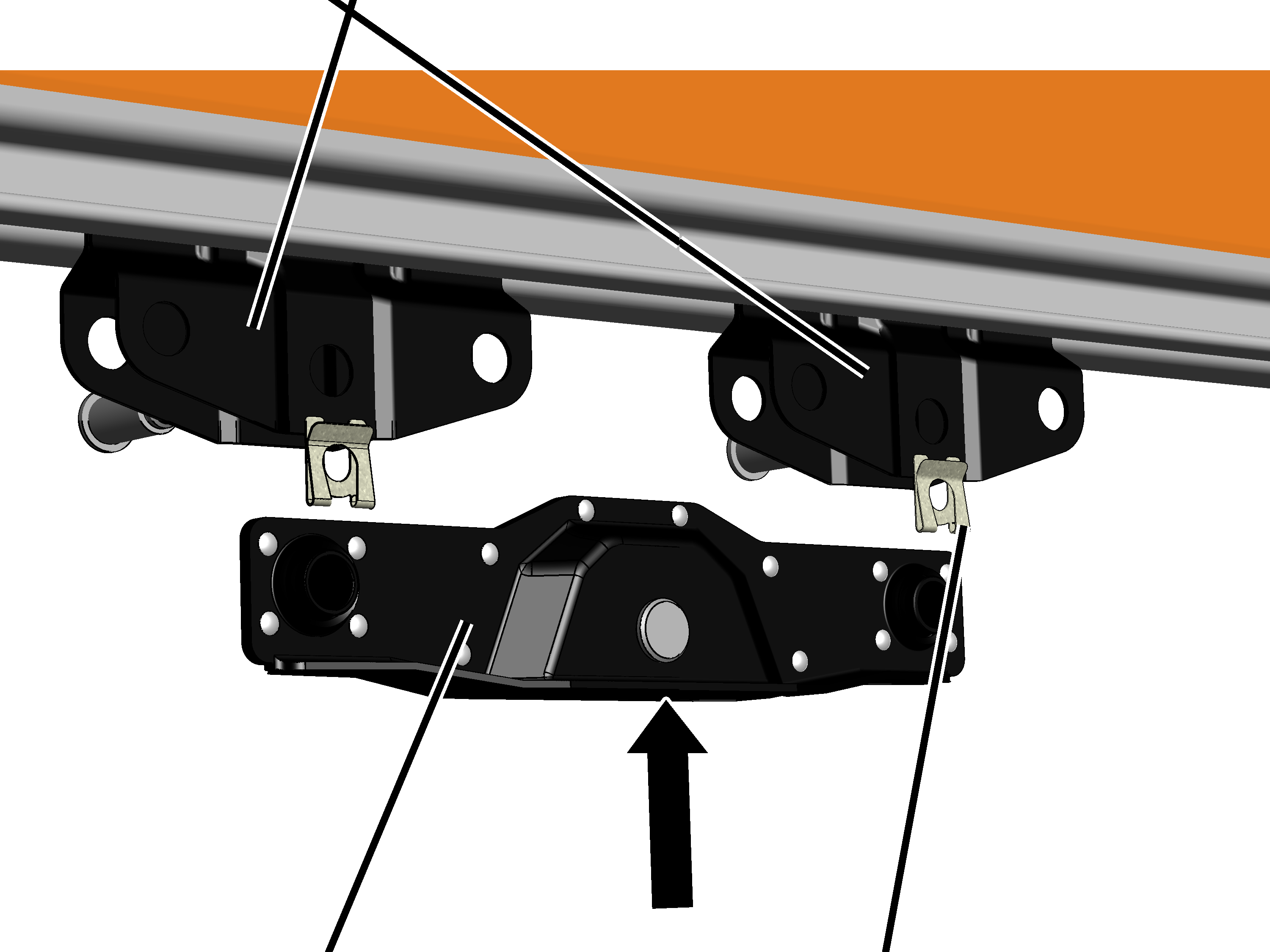

Push the cross bar
HB10/HB11 into the two trolleys HB6 from below.
Push the bolts (2x)
through the trolleys HB6 and cross bar HB10/HB11.
Secure the bolts with the
SL safety clips (2x).
