Pin multipoint connector on the drive
Pin multipoint connector on the drive
Connection cable of drive
Rectifier for brake
|
Pin multipoint connector on the drive |
Pin multipoint connector on the drive |
|
| |
|
Connection cable of drive |
Rectifier for brake |
Insert the connection
cable for the drive in the pin multipoint connector on the drive.
Insert the rectifier for
the brake in the pin multipoint connector on the drive.
Lay the plug-in
connections and connection cable in the connector housing.
|
|

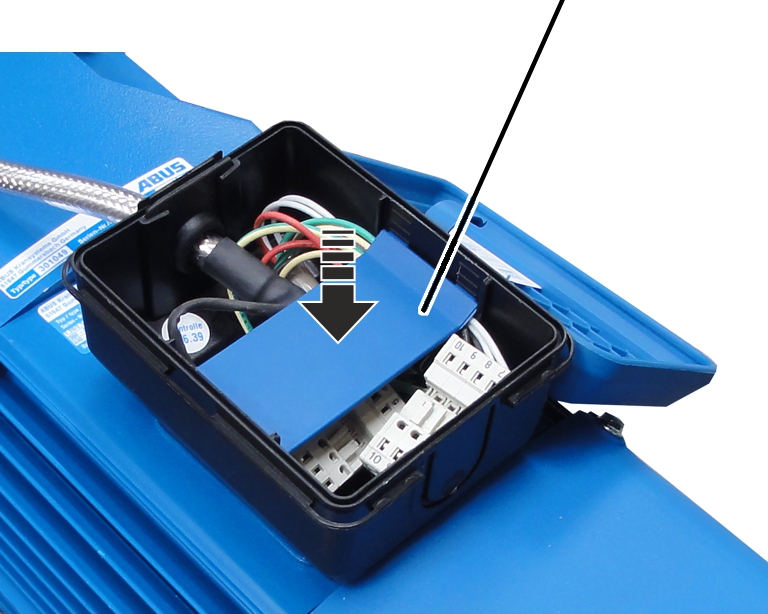

Intermediate plate |
|
| |
Insert the intermediate
plate.
Close the housing
cover.
