Depending on the control, one or two connection cables with connectors must be connected to the chain hoist. See the wiring diagram.

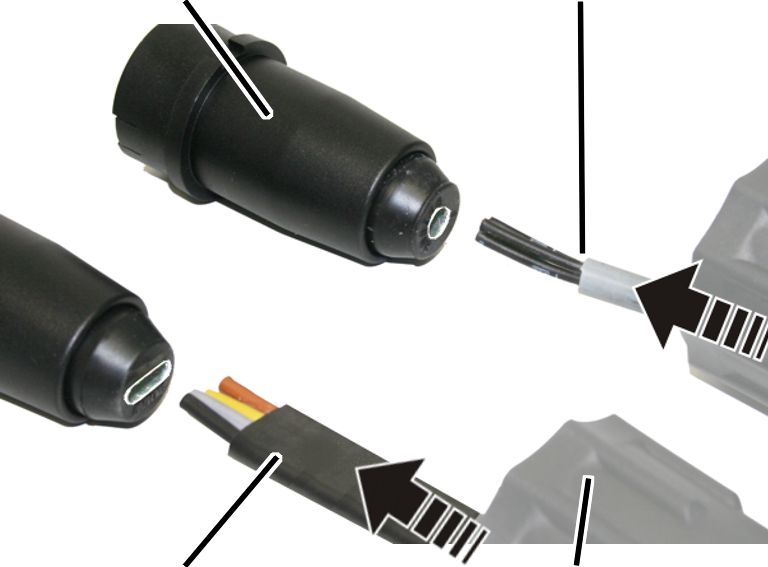

    For festoon cable system: push the flat cable on the chain hoist into the connector housing and connect it.

    For conductor system: push the round cable on the chain hoist into the connector housing and connect it.

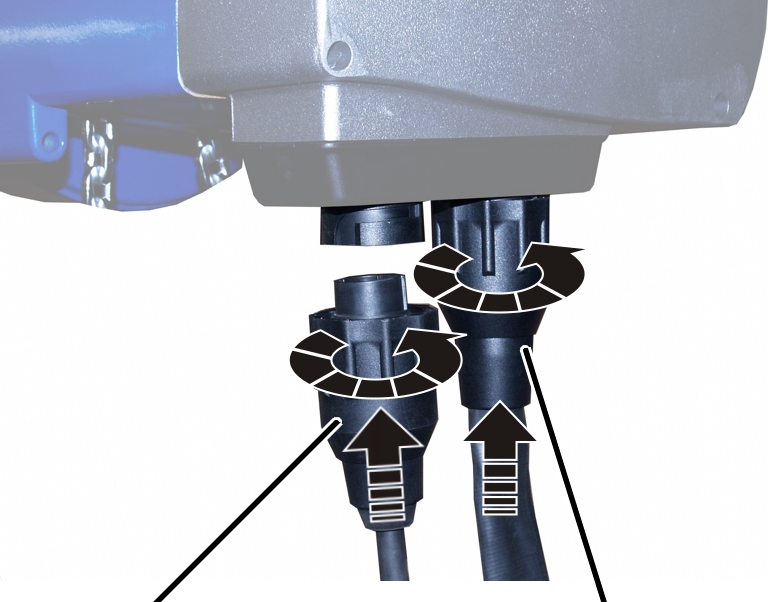

    Depending on the control, insert one or two bayonet couplings or bayonet connectors.

Due to a notch, the plug-in connections will only fit together in one position.

    Slide on and tighten the bayonet nuts.
