Check cross bar HB10/HB11



On the HB10/HB11 cross bars:

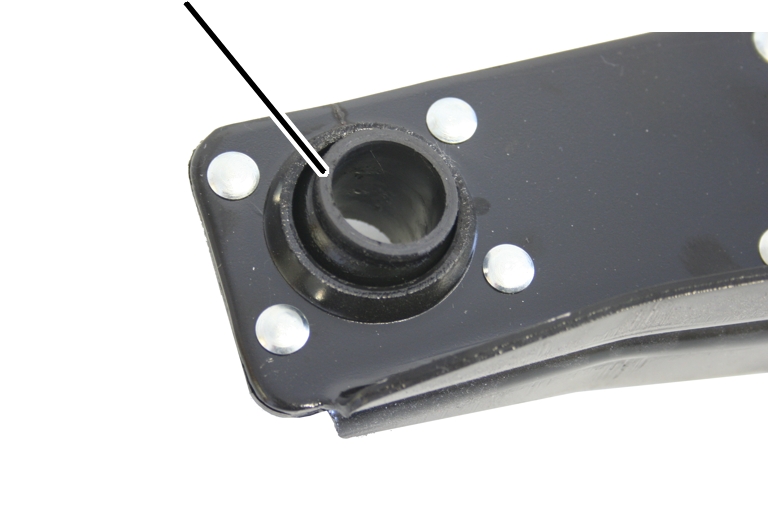

Ball bushing



*    Remove bolt and SL safety clip.

*    Inspect ball bushings.

*    The ball bushings may not be damaged and should rotate freely in all directions.

*    If one of the ball bushings is damaged: remove the cross bar HB10/HB11 and install a new cross bar HB10/HB11.
