Connecting the drive

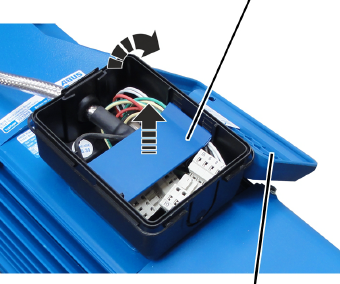

Opening the connector housing

Connecting the drive

Only with contactor control



Pin multipoint connector on the drive	Pin multipoint connector on the drive
Connection cable of drive	Rectifier for brake

    Insert the connection cable for the drive in the pin multipoint connector on the drive.

    Insert the rectifier for the brake in the pin multipoint connector on the drive.

    Lay the plug-in connections and connection cable in the connector housing.





Only for frequency converter



Pin multipoint connector on the drive	Pin multipoint connector on the drive
Bush multipoint connector for drive	Bush multipoint connector for drive

    Insert the bush multipoint connector for the drive on the pin multipoint connector on the drive.

    Insert the bush multipoint connector for the brake on the pin multipoint connector on the drive.





Plug-in connection	Cable bushing
Screening clamp connection	Connection cable

    Push the front end of the connection cable (where the sheathing around the shield has been removed) into the screening clamp connection.

    Fasten the connection cable to the screening clamp connection using cable ties.

    Lay the plug-in connections and connection cable in the connector housing.





Closing the connector housing
