Connecting connection cables to crane panels

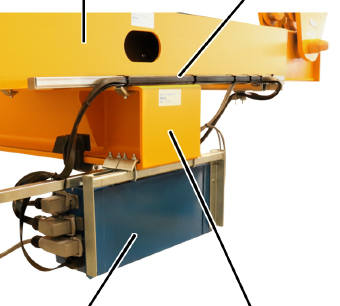

End carriages

Connection cable

Crane panel

Main girder

*    Insert connectors and coupler plugs in the socket on the crane panel.

*    Route connection cables.

*    Secure the connection cables with cable clips.

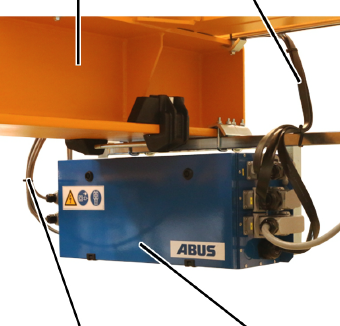

Main girder

Connection cable

Connection cable

Crane panel

●   The connection cables have been laid.
