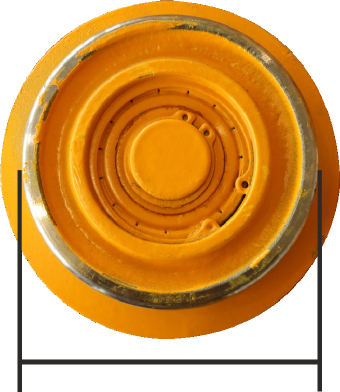

Measure the diameter of
the wheel at multiple points over the width of the wheel.
The diameter may not be
smaller than is specified in the table.
If the diameter is smaller, the wheel must be replaced.
|
Size |
Maximum permissible wear |
Minimum diameter of wheel |
|
DL 80 |
-3 mm |
77 mm |
|
DL 112 |
-3 mm |
109 mm |
|
DL 140 |
-3 mm |
137 mm |
