Changing the fuses



Changing the main fuse F1

If the fuse is used in a circuit breaker:



Fuse link



Circuit breaker

*    Pull out the circuit breaker.

*    Replace the fuse link.

*    Click the circuit breaker back into place.





If the fuses are individually screwed in:

Screw cap



*    Unscrew the screw cap.

*    Replace the fuse link.

*    Screw the screw cap back on.





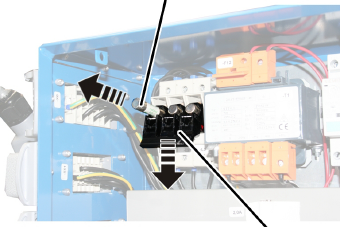

Changing the control current circuit input fuses F10 and F11



Fuse holder



Fuse link

*    Flip open the fuse holder.

*    Open the fuse holder.

*    Replace the fuse link.

*    Close the fuse holder.

*    Click the fuse holder back into place.





Changing the control current circuit output fuse F12

Fuse holder



*    Detach the fuse holder from the mount on the transformer.

*    Replace the fuse link.

*    Reinsert the fuse holder.
