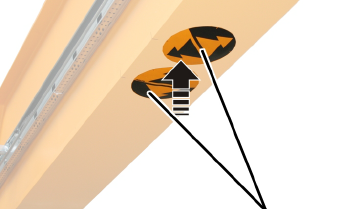

Operating direction signs |
Rotate the operating
direction signs to match how they are marked in the layout plan.
For spans under 10 m
only: Attach operating direction signs for the crane and trolley under the
middle of the main girder.
Only for spans greater
than 10 m: Attach operating direction signs for the crane and trolley to the
left and right, in each case 2.5 m away from the end carriage.
