Lubrication ex works with multi-purpose grease “High-Lub LT1 EP”, item number 317880.

Quantity: Apply a liberal coating of lubricant using a brush.

Alternative: Multi-purpose grease “High-Lub”, item number 318490 (cartridge with 400 g).

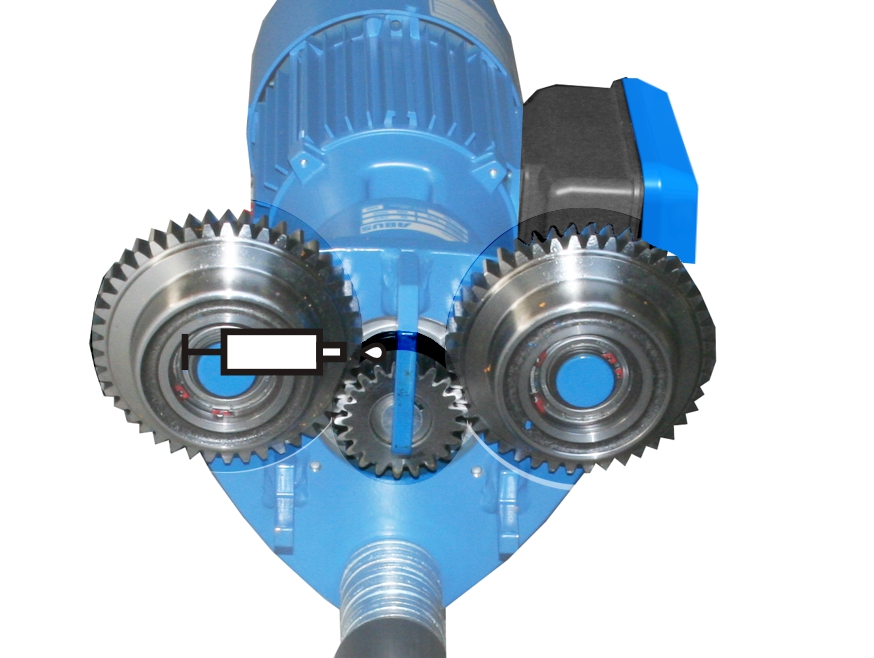

   Lubricate gear rims:

─     When the drive is disassembled and reassembled

─     When carrying out a general overhaul.

   Regularly check that the gear rims are completely lubricated and the lubricant is not dirty.

   If the lubricant is dirty: Clean the gear rims and reapply lubricant.

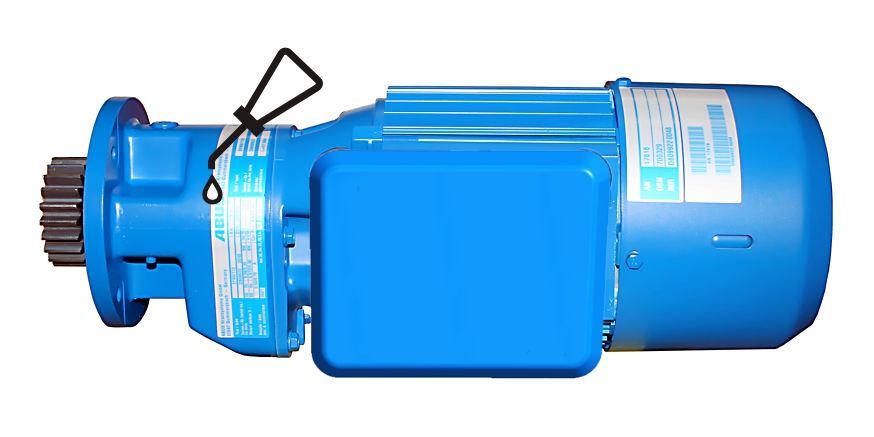

Lubrication ex works using lubricant with the standard designation GP 00 K-45 (DIN 51502)

Quantity:

─     Size 80/112: 130 cm³

─     Size 140: 200 cm³

   The gear unit is lubricated ex works for its entire length of service.
