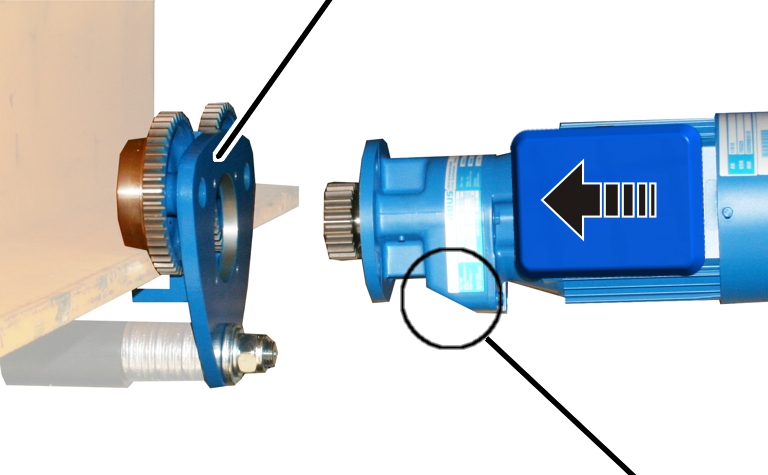

Align the drive with the flattened gear side facing down.

   Slide the drive in the powered side panel.

   Bolt on the drive with the rib screws M6x20 (4x). Tightening torque 10 Nm.

   Lubricate all three gear rims. Apply a liberal coating of lubricant using a brush.

Recommendation: Multi-purpose grease “High-Lub LT1 EP”, item number 317880.

Alternative: Multi-purpose grease “High-Lub”, item number 318490 (cartridge with 400 g).
