Overview of tightening torques

Overview of tightening torques

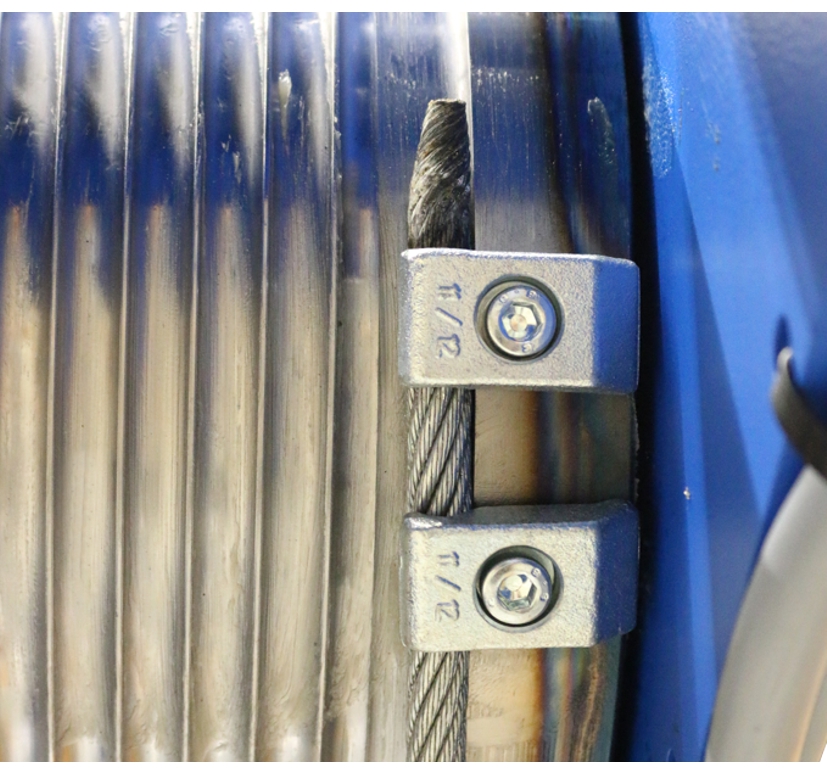

End clamp

Size	Fillister-head screw	Number	Tightening torque
GM 800	M6x16	2	10 Nm
GM 1000	M8x20	2	25 Nm
GM 2000	M8x20	2	25 Nm
GM 3000	M8x20	2	25 Nm
GM 5000	M16x35	3	210 Nm
GM 6000	M16x35	3	210 Nm
GM 7000	M20x40	3	425 Nm

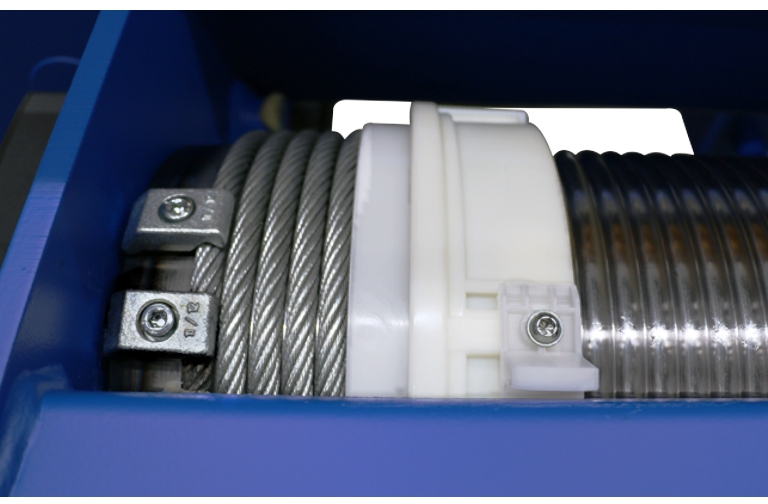

Rope guide runner

Size	Screw	Tightening torque
GM 800	Self-tapping screw M6x16	5 Nm
GM 1000	Self-tapping screw M6x16	5 Nm
GM 2000	Self-tapping screw M6x16	5 Nm
GM 3000	Self-tapping screw M6x16	5 Nm
GM 5000	Self-tapping screw M6x16	5 Nm
GM 6000	Self-tapping screw M6x16	5 Nm
GM 7000	Self-tapping screw M6x16	5 Nm

Only with GM 800, GM 1000, GM 2000, and GM 3000

Joining element

Size	Screw	Number	Tightening torque
GM 800	Self-tapping screw M6x16	4x	5 Nm
GM 1000	Self-tapping screw M6x16	4x	5 Nm
GM 2000	Self-tapping screw M6x16	4x	5 Nm
GM 3000	Self-tapping screw M6x16	4x	5 Nm

Only with wire rope hoist with reeving 2/1, 4/1 or 6/1

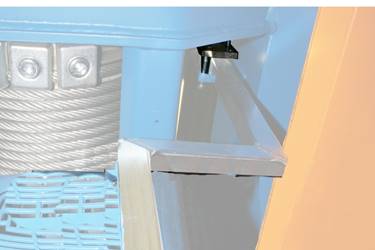

Dead end rope grip

Size	Rib nut	Tightening torque
GM 800	M6	5 Nm
GM 1000	M8	10 Nm
GM 2000	M8	10 Nm
GM 3000	M8	10 Nm
GM 5000	M14	49 Nm
GM 6000	M14	49 Nm
GM 7000	M16	107 Nm

Lift-off protection device ZLK with trolley D, DA

─ Rib nut M8

─ 2x per lift-off prevention device

─ 15 Nm

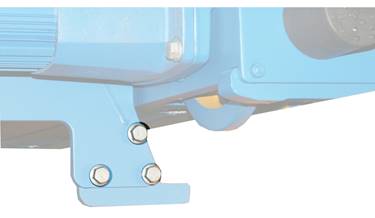

Lift-off prevention device trolley DQA

Type and size	Number	Tightening torque
Rib screw M12x30	3x	115 Nm
Rib screw M16x35	3x	210 Nm

Trolley towing arm trolley DQA

─ Hexagon head screw M8 with hexagonal nut

─ 6x

─ 25 Nm
