Loading and unloading the drive



Observe the following points amongst others:



Only with AZP 130 and 160 drives
and E 100, 130, 160 and 200 drives



No eyebolts can be screwed into the drive.



*   Sling the drive in suitable lifting tackle (e.g. round slings).

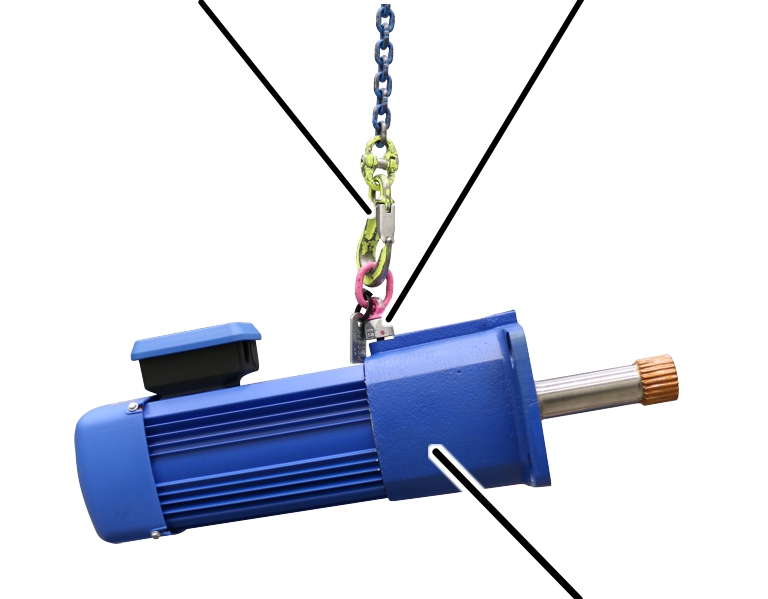

Only with AZP 200 and 280 drives



Lifting tackle

Eyebolt



Drive

*   Screw suitable eyebolt into the drive.

*   Sling suitable lifting tackle into the eyebolt.

●   The drive will not be suspended horizontally depending on the motor.
