Note:

Synthetic lubricants may not be mixed with mineral-based lubricants.

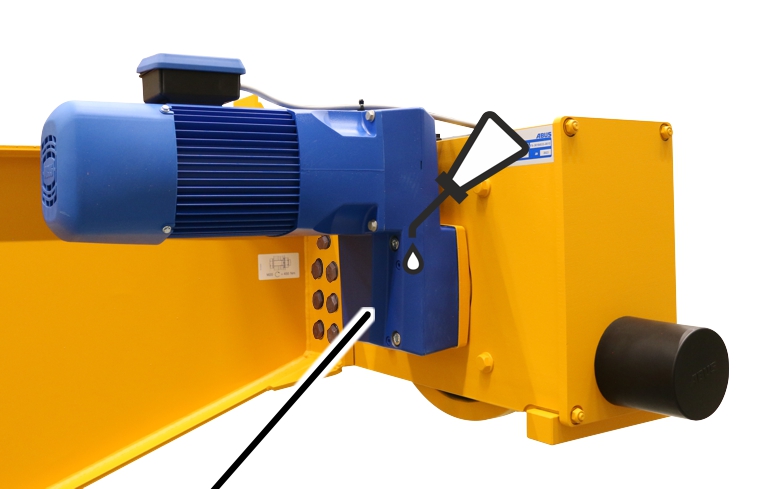

Lubrication ex works with “Shell Omala Oil 460”.

Quantity: 1000 ml

The gear unit in the drive is lubricated for its entire service life. At the end of its service life (in a general overhaul), assess whether the lubricant needs to be changed.

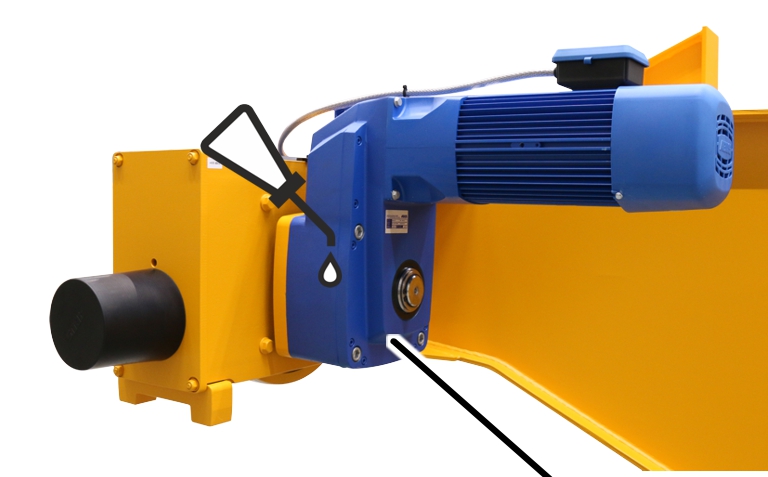

Lubrication ex works with “ARAL ATF 22”.

Quantity: 3000 ml

The gear unit in the drive is lubricated for its entire service life. At the end of its service life (in a general overhaul), assess whether the lubricant needs to be changed.

Lubrication on site with “Fuchs Lubritech high temperature paste PBC 1574”, ABUS item number 6758.

Lubrication ex works with “Fuchs Lubritech high temperature paste PBC 1574”, ABUS item number 1571.

Quantity: Apply lubricant with brush to coat surface completely.

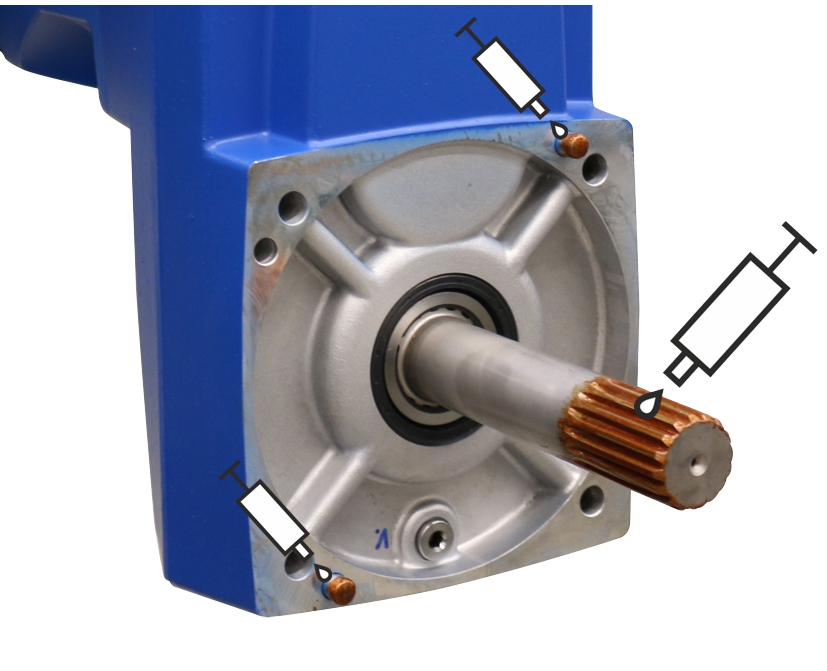

Lubricate pins:

─     When assembling or disassembling the gear unit.

For details, see Installing the drive.

Lubricate the gearing on the output shaft:

─     When assembling or disassembling the drive

─     After 10 years

─     When carrying out a general overhaul

For details, see Installing the drive.
