Only with cranes with additional functions via direct access buttons
Individual additional functions on the crane can be called up via direct access buttons or opened in the menu.
|
|
Danger due to button assignment with two-hand operation! If the functions for releasing the load in two-hand operation lie on two direct access buttons, it can happen that instead of just one, both buttons are directly pressed. The load could then be released unintentionally, killing or injuring people. Do not use direct access buttons for functions with two-hand operation! |
|
|
Danger due to missing button labels! The direct access buttons for the additional functions are labelled with “O1” to “O6” and cannot be individually labelled. Thus, other persons do not know which functions are controlled by these direct access buttons. Carefully instruct crane operators! |
|
| |
|

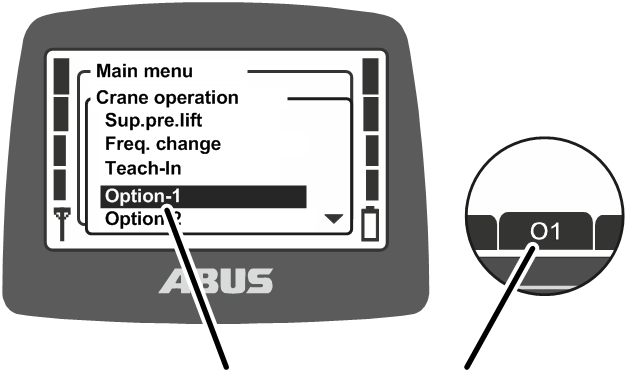

Menu item “Option 1” to “Option 6” |
Direct access button “Option 1” to “Option 6” |
Either:
Press direct access button “Option 1” to “Option 6” (O1 to O6).
Or:
Open the main menu with the MENU button,
open the menu “Crane operation”,
open the menu item “Option 1” to “Option 6”.
● The additional function is activated.
