The transmitter no. and crane no. are set here. These numbers are used to uniquely identify and assign the crane and transmitter. They have no technical significance or function in ABURemote, but are displayed exclusively for the crane operator at various points.

Transmitter no. and crane no. are displayed in “Standby” operating mode and the crane no. is displayed in “Normal” operating mode in the top right corner.

Transmitter no. and crane no. can be attached to the crane and transmitter by means of adhesive labels. Special adhesive labels can be obtained from ABUS. See ABUS Service.

   Open the main menu with the MENU button.

   Open the “Settings” menu.

   Enter the code for the “Settings” menu.

See Entering the code or PIN.

The code for the menu is “0005”.

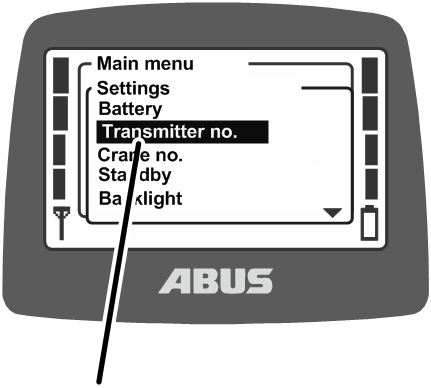

   Open the “Transmitter no.” menu item.

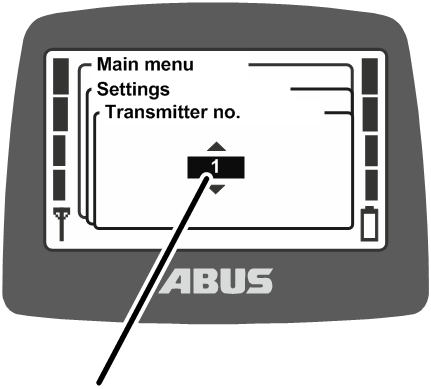

●   The display shows the current transmitter no.

   Set the required transmitter no.

   Confirm using ENTER.

●   The transmitter no. is saved.

   Open the main menu with the MENU button.

   Open the “Settings” menu.

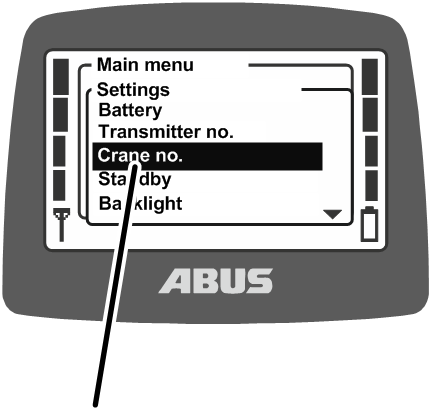

   Open the “Crane no.” menu item.

The menu item can only be opened with the transmitter logged in.

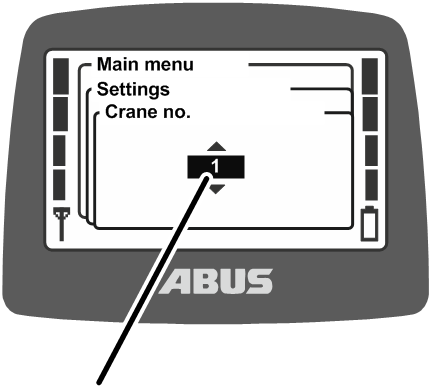

●   The display shows the current crane no.

   Set the required crane no.

   Confirm using ENTER.

●   The crane no. is saved.

●   The message “Receiver: number has been changed” is displayed.

   Confirm using ENTER.

   Log out the transmitter and then log it back in.
