Setting the direct access buttons

The four arrow buttons under the display can be allocated functions as direct access buttons in “Normal” operating mode (e.g. tare, super-precision lifting, etc.).


Menu item in the “Crane operation” menu	Symbol for the direct access button

These functions can then either be opened using the corresponding menu items in the “Crane operation” menu on the transmitter, or they can be called up with one of the direct access buttons. Using the direct access buttons, the functions can be opened quickly and easily in “Normal” operating mode without having to open the menu beforehand. This is useful for the most frequently used functions.

Seldom-used functions are best operated using the menu to allow the direct access buttons to remain free for the most frequently used functions.

A number of functions can only be operated using the direct access buttons and cannot be opened using menu items in the menu.

The allocation of the four direct access buttons appears at the lower edge of the display.

Meaning of the symbols

─ Symbol with black backlighting: The function is available and can be selected.

─ Symbol with white backlighting: The function is currently unavailable.

─ Symbol completely white: No function has been selected for this direct access button.

Available functions:

Symbol	Description	Function
	Zero with two arrows	“Tare”
	Light bulb	“Lighting”
	Hatched wall with arrow	“Limit switch”
	Closed padlock	“Log in” Crane is logged out. Press “Log in”.
	Open padlock	“Log out” Crane is logged in. Press “Log out”.
	Closed double padlock	“Tandem login” Crane is not logged in in tandem operation. Press “Tandem login”.
	Open double padlock	“Tandem logout” Crane is logged in in tandem operation. Press “Tandem logout”.
	Ruler with detailed scale	“Sup.pre.lift on” Super-precision lifting is switched off. Press to switch on.
	Ruler with coarse scale	“Sup.pre.lift off” Super-precision lifting is switched on. Press to switch off.
	'T' with arrow	“Teach-In”
	Line with two arrows	“Positioning”
	'O' with numbers 1 to 6	“Option” 1 to 6
	Suspended load at rest with two arrows	“Sway control on” Sway control is switched off. Press to switch on.
	Swaying load	“Sway control off” Sway control is switched on. Press to switch off.
	Arrow with hash key	“Freq. change”

Warnung stürzende Last

Danger due to button assignment with two-hand operation!

If the functions for releasing the load in two-hand operation lie on two direct access buttons, it can happen that instead of just one, both buttons are directly pressed. The load could then be released unintentionally, killing or injuring people.

Do not use direct access buttons for functions with two-hand operation!

Warnung stürzende Last

Danger due to missing button labels!

The direct access buttons for the additional functions are labelled with “O1” to “O6” and cannot be individually labelled. Thus, other persons do not know which functions are controlled by these direct access buttons.

Carefully instruct crane operators!

Allocating direct access buttons


Menu item “Direct access”

Open the main menu with the MENU button.

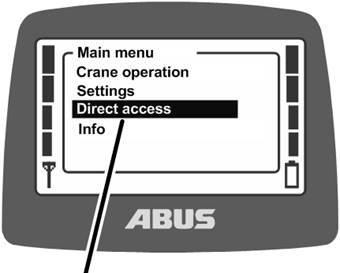

Open the “Direct access” menu.


Arrow button to which a function should be allocated.

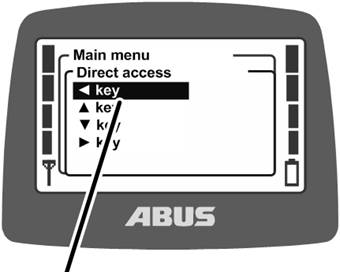

Select the arrow button which is to be allocated a function.


Function for the direct access button

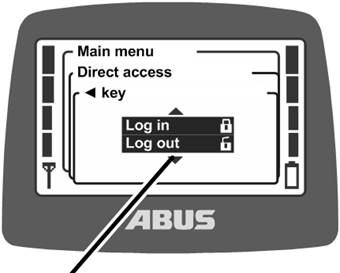

Select the required function.

Confirm using ENTER.

If this function was already allocated to another direct access button:

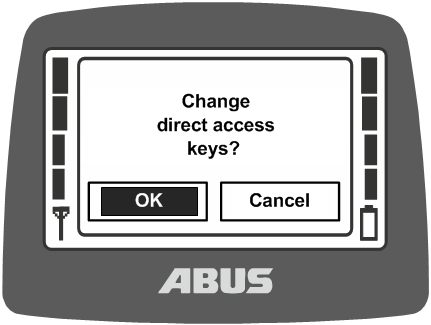

● The message “Change direct access keys?” appears on the display.

Select the “OK” button and confirm.

Quit the menu.

Function selected

Direct access button selected

● The function is saved.

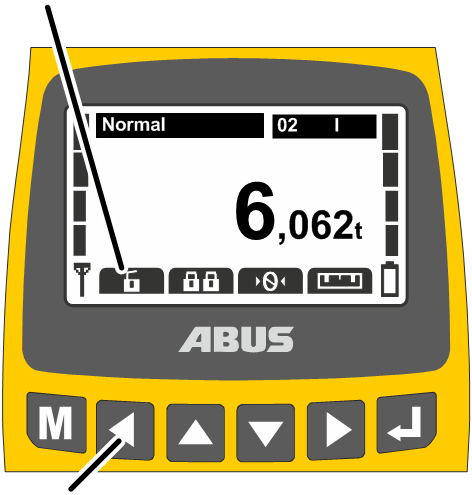

● The required function appears in the display in the ‘Normal’ operating mode above the direct access button selected.
