Whether or not the current radio channel is to be shown on the display in “Normal” operating mode is set here.

This can be helpful if problems occur with the automatic selection of the radio channel.

If the channel display is switched on in “Normal” operating mode, the current radio channel is displayed at the bottom left instead of the antenna symbol.

The menu item can be opened with the transmitter logged out or with it logged in.

   Hold MENU depressed (5 seconds).

●   The code query appears on the display.

   Enter the code for the service menu.

See Entering the code or PIN.

The code for the service menu is “0055”.

   Open the “Radio” menu.

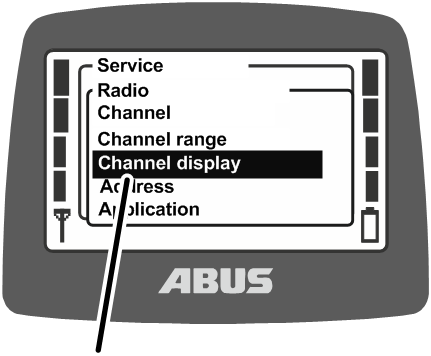

   Open the menu item “Channel display”.

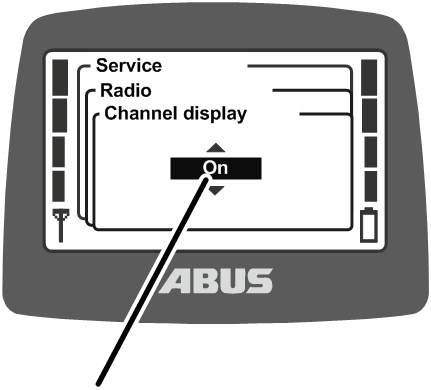

●   The display indicates whether the channel display is currently switched on or off.

   Switch the channel display on or off.

   Confirm using ENTER.
