The application of the transmitter is set here. The application is a number which represents the model and specific version of transmitters. The set application must match the model of the transmitter while also matching the connected receiver.

The application defines these variants:

─     Model of the transmitter (ABURemote Button or Joystick)

─     Transmitter version (standard transmitter or transmitter with three joysticks)

─     Versions of the joystick (two-stage or proportional joystick)

─     Model of the receiver (receiver with relay or CAN bus receiver)

Sometimes it can be necessary to change the application of the transmitter, for example, if a transmitter that has previously been used with a receiver with relay is then to be used on a crane with CAN bus receiver.

The application currently set is shown in the menu item “Info”. See Displaying transmitter information.

The wireless technologies XR0 and XR2 are available for ABURemote.

─     Transmitter and receiver must both use the same wireless technology (both XR0 or both XR2). A transmitter with wireless technology XR0 cannot be used with a receiver with XR2 and a transmitter with wireless technology XR2 cannot be used with a receiver with XR0.

─     Several radio remote controls (combination of transmitter and receiver) with wireless technology XR0 and XR2 can be operated in parallel without any problems, e.g. within a building.

─     A radio remote control (combination of transmitter and receiver) with wireless technology XR0 can generally be exchanged for a radio remote control with wireless technology XR2.

   To find out which wireless technology is used on the radio remote control:

─     Observe the type plate on the transmitter or the receiver:
Without further specification: wireless technology XR0
With specification “XR2”: wireless technology XR2

─     Or read the wireless technology in the menu item “Info”. See Displaying transmitter information.

The menu item can only be opened with the transmitter logged out.

   Hold MENU depressed (5 seconds).

●   The code query appears on the display.

   Enter the code for the service menu.

See Entering the code or PIN.

The code for the service menu is “0055”.

   Open the “Radio” menu.

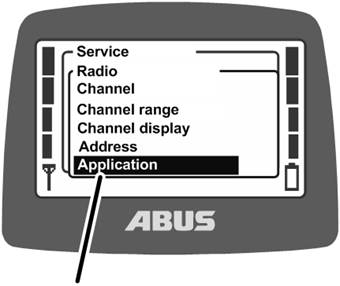

   Open the menu item “Application”.

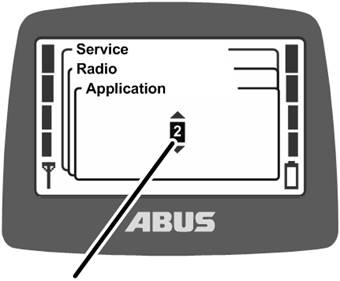

●   The application currently set is shown on the display.

   Set the application.

Applications for receivers with relay:

In rare cases, other applications must be set for the operation of older receivers.

Applications for CAN bus receivers:

   Confirm using ENTER.
