Danger due to setting the wrong address! If the transmitter’s address is changed, the transmitter is no longer assigned to the receiver and another crane can be controlled with this transmitter. This can result in accidents with the crane. Make sure that the wrong crane is not being controlled by the transmitter by mistake e.g. inform the employees affected and match the labelling of the transmitter and the crane. |
|
|
Danger due to different transmitters! If a non-identical transmitter is set with a new address, the control commands might not correlate with the labelling. This can result in accidents with the crane. Only use identical transmitters. |
The address of the receiver in the transmitter is set here. Transmitter and receiver must be set to the same address so that they can communicate with each other.
The address in the receiver is fixed and cannot be changed. In the transmitter, the address of the receiver to which the transmitter is to be connected can be set in the service menu.
In other words, the address defines which transmitter can communicate with which receiver. Transmitters and receivers can only communicate with one another when the address of the receiver is set in the transmitter.
The menu item can only be opened with the transmitter logged out.
|
| |
|

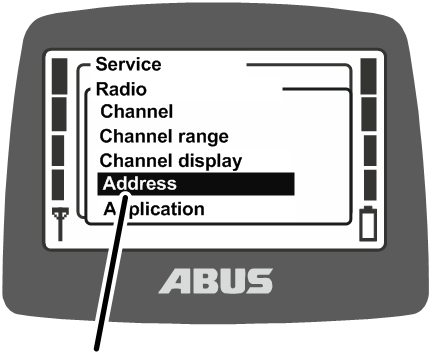

Menu item “Address” |
|
Hold MENU depressed (5
seconds).
● The code query appears on the display.
Enter the code for the service
menu.
The code for the service menu is “0055”.
Open the “Radio” menu.
Open the menu item
“Address”.
|
| |
|

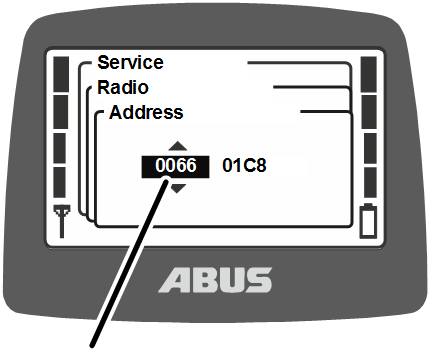

Address block (total of 8 characters for XR2, 6 characters for XR0) |
|
● The address currently set is shown on the display.
Set the new address.
The address can be entered in several blocks. With wireless technology XR2, the address is comprised of eight characters, with wireless technology XR0 it has six characters.
Confirm the input with
ENTER.
Switch the transmitter off,
remove the rechargeable batteries briefly and then reinsert them, switch the
transmitter back on again.
