Replacing the push-button caps

If a sleeve on a button is damaged (e.g. torn), the push-button cap must be replaced.

The transmitter does not require disassembly to exchange the caps.

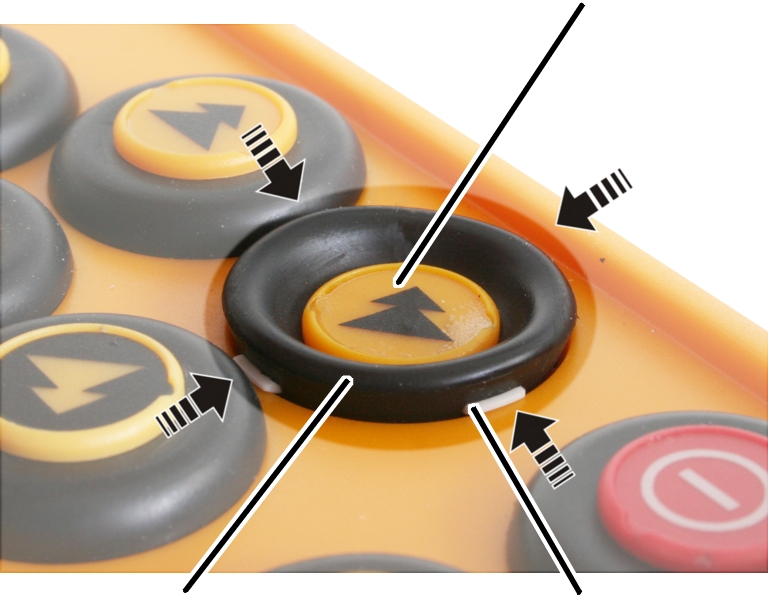

Removing the push-button cap



Actuator

Sleeve

Detent ring

*   Fully press down the actuator and hold it.

*   Using a blunt instrument, pry out the white catches of the detent ring at the top, bottom, left and right on the sleeve.

●   The push-button cap now only lies loosely on top of the transmitter.

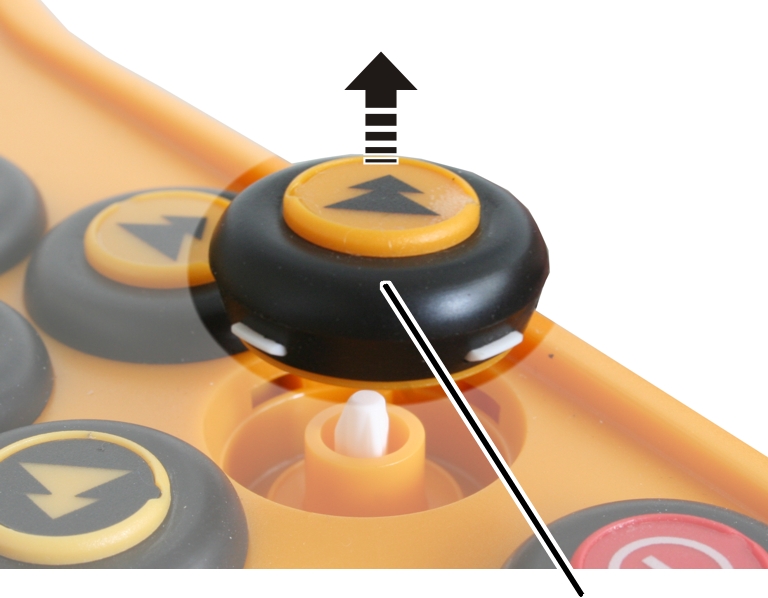

Push-button cap

*   Take off the push-button cap.





Installing the new push-button cap

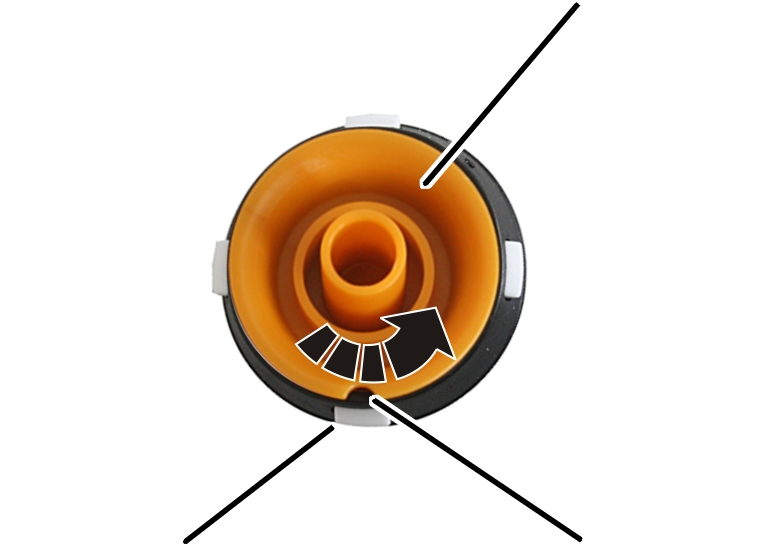

Only with push-button cap for lifting/lowering and trolley travel





Actuator

Detent ring

Undercut

*   Turn the actuator of the new push-button cap so that the undercut lies precisely against one of the catches.

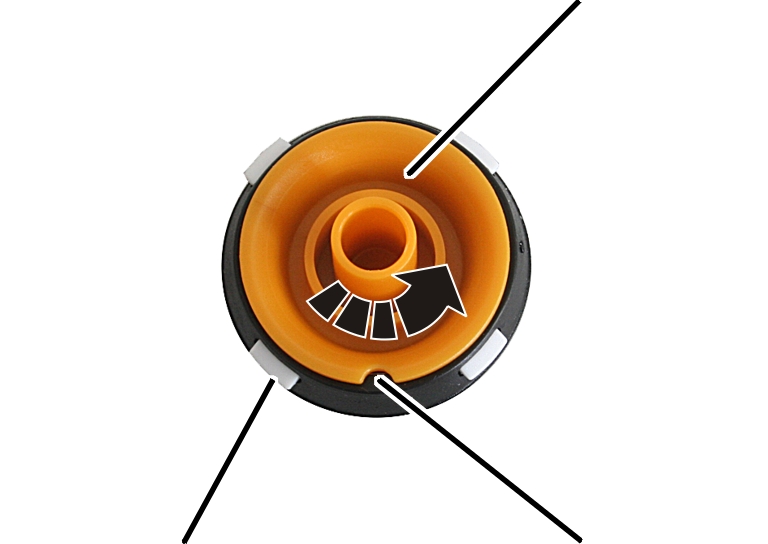

Only with push-button cap for slewing and crane travel





Actuator

Detent ring

Undercut

*   Turn the actuator of the new push-button cap so that the undercut lies precisely between two catches.

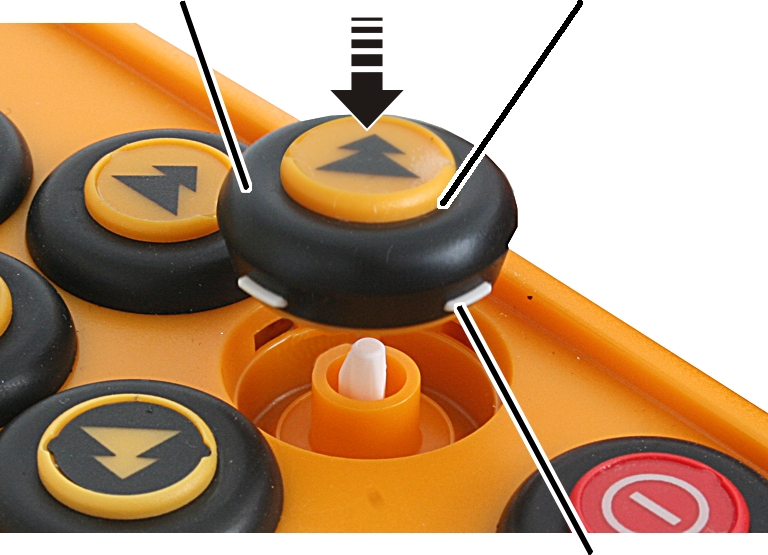

Sleeve

Push-button cap



Detent ring

*   Attach the new push-button cap. The undercut ensures that the cap fits in only a single position.

*   Press in the sleeve around the circumference until the detent ring latches.
