Danger from falling suspended load! If the suspension of a load is shared by both trolleys and one trolley is moved on its own, the load may no longer be securely suspended from the load hook, and could fall. Work with particular caution. Observe the end user's hazard analysis! |
With two trolleys on one crane, it is possible to switch back and forth between trolley I and trolley II.
After switching on the crane, the trolley is selected that was also selected when switching off.
For a crane with one trolley, you can also switch between the displays for “I” or “II” on the transmitter, but only trolley I will be controlled.
|
| |
|
HORN button |
TROLLEY TRAVEL TOWARD RIGHT button |
Either:
Press and hold the HORN button pressed halfway.
Press the TROLLEY TRAVEL TOWARD RIGHT button to select trolley II, or press the TROLLEY TRAVEL TOWARD LEFT button to select trolley I.
Release the HORN button.
Or:
Open the main menu with the MENU button,
open the menu “Crane operation”,
select the desired trolley in the menu item “Select trolley”,
confirm by pressing ENTER.
|
|

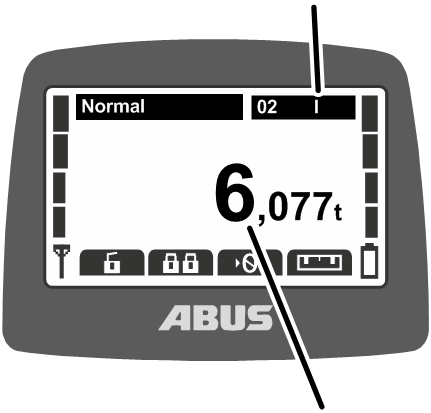

Trolley selected |
|
| |
|
|
Load of the selected trolley |
● The selected trolley is shown on the display.
● The load of the selected trolley is indicated on the display.
● Press the button to control the selected trolley.
On a crane with joint operation, it is also possible to switch back and forth between trolley I and trolley II in joint operation of both trolleys.
|
| |
|

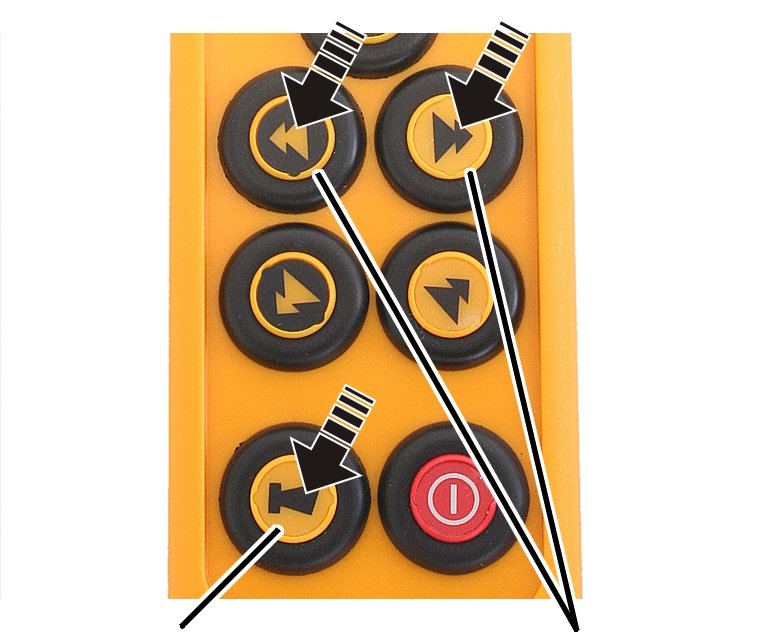

HORN button |
TROLLEY TRAVEL TOWARD RIGHT and TROLLEY TRAVEL TOWARD LEFT buttons |
Either:
Press and hold the HORN button pressed halfway.
Simultaneously press the TROLLEY TRAVEL TOWARD LEFT and TROLLEY TRAVEL TOWARD RIGHT buttons to select both trolleys for joint operation.
Release the HORN button.
Or:
Open the main menu with the MENU button,
open the menu “Crane operation”,
select the value “I+II” in the menu item “Select trolley”,
confirm by pressing ENTER.
|
|

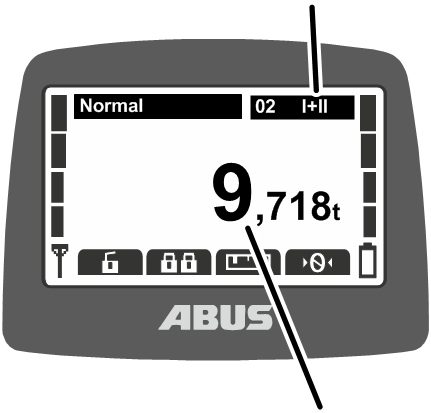

Trolley I+II | |
|
| ||
|
|
Total load trolley I and trolley II | |
● Trolley I+II appears on the display.
● The total load on trolley I and II appears on the display.
Press the buttons to operate trolley I and II at the same
time.
