Danger from electric shock!
The housing contains some parts with live voltage which could lead to electric shock.
Before opening the receiver, completely switch off the receiver or the entire crane.
In the case of repairs or replacement, the receiver must be opened.
|
|
Danger from electric shock! The housing contains some parts with live voltage which could lead to electric shock. Before opening the receiver, completely switch off the receiver or the entire crane. |
|
Upper clip fasteners |
Cover |
|
| |

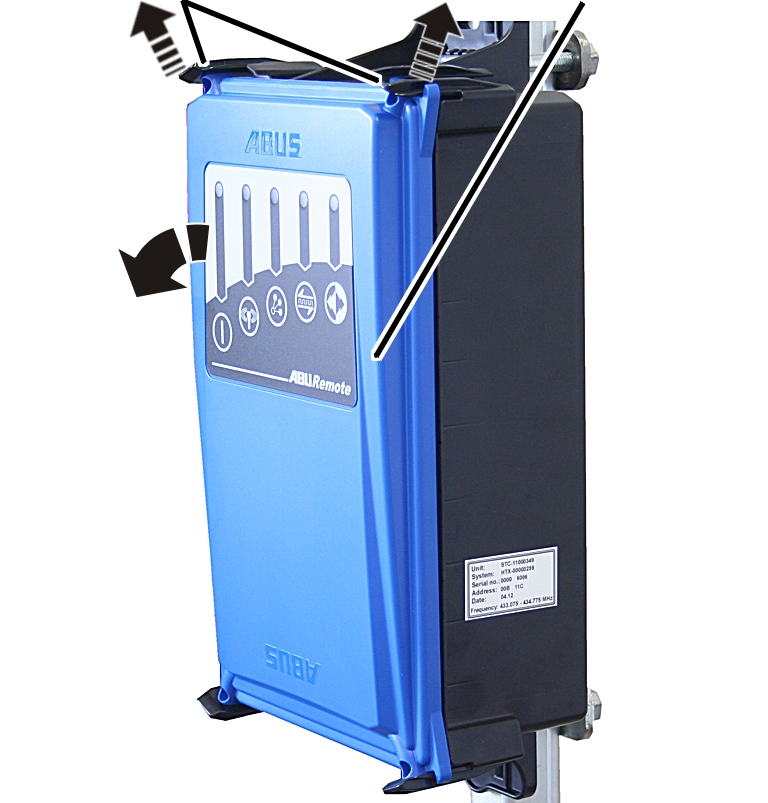

Remove the semi-round head screws (4x) from the cover.
Lightly push the two clip fasteners at the top outwards.
At the same time, pull the upper part of the cover away from the
housing.
|
| |
|
Lower clip fasteners |
|

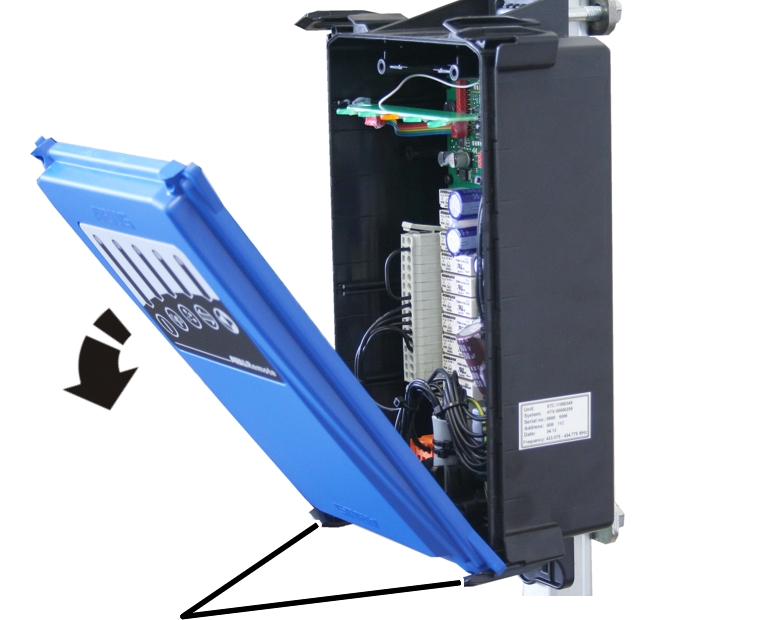

Tilt the cover downwards until it is almost horizontal.
● The cover will be automatically released from the lower clip fasteners when it is tilted.
Lay the cover aside.
|
|
Clip fasteners |
|
| |
|
Cover |
|

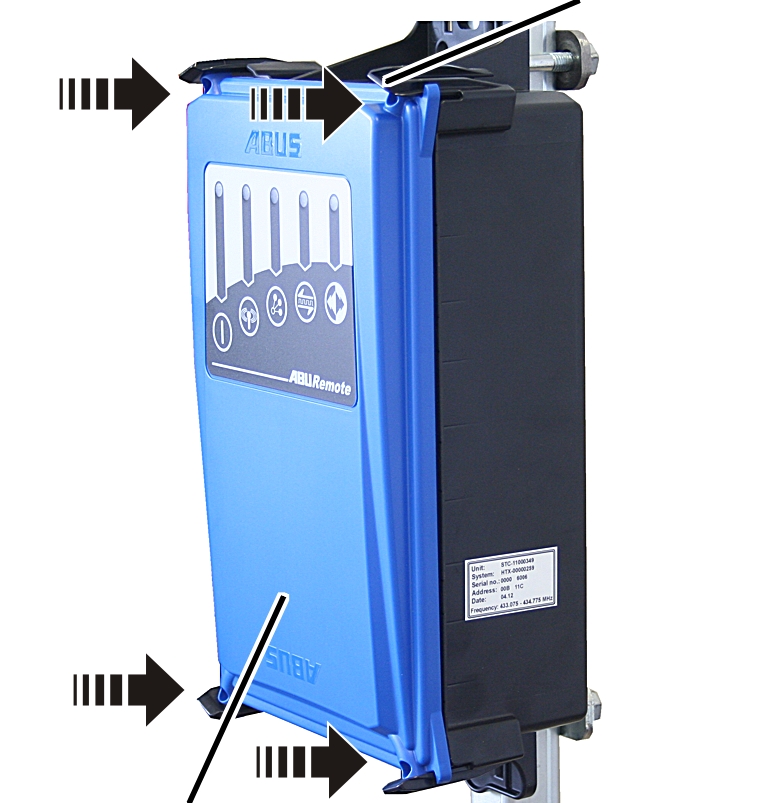

Place all four corners of the cover onto the housing.
Clip the cover into all four clip fasteners at the same time.
Screw the cover into place using semi-round M3.5x14 head screws.
0.5 Nm.
