─     With tandem control system: To allow another transmitter to operate the crane in tandem operation, the transmitter must be logged out. Simply switching off a logged-in transmitter or waiting until it changes to “Standby” operating mode will not suffice.

   Either:

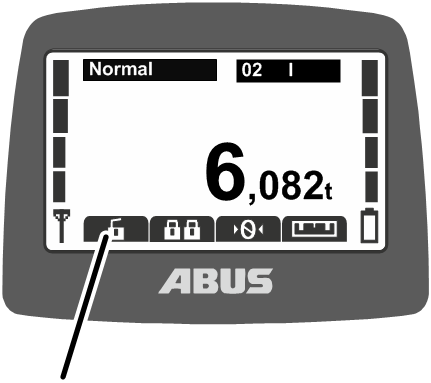

Press the direct access button “Log out” (opened padlock).

Or:

Open the main menu with the MENU button,

open the menu “Crane operation”,

open the menu item “Log out”.

●   The transmitter logs out at the crane and reverts to the “Not logged in” operating mode.

●   With tandem control system: Another transmitter can now operate the crane in tandem operation.

The transmitter can also be logged out of the receiver. This is particularly useful when a transmitter is to be logged out, but is currently unavailable (e.g. locked away).

   Switch off the crane at the mains switch.

●   The entire crane, including the receiver, is switched off.

   Wait at least 30 seconds.

●   The receiver loses the information as to which transmitter was logged in.

●   If the transmitter is switched on: Message 101 “Receiver disconnected” appears on the display and the transmitter logs out.

   Switch on the crane at the mains switch.

●   Another transmitter can now log in to this crane.

To switch off the transmitter:

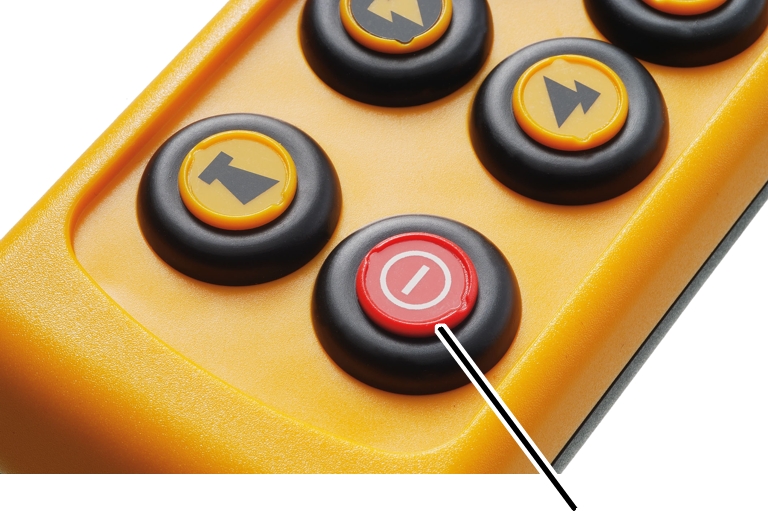

   Press down the On/Stop button and hold it.

●   The transmitter goes out.

●   The transmitter is however still consuming a small amount power.

Tip:

   The transmitter can be laid in the charging cradle after use.

The transmitter is thereby automatically charged and is easy to find when working with it again.

In the event of extended downtimes:

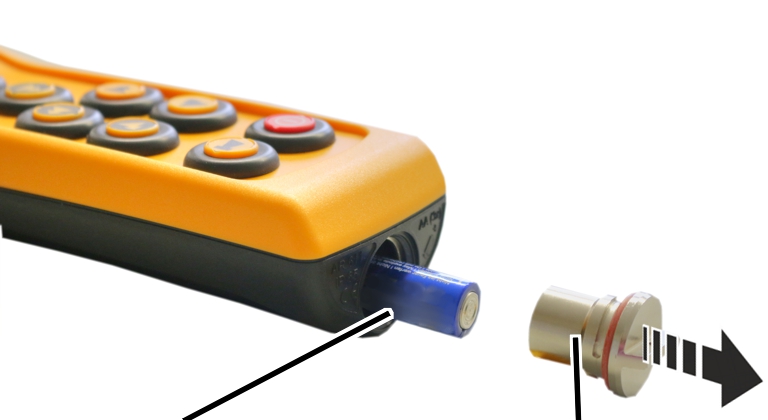

   Unscrew the cap from the battery compartment.

   Remove the rechargeable batteries.

   Screw the cap of the battery compartment closed.
