Destruction of the receiver!
If the receiver for ABURemote AC is connected to a chain hoist with direct control by mistake, the receiver will be destroyed. Check the control carefully.
For chain hoists for which only lifting and lowering as well as optional trolley travel is to be controlled, the radio remote control ABURemote AC is used. A compact receiver is then directly mounted on the chain hoist.
The receiver for ABURemote AC can only be used on chain hoists with electronic control. Chain hoists with direct control cannot be controlled remotely using ABURemote AC.
|
|
Destruction of the receiver! If the receiver for ABURemote AC is connected to a chain hoist with direct control by mistake, the receiver will be destroyed. Check the control carefully. |
|
| |
|

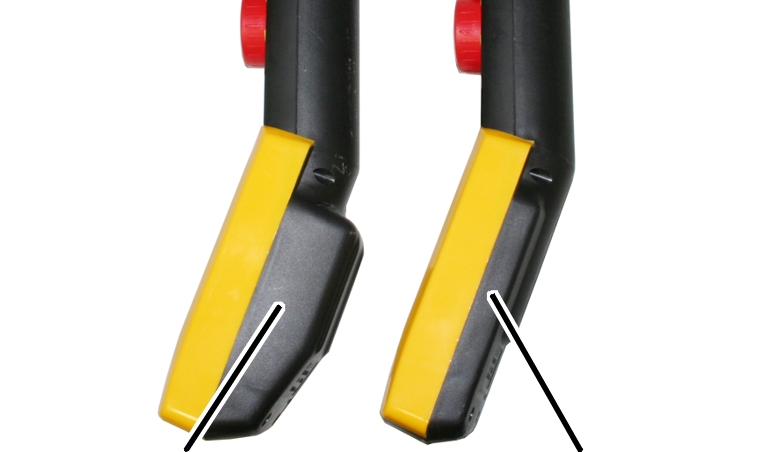

Pendant control direct control |
Pendant control electronic control |
Check whether the pendant
control has a flat bottom part of housing for electronic control.
Only put the receiver into
operation if the bottom part of the housing of the pendant control is flat.
If necessary:
|
Socket housing |
Fillister-head screws |
|
| |

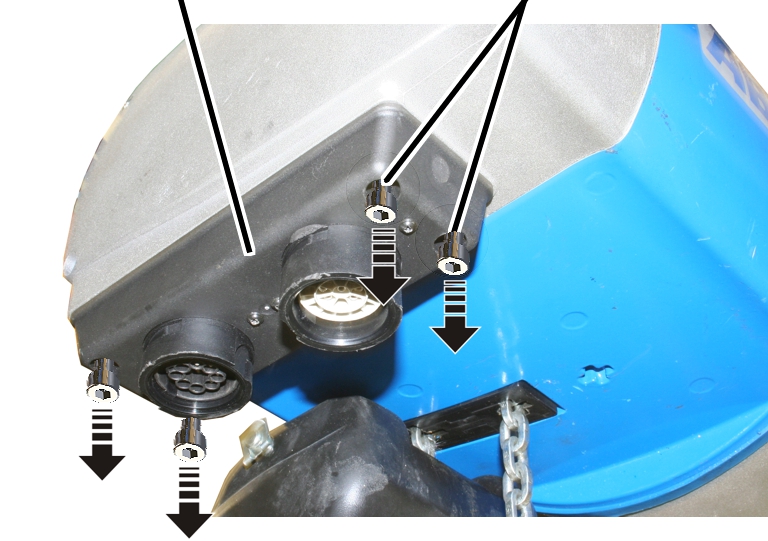

Unscrew the fillister-head
screws M5 x 16 (4x) from the socket housing.
|

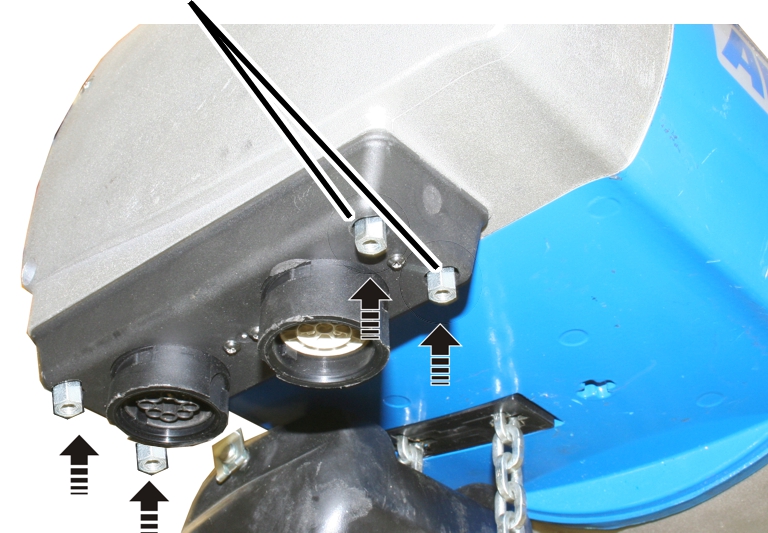

Spacing bolts |
|
|
| |
Screw the spacing bolts (4x)
into the socket housing in place of the fillister-head screws. Screw until
hand-tight.
|
Mounting bracket |
Fillister-head screws |
|
| |

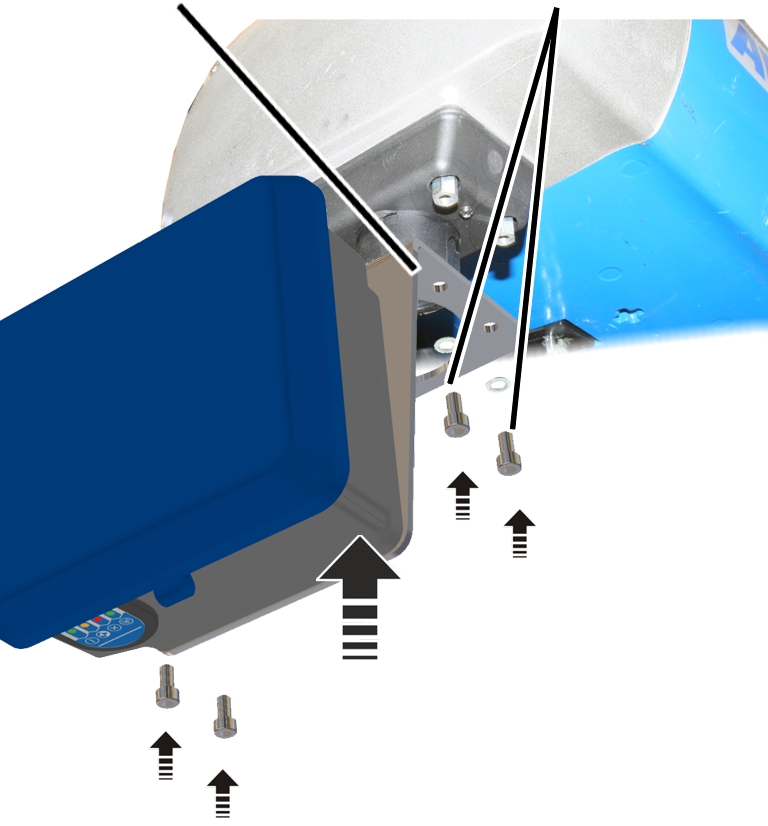

Hold the mounting bracket of the
receiver under the spacing bolts.
Screw the mounting bracket in
place with the fillister-head screws M5x16 and washers (4x) until hand-tight.
|
| |
|

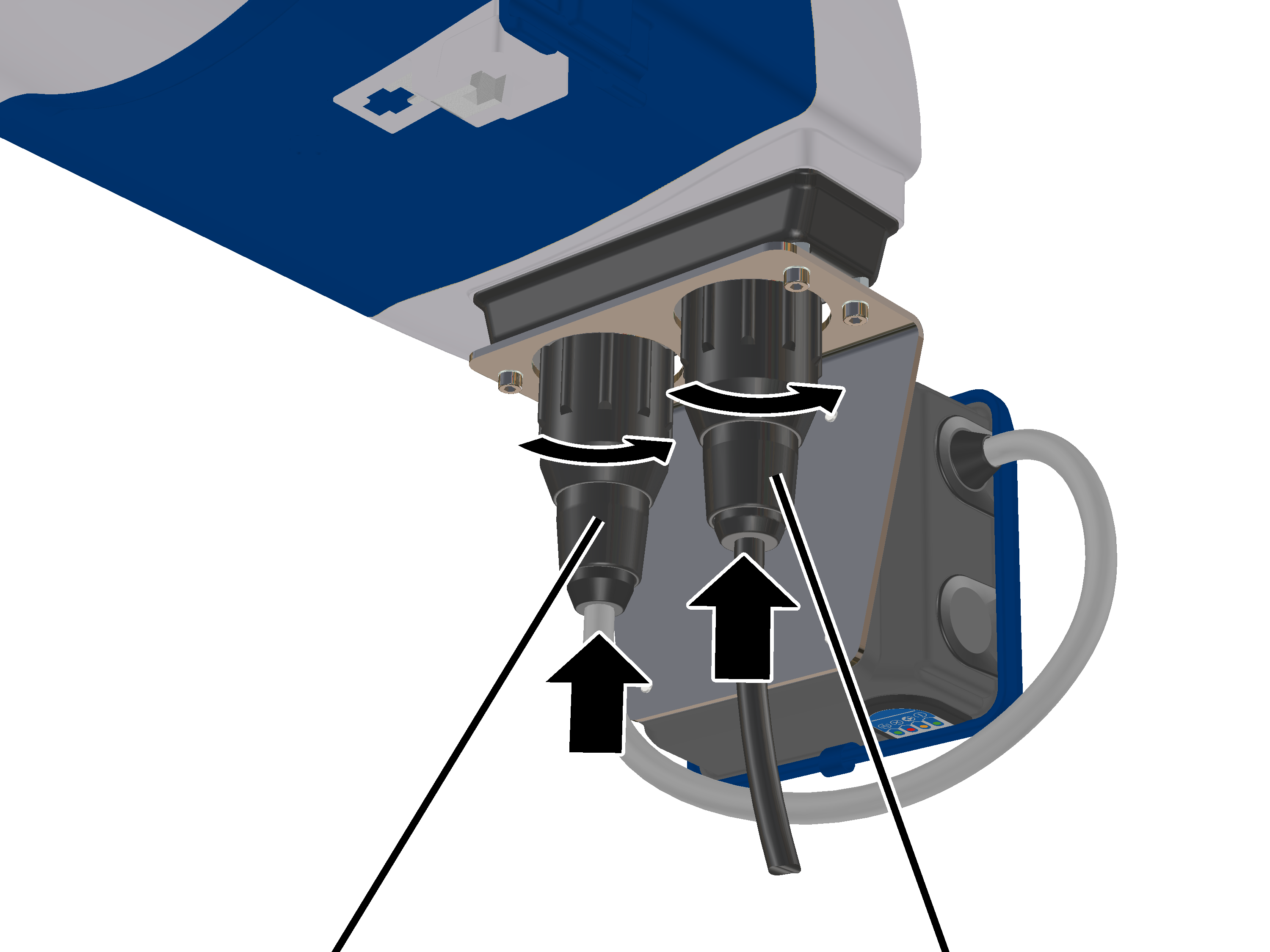

Bayonet connector of receiver |
Bayonet coupling of connection cable |
Insert the bayonet coupling of
the connection cable and the bayonet connector from the receiver. Due to a
notch, the plug-in connections will only fit together in one position.
Slide on and tighten the bayonet
nuts.
