An electronic type plate can be displayed in the main menu. This will show various information on ABURemote.

   Open the main menu with the MENU button.

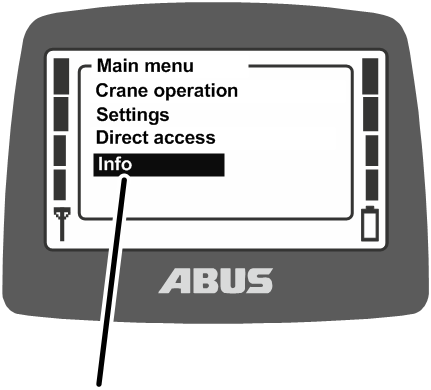

   Open the menu item “Info”.

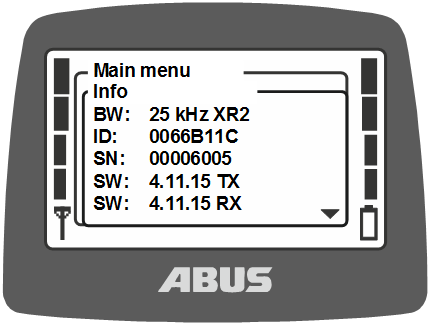

●   Information on the transmitter appears in the display.

─     BW:

Bandwidth of the radio channel (e.g. 25 kHz)

Wireless technology (Without further specification: XR0, with specification “XR2”: XR2 wireless technology)

─     ID: Set address of the receiver on the transmitter.

─     SN: Serial no. of the transmitter

─     SW: Software version Tx (transmitter)

─     SW: Software version Rx (receiver)

─     AP: Application Tx (transmitter)

─     AP: Application Rx (receiver)

   Scroll through the information list with the UP and DOWN arrow buttons.
