The radio remote control is comprised of:

─     Transmitter for ABURemote

─     Receiver

─     Inductive charging cradle with power pack and wall bracket

─     Protective case with carrying strap, belt clip and hand loop

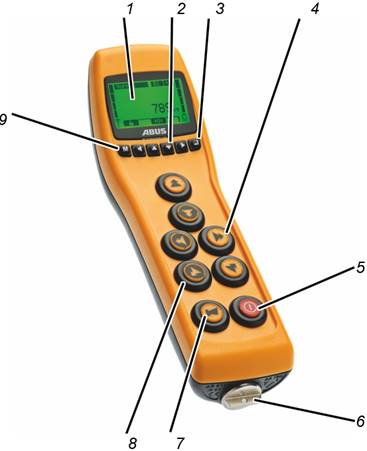

Transmitter for ABURemote Button:

─     1: Display

─     2: Arrow buttons / Direct access buttons

─     3: ENTER

─     4: Buttons for crane travel, trolley travel, lifting/lowering

Only for jib crane: Instead of the buttons for crane travel there are buttons for slewing.

Only for ABURemote AC: Instead of the buttons for crane travel there are dummy plugs.

─     5: On/Stop button

─     6: Cap of battery compartment

─     7: HORN button

─     8: Sleeve

─     9: MENU

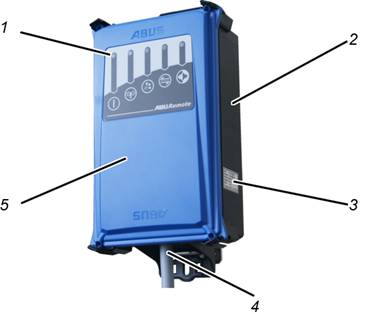

Receiver with relay:

─     1: Status LEDs

─     2: Housing

─     3: Type plate

─     4: Connection cable

─     5: Cover

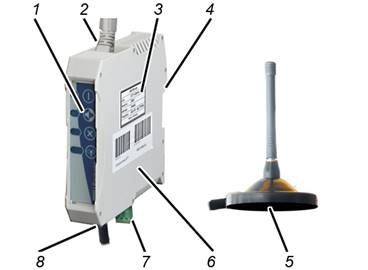

CAN bus receiver:

─     1: Status LEDs

─     2: Connection cable for CAN bus network (from above)

─     3: Type plate

─     4: Fastening for top-hat rail

─     5: Magnetic base antenna

─     6: Housing

─     7: Mains connection (from below)

─     8: Connection for magnetic base antenna

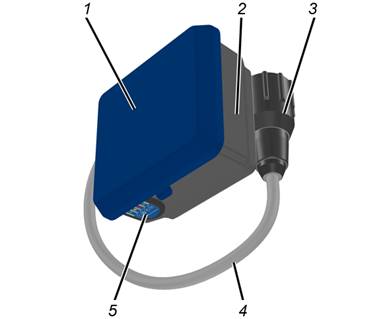

Receiver for ABURemote AC:

─     1. Housing cover

─     2. Housing base

─     3. Bayonet connector for chain hoist

─     4: Connection cable

─     5: Status LEDs

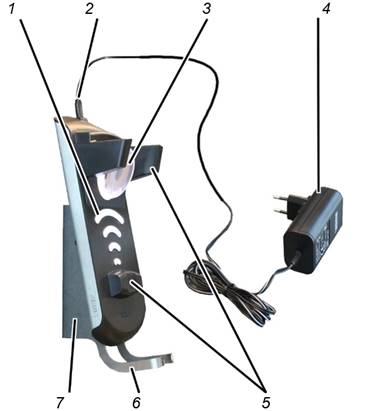

Inductive charging cradle:

─     1: Charge state gauge

─     2: Micro-USB connection for voltage supply

─     3: Induction coil for contactless battery charging

─     4: Power pack

─     5: Magnetic support

─     6: Holding bracket

─     7: Wall bracket

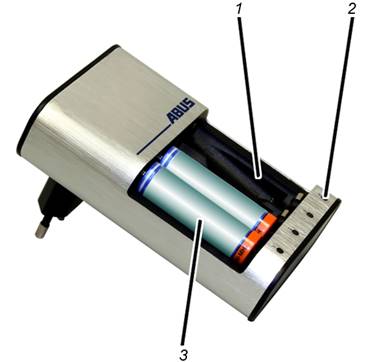

Battery charger

─     1: Charging slots

─     2: Charge state gauge

─     3: Battery
