Overriding travel limit switch of a bypass control

Only with override travel limit switch



Using the “Limit switch” function, the travel limit switch of a bypass control (e.g. for tall machines which the crane is usually not allowed to travel over) can be overridden. The crane can then be moved into the blocked area at a slow speed (e.g. to set up the machine).

This function can only be opened using a direct access button.



Only with protected function “Override travel limit switch”

The function “Override travel limit switch” is protected by a PIN or a key switch.



To unlock a protected function:

    Either:

For function protected by PIN: When switching on or logging in the transmitter, enter the correct PIN for PIN level 1 or PIN level 3. See Entering the PIN.

Or:

For function protected by key switch: Insert the key in the switch and turn it. See Operating additional functions on the crane using key switches.

●   The protected function is unlocked.

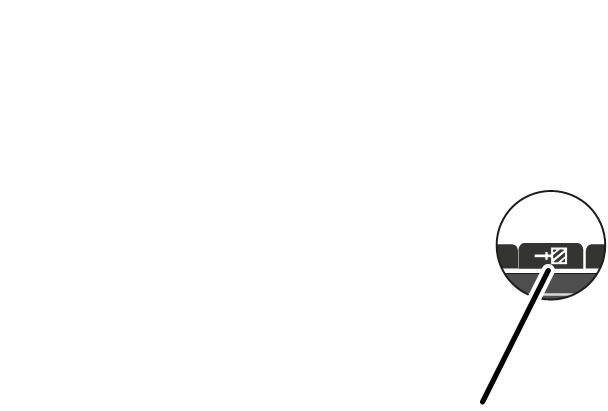

●   The direct access button has a black background. The protected function “Override travel limit switch” can now be used.





To lock a protected function:

    Either:

For function protected by PIN: Log out or switch off transmitter. When switching on or logging in, the correct PIN for PIN level 1 or PIN level 3 must be entered again. See Entering the PIN.

Or:

For function protected by key switch: Turn the key switch and pull it out.

●   The protected function is locked.

●   The direct access button has a white background. The protected function “Override travel limit switch” is now unavailable.



Override travel limit switch
