Logging out and switching off the transmitter



Logging out the transmitter

─     With tandem control system: To allow another transmitter to operate the crane in tandem operation, the transmitter must be logged out. Simply switching off a logged-in transmitter or waiting until it changes to “Standby” operating mode will not suffice.

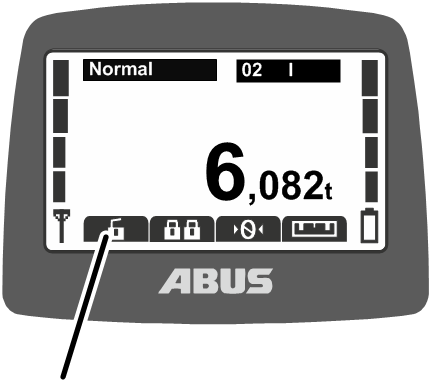

Direct access button “Log out”



*    Either:

Press the direct access button “Log out” (opened padlock).

Or:

Open the main menu with the MENU button,

open the menu “Crane operation”,

open the menu item “Log out”.

●   The transmitter logs out at the crane and reverts to the “Not logged in” operating mode.

●   With tandem control system: Another transmitter can now operate the crane in tandem operation.



Logging out the transmitter from the receiver

The transmitter can also be logged out of the receiver. This is particularly useful when a transmitter is to be logged out, but is currently unavailable (e.g. locked away).



*    Switch off the crane at the mains switch.

●   The entire crane, including the receiver, is switched off.

*    Wait at least 30 seconds.

●   The receiver loses the information as to which transmitter was logged in.

●   If the transmitter is switched on: Message 101 “Receiver disconnected” appears on the display and the transmitter logs out.

*    Switch on the crane at the mains switch.

●   Another transmitter can now log in to this crane.





Switching off the transmitter

To switch off the transmitter:

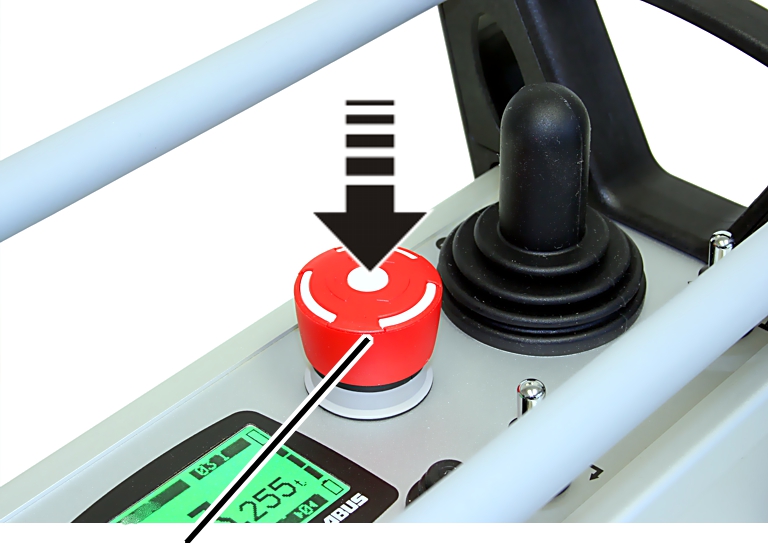

Stop button



*    Press the stop button.

●   The transmitter goes out.





In the event of extended downtimes:

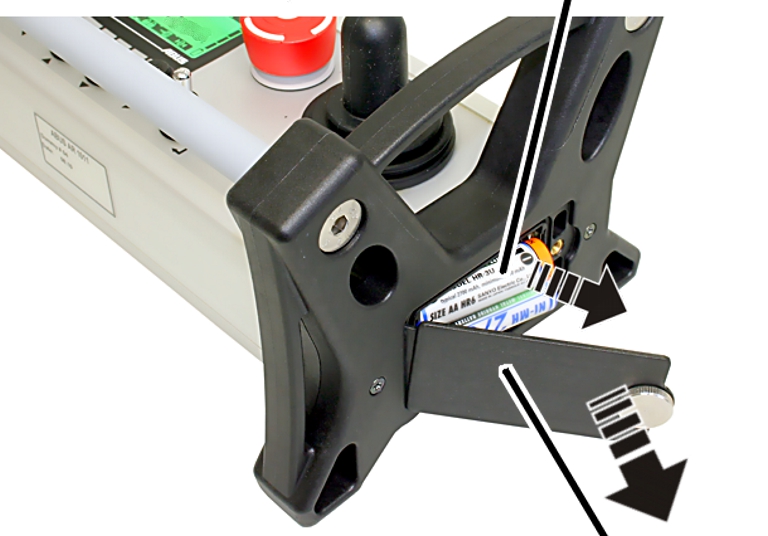

Rechargeable batteries



Battery compartment cover

*    Unscrew the cover of the battery compartment and open it.

*    Remove the rechargeable batteries.

*    Close the battery compartment cover and screw it into place.
