The illustrations show the installation of the receiver on the end carriage of a single girder travelling crane. The installation on other overhead travelling cranes does not essentially differ.

    Attach the mount to the end carriage on which the crane panel is installed.

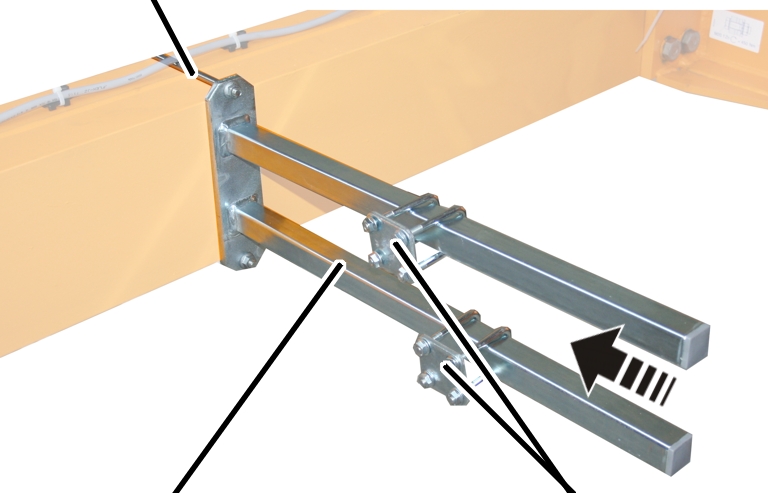

    Bolt the mount onto the threaded bracket.

    Slide on the pipe clamps (2x) and secure them.

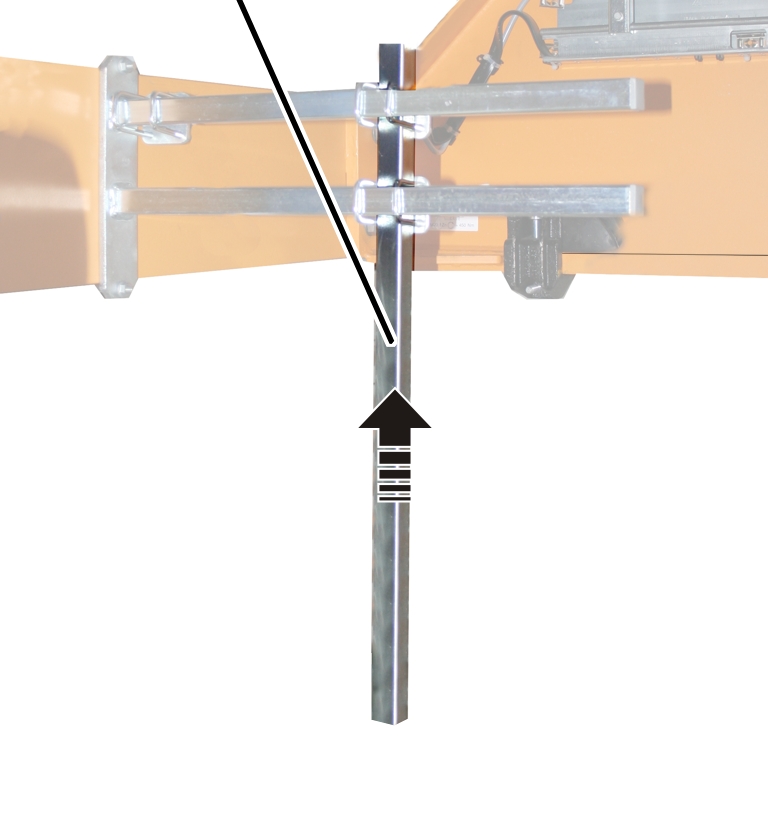

    Screw the vertical square tube onto the mount using pipe clamps (2x). 15 Nm.

    Hold the receiver on the square tube.

    Insert one threaded bracket each through the top and bottom of the housing.

    Insert one plate onto each threaded bracket from the rear side.

    Tighten the threaded bracket with the rib nuts M8 (2 x per threaded bracket). 15 Nm.
